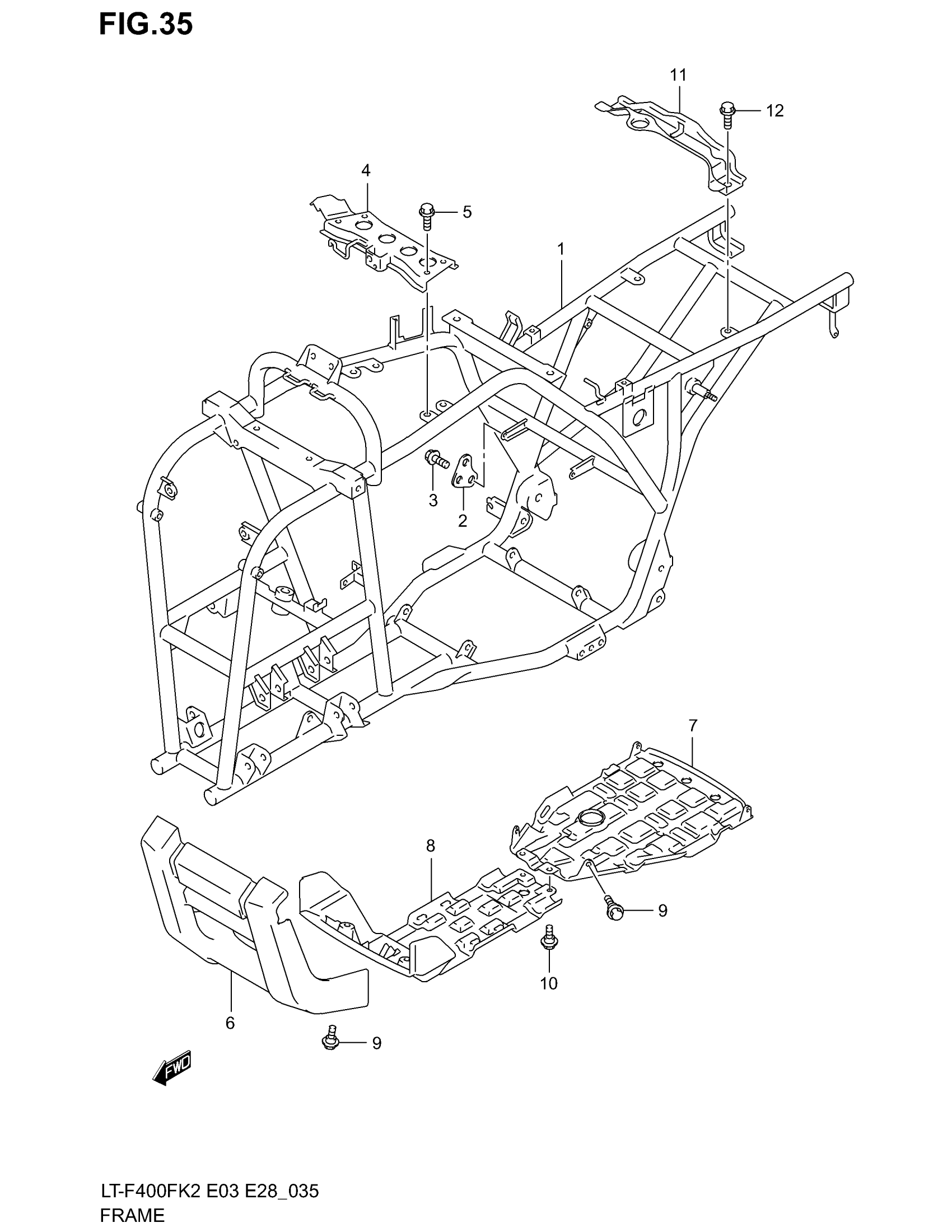

Suzuki LT-F400F (2002) FRAME Diagram

#

Description
Price

1

FRAME COMP, MT This part replaces 41100-38F30-019.

41100-38FF1-019

Unavailable

2

PLATE, ENG MTG REAR RH This part replaces 41981-38F00.

41981-38FA0

$3.93

3

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

4

BRACKET, ENGINE MOUNT UPPER

41990-38F00

Unavailable

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

PROTECTOR, FRONT This part replaces 42521-38F00.

42521-38F10

Unavailable

7

PROTECTOR,ENGINE This part replaces 42511-38F00.

42511-38F04

$28.32

8

PROTECTOR, MIDDLE

42561-38F00

$35.07

9

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

10

BOLT, PROTECTOR

09111-06072

$2.03

11

PLATE, BATTERY This part replaces 41560-38F00.

41560-38FA0

$9.94

12

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32
