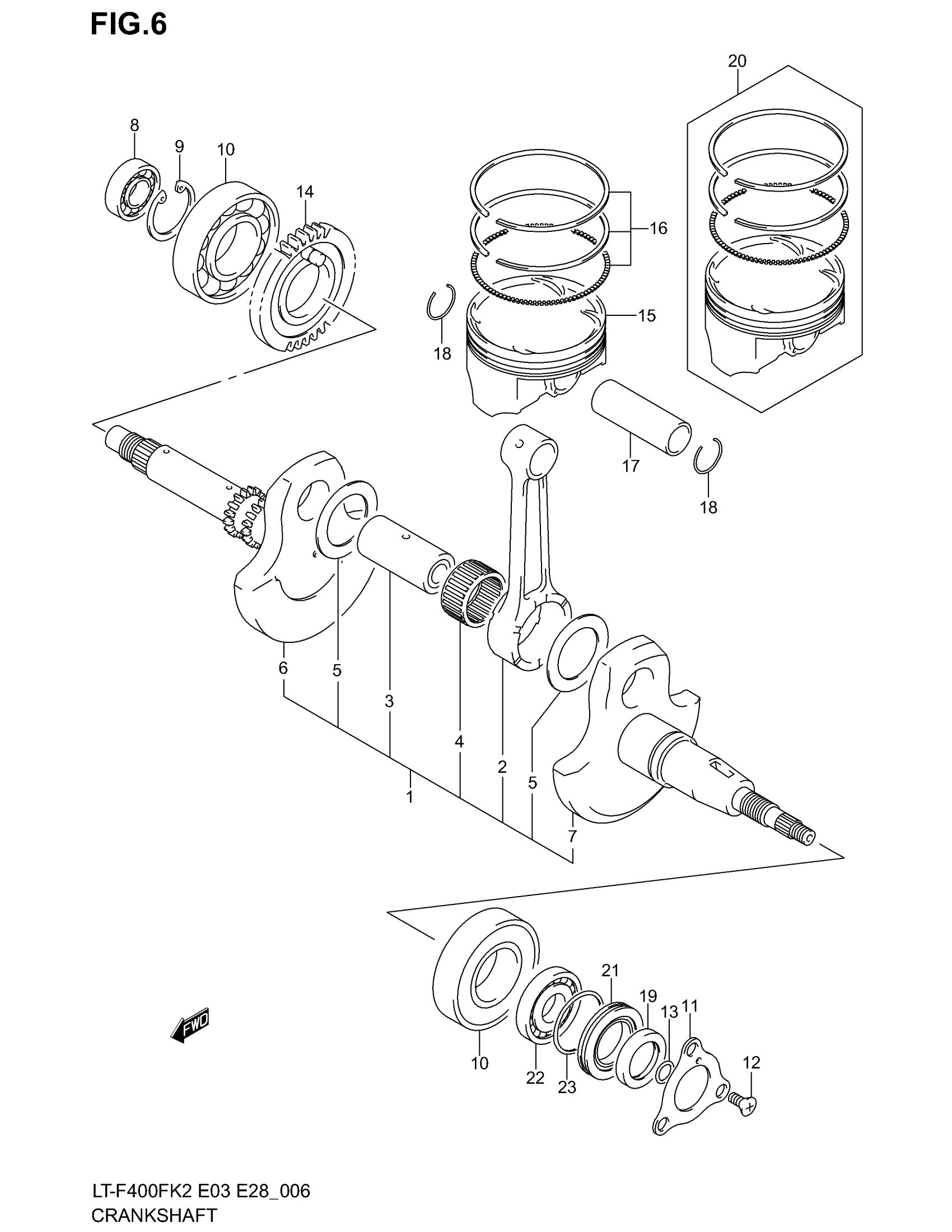

Suzuki LT-F400F (2002) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | Includes Item(s) 2 - 7 This part replaces 12200-38F50.

12200-38851

Unavailable

2

ROD, CONNECTING

12161-14D00

$150.35

3

PIN, CRANK

12210-14D03

$86.13

4

BEARING (34X43X22)

09263-34005

$80.87

5

WASHER

09160-34003

$8.62

6

CRANKSHAFT SET, RH This part replaces 12220-38F50.

12220-38851

Unavailable

7

.CRANKSHAFT, LH This part replaces 12261-38F51.

12261-38F60

Unavailable

8

BEARING, RH (15X35X11)

09262-15014

$26.60

9

CIRCLIP This part replaces 08331-41356.

08331-41359

$2.26

10

BEARING (35X72X17) This part replaces 09262-35039.

09262-35038

$46.10

11

RETAINER, CRANKSHAFT OIL SEAL LH

12541-46510

$8.77

12

SCREW, RETAINER LH

09126-06011

$2.03

13

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

14

GEAR, CRANK BALANCER DRIVE

12661-38F01

Unavailable

15

PISTON

12111-38F21-0F0

$108.93

16

RING SET, PISTON (STD)

12140-38F10

$51.49

17

PIN,PISTON

12151-24A00

$22.03

18

CIRCLIP

09381-20004

$1.65

19

OIL SEAL (25X36X6)

09283-25094

$31.02

20

PISTON SET,OS0.5 (OS:0.5) | OPT

12100-38F21-050

$149.82

21

SPACER, RECOIL STARTER CUP BRG This part replaces 12359-44D00.

12359-44D20

$32.17

22

BEARING, RECOIL STARTER CUP

09262-25006

$25.54

23

O RING

09280-44007

$11.98
