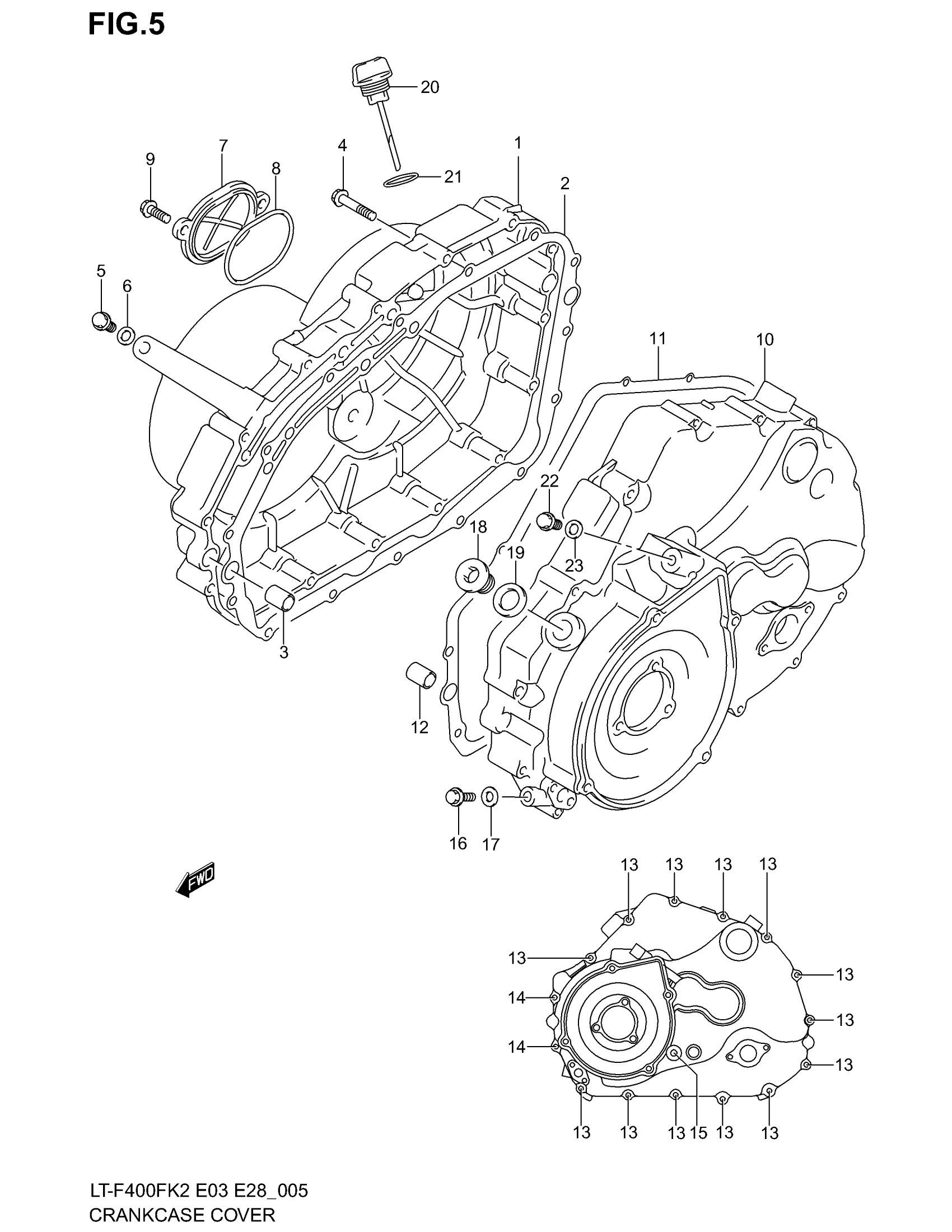

Suzuki LT-F400F (2002) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11341-38F10.

11341-38F11

$302.87

2

GASKET

11482-38F10

$21.96

3

PIN

04211-13189

$2.19

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

6

GASKET, OIL GALLERY PLUG

09168-06023

$2.35

7

CAP,INSPECTION

11175-47D00

$24.10

8

.O RING,INSPECTION CAP

11177-14D01

$4.60

9

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

10

COVER, MAGNETO

11351-38F10

Unavailable

11

GASKET

11483-38F10

$23.83

12

PIN

04211-13189

$2.19

13

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

14

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

15

BOLT, (L:140)

09103-08040

$5.52

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

17

GASKET

09168-08029

$2.32

18

PLUG, T.D.C CHECK

09248-16012

$4.64

19

GASKET, T.D.C CHECK

09168-16002

$1.91

20

GAUGE,OIL LEVEL

11971-38F00

$9.78

21

O RING, OIL LEVEL GAUGE

09280-17003

$1.65

22

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

23

GASKET, OIL GALLEY PLUG

09168-06023

$2.35
