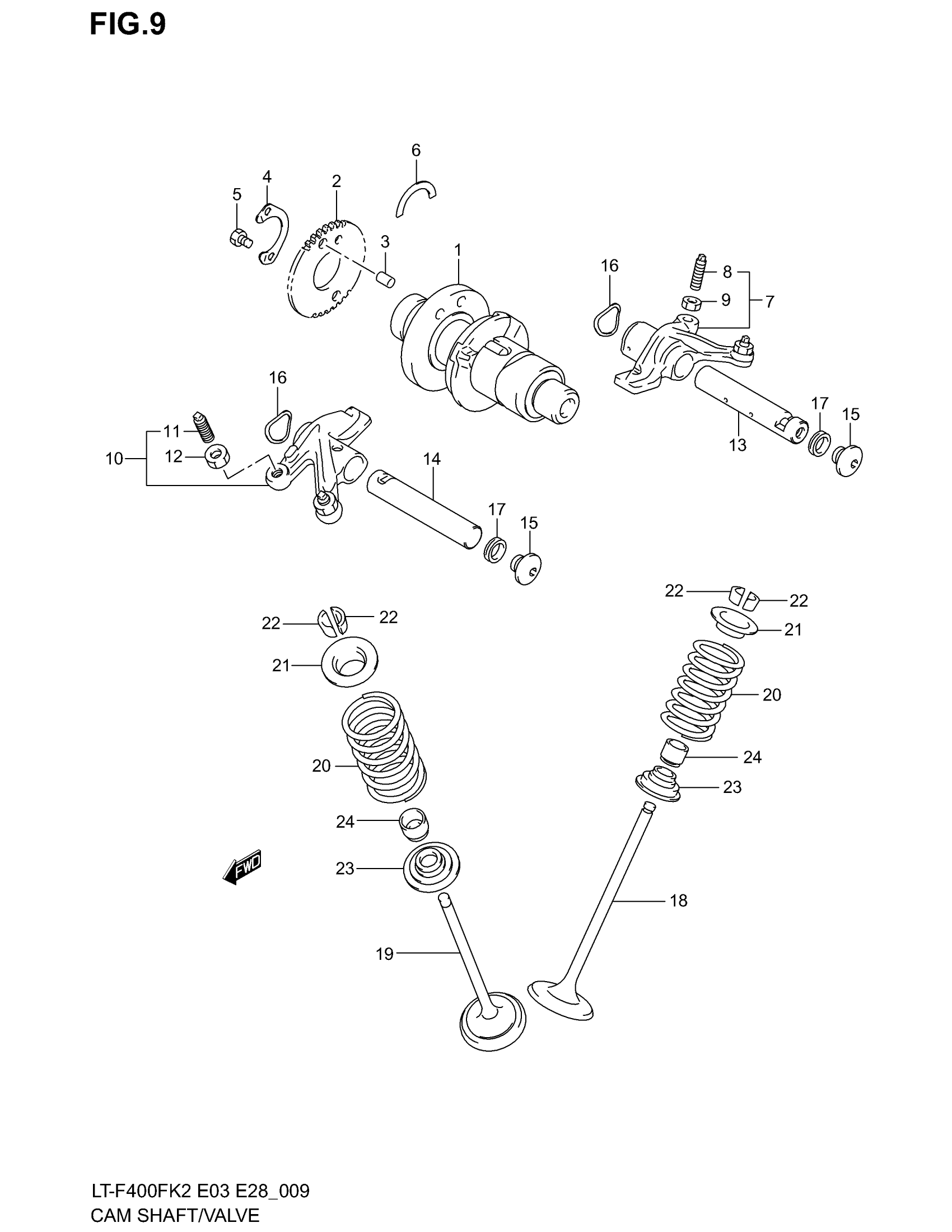

Suzuki LT-F400F (2002) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT This part replaces 12710-38F00.

12710-27H00

$474.33

2

SPROCKET, CAM DRIVE

12741-38F00

$47.40

3

PIN

09261-05005

$1.49

4

WASHER,SPROCKET

12747-44B00

$2.72

5

BOLT (6X10.5)

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-15F00.

12840-15G00

$90.28

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12

12850-14D50

$98.00

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$30.93

14

SHAFT, ROCKER ARM EXHAUST

12871-14D50

$28.27

15

PLUG, ROCKER ARM SHAFT

09248-14011

$2.98

16

WASHER

09164-12018

$1.49

17

GASKET

09168-14002

$2.26

18

VALVE,INTAKE

12911-14D10

$38.13

19

VALVE,EXHAUST

12912-14D01

$60.40

20

SPRING VALVE

12921-03G00

$12.03

21

RETAINER, SPRING

12931-27A01

$8.42

22

COTTER, VALVE

12932-27A00

$2.26

23

SEAT,VALVE SPRING

12933-81400

$5.17

24

OIL SEAL

09289-05011

$6.32
