Partiron

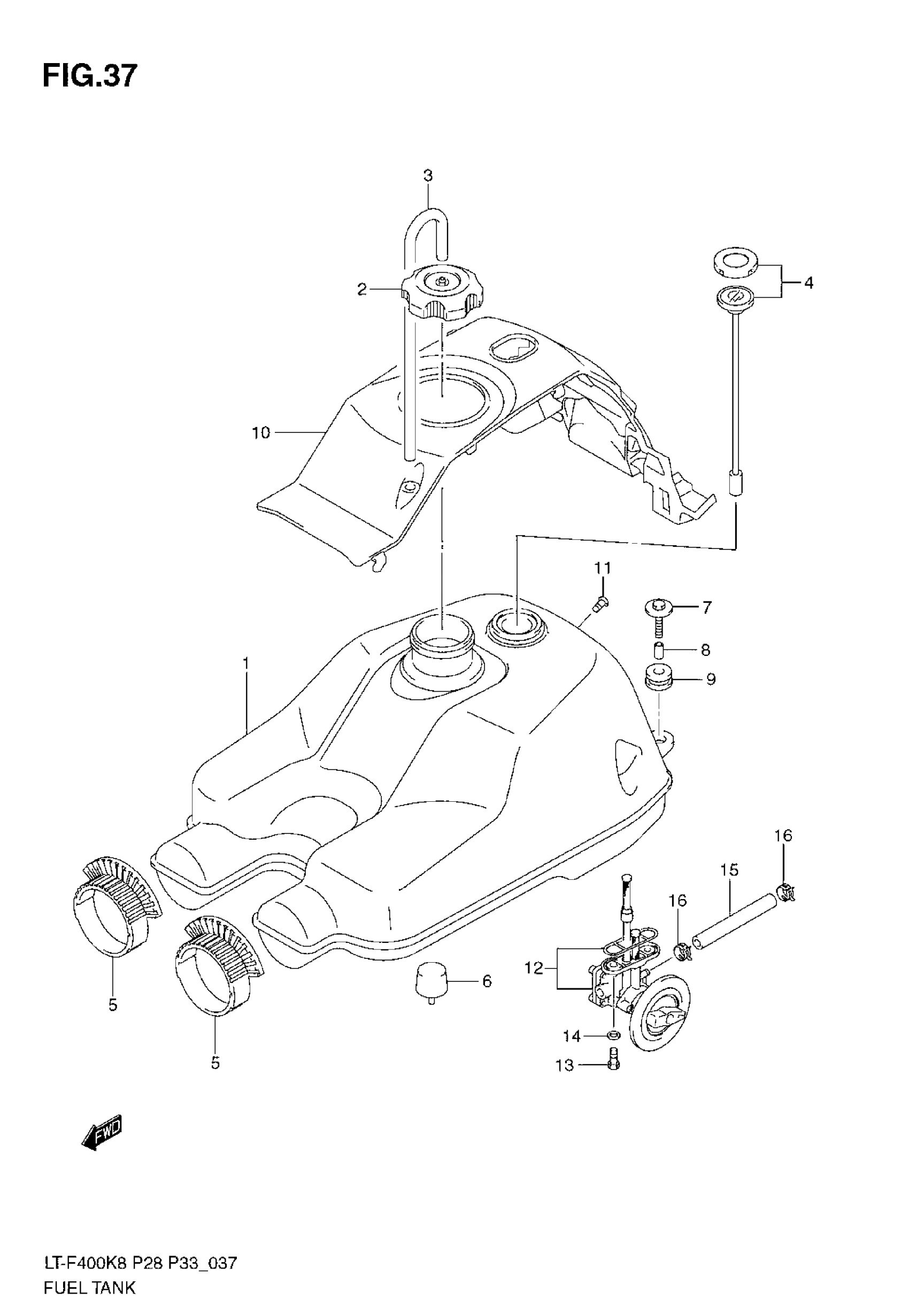

Suzuki LT-F400 (2008) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

44100-27H00

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-290.

44421-13ER0

$10.06

4

GAUGE ASSY,FUEL This part replaces 44580-27H00.

44580-27H01

$56.99

5

CUSHION,FUEL TANK FR This part replaces 44511-38F00.

44511-38F01

$19.57

6

CUSHION,FUEL TANK LWR This part replaces 44543-38F00.

44543-38F01

$6.99

7

BOLT

09116-06050

$2.26

8

SPACER

09180-06293

$2.58

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

10

COVER, FUEL TANK (BLACK)

44271-27H00-291

$39.98

11

BOLT

09139-05073

$3.85

12

COCK ASSY,FUEL This part replaces 44300-27H00.

44300-27H01

$161.49

13

SCREW

09103-06277

$2.28

14

GASKET

09168-06026

$3.10

15

HOSE, FUEL

44421-27H00

Unavailable

16

CLIP

09407-11407

Unavailable
