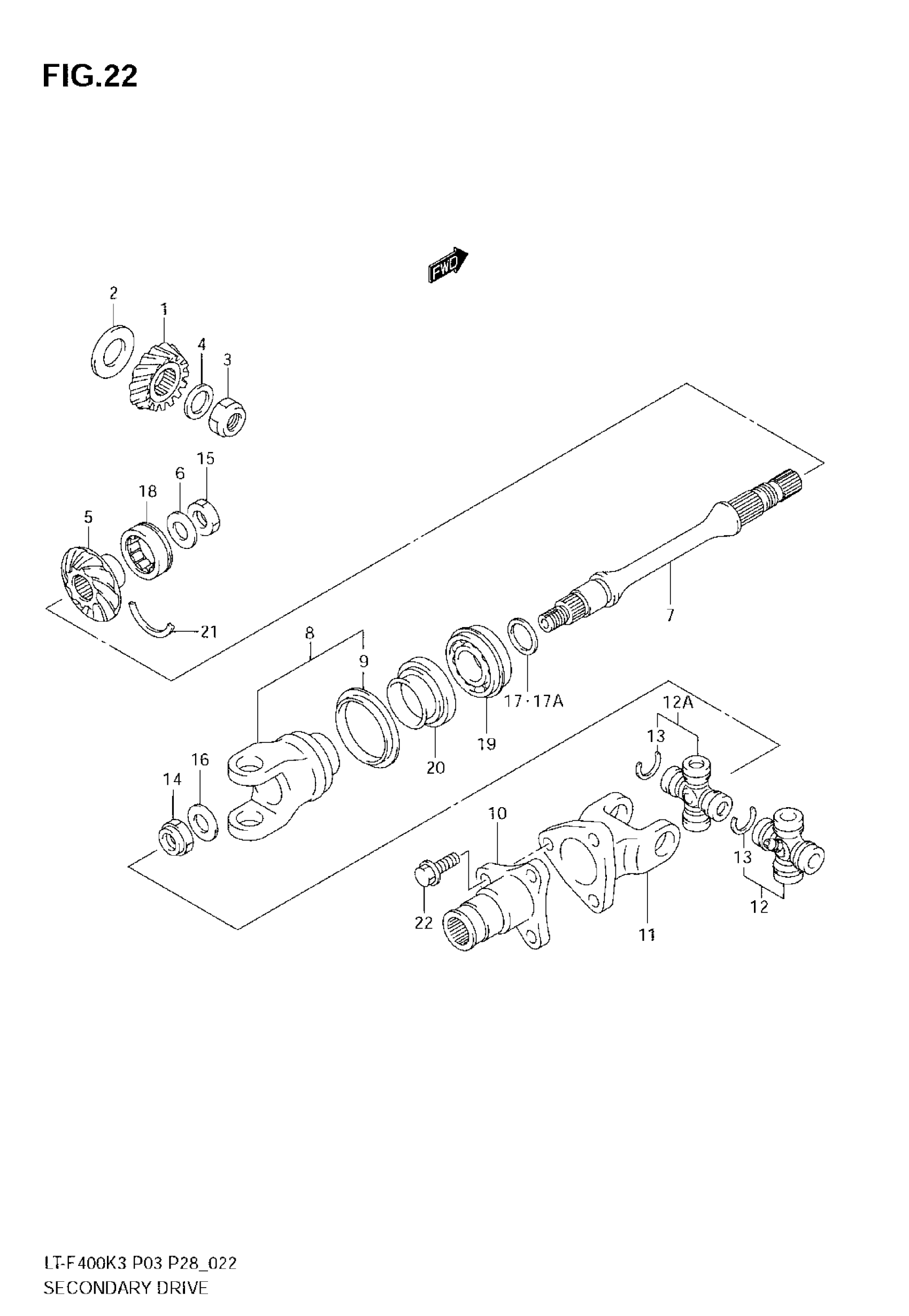

Suzuki LT-F400 (2007) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL | NT:15

24911-44D11

$223.23

2

SHIM SET,SEC DRIVE BEVEL | MODEL K3/K4/K5 T:0.25/0.30/0.35/0.90/0.95 /1.00/1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

$133.70

2

SHIM SET,SEC DRIVE BEVEL | MODEL K6/K7 T:0.25/0.30/0.35/0.55/0.58/ 0.60/0.63/0.65/0.68/0.70/ 0.73/0.75/0.78/0.80/0.83/ 0.85/0.88/0.90/0.93/0.95/ 0.98/1.00/1.03/1.05/1.08/ 1.10/1.13/1.15/1.18/1.20/ 1.23/1.25/1.28/1.30

24935-03811

$133.70

3

NUT, SEC DRIVE BEVEL GR

09140-20012

$4.32

4

WASHER, SEC DRIVE BEVEL GR | 20.1X32X10

09181-20223

$2.92

5

GEAR, SEC DRIVEN BEVEL

24921-44D10

$272.28

6

WASHER, SEC DRIVEN GEAR

08211-22362

Unavailable

7

SHAFT, SEC DRIVEN OUTPUT RR

24971-38F50

Unavailable

8

YOKE, RR DRIVE OUTPUT | Includes Item(s) 9

27130-03G00

$156.94

9

PLATE, OUTPUT

27592-38F00

$11.33

10

SHAFT, PROPELLER REAR

27150-38F00

$135.18

11

YOKE, PROP SHAFT JOINT REAR

27161-38F11

$167.68

12

JOINT SET, UNIVERSAL | MODEL K3/K4

27200-38810

$108.23

12A

JOINT SET,UNIVERSAL | MODEL K5/K6/K7; Includes Item(s) 13 This part replaces 27200-19810.

27200-19811

$59.54

13

CIRCLIP

09380-20016

$2.32

14

NUT, REAR DRIVE OUTPUT YOKE

09159-16003

$4.00

15

NUT, SEC DRIVEN GEAR

09159-22005

$27.75

16

WASHER, REAR OUTPUT FLANGE | 16X30X3

09160-16026

$5.00

17

SHIM, SEC DRIVEN | 25X34X0.6,MODEL K3/K4/K5

09181-25051

$3.50

17

SHIM, SEC DRIVEN | 25X34X0.65,MODEL K3/K4/K5

09181-25052

$3.50

17

SHIM (25X34X0.7) | 25X34X0.70,MODEL K3/K4/K5 This part replaces 09181-25053.

09181-25160

$2.93

17

SHIM, SEC DRIVEN | 25X34X0.75,MODEL K3/K4/K5

09181-25054

$3.50

17

SHIM 0.8 | 25X34X0.80,MODEL K3/K4/K5 This part replaces 09181-25055.

09181-25162

$2.42

17

SHIM, SEC DRIVEN | 25X34X0.85,MODEL K3/K4/K5

09181-25056

$3.42

17

SHIM 0.9 | 25X34X0.90,MODEL K3/K4/K5 This part replaces 09181-25057.

09181-25164

$2.42

17

SHIM, SEC DRIVEN | 25X34X0.95,MODEL K3/K4/K5

09181-25058

$3.50

17

WASHER, 5TH DRIVE | 25X34X1.00,MODEL K3/K4/K5 This part replaces 09181-25059.

09181-25167

$3.12

17

SHIM, SEC DRIVEN | 25X34X1.05,MODEL K3/K4/K5

09181-25060

$3.42

17

SHIM, SEC DRIVEN | 25X34X1.10,MODEL K3/K4/K5

09181-25061

$3.85

17

SHIM, SEC DRIVEN | 25X34X1.15,MODEL K3/K4/K5

09181-25062

$3.27

17

SHIM, SEC DRIVEN | 25X34X1.20,MODEL K3/K4/K5

09181-25063

$3.77

17A

SHIM SET,SEC DRIVEN BEVEL | MODEL K6/K7 T:0.55/0.58/0.60/0.63/0.65/0.68/ 0.70/0.73/0.75/0.78/0.80/0.83/ 0.85/0.88/0.90/0.93/0.95/0.98/ 1.00/1.03/1.05/1.08/1.10/1.13/ 1.15/1.18/1.20/1.23/1.25/1.28/ 1.30/1.33/1.35/1.38/1.40

24945-03811

$111.58

18

BRG, SEC DRIVEN GEAR, M | 30X50X17

09263-30050

$57.07

19

BRG, SEC DRIVEN OUTPUT SFT RR | 25X52X20.6

09267-25014

$124.50

20

OIL SEAL, DRIVEN SFT, RR | 34X52X9

09283-34008

$20.72

21

RING, SEC DRIVEN BRG, M

09390-50002

$3.03

22

BOLT, PROP SHAFT REAR This part replaces 01550-10203.

01550-1020A

$3.05
