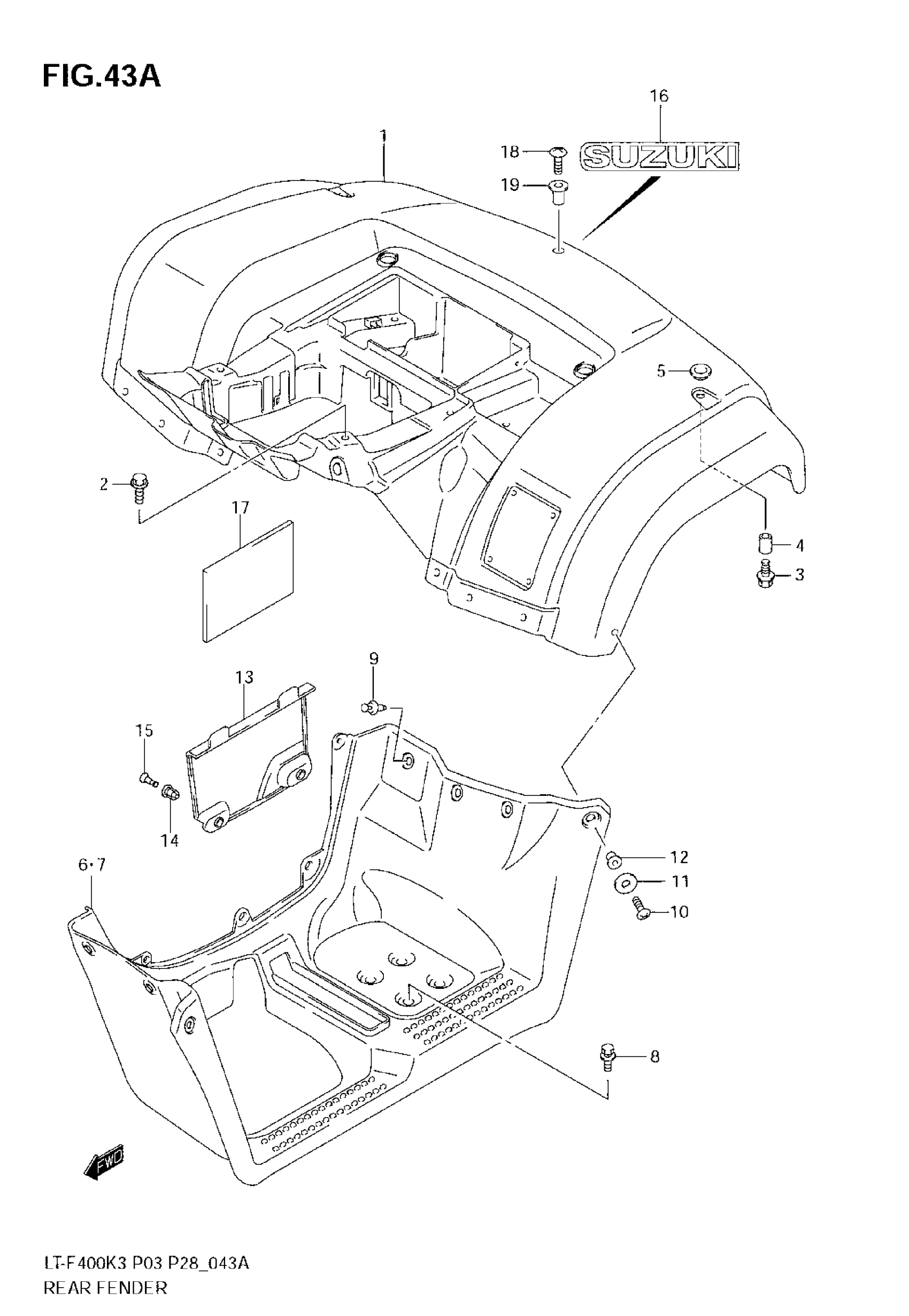

Suzuki LT-F400 (2007) REAR FENDER (MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

FENDER, REAR | MODEL K4 P33 This part replaces 63111-38F40-YT8.

63111-38F21-YT8

Unavailable

1

FENDER, REAR YE | MODEL K4/K5 This part replaces 63111-38F40-YU1.

63111-38F41-YU1

$574.00

1

FENDER,REAR | MODEL K6 This part replaces 63111-38F40-019.

63111-38F41-YLZ

Unavailable

1

FENDER, REAR | MODEL K6/K7 This part replaces 63111-38F40-YT9.

63111-38F41-YT9

Unavailable

1

FENDER, REAR (G | MODEL K6/K7 This part replaces 63111-38F40-YLG.

63111-38F41-YLG

$373.72

1

FENDER,REAR | MODEL K7 This part replaces 63111-38F40-YLZ.

63111-38F41-YLZ

Unavailable

2

BOLT, FRONT | MODEL K4/K5/K6

09116-06168

$2.50

2

BOLT, FRONT | MODEL K7

09116-06213

$3.15

3

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

4

SPACER

09169-06074

$7.95

5

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

$4.17

6

MUDGUARD,FOOTRE | MODEL K4/K5/K6 This part replaces 63331-38F11-291.

63331-38F13-291

Unavailable

6

MUDGUARD,FOOTRE | MODEL K7 This part replaces 63331-38F12-291.

63331-38F13-291

Unavailable

7

MUDGUARD,FOOTRE This part replaces 63341-38F11-291.

63341-38F12-291

Unavailable

8

BOLT (6X16.5) | MODEL K4/K5/K6 This part replaces 09111-06061.

09111-06094

$2.03

8

BOLT, GUARD | MODEL K7

09111-06095

$2.12

9

CLIP

09409-08335

$2.47

10

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

11

WASHER

09160-05046

$1.92

12

NUT

09159-05019

$7.14

13

LID

63332-38F10

$21.67

14

GROMMET

09409-08329

$2.40

15

PLUNGER

09409-08330

$2.38

16

EMBLEM, REAR (SILVER) | MODEL K4/K5/K6

68171-38F00-20H

$13.03

16

EMBLEM, REAR (SILVER) | MODEL K7

68171-38F00-YD8

Unavailable

17

SHIELD, REAR FENDER

63268-09F00

$26.28

18

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

19

NUT

09159-05019

$7.14
