2007 Suzuki LT-F400 Rear BOX Diagram

← All diagrams

Find the part on the Rear BOX diagram for your 2007 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

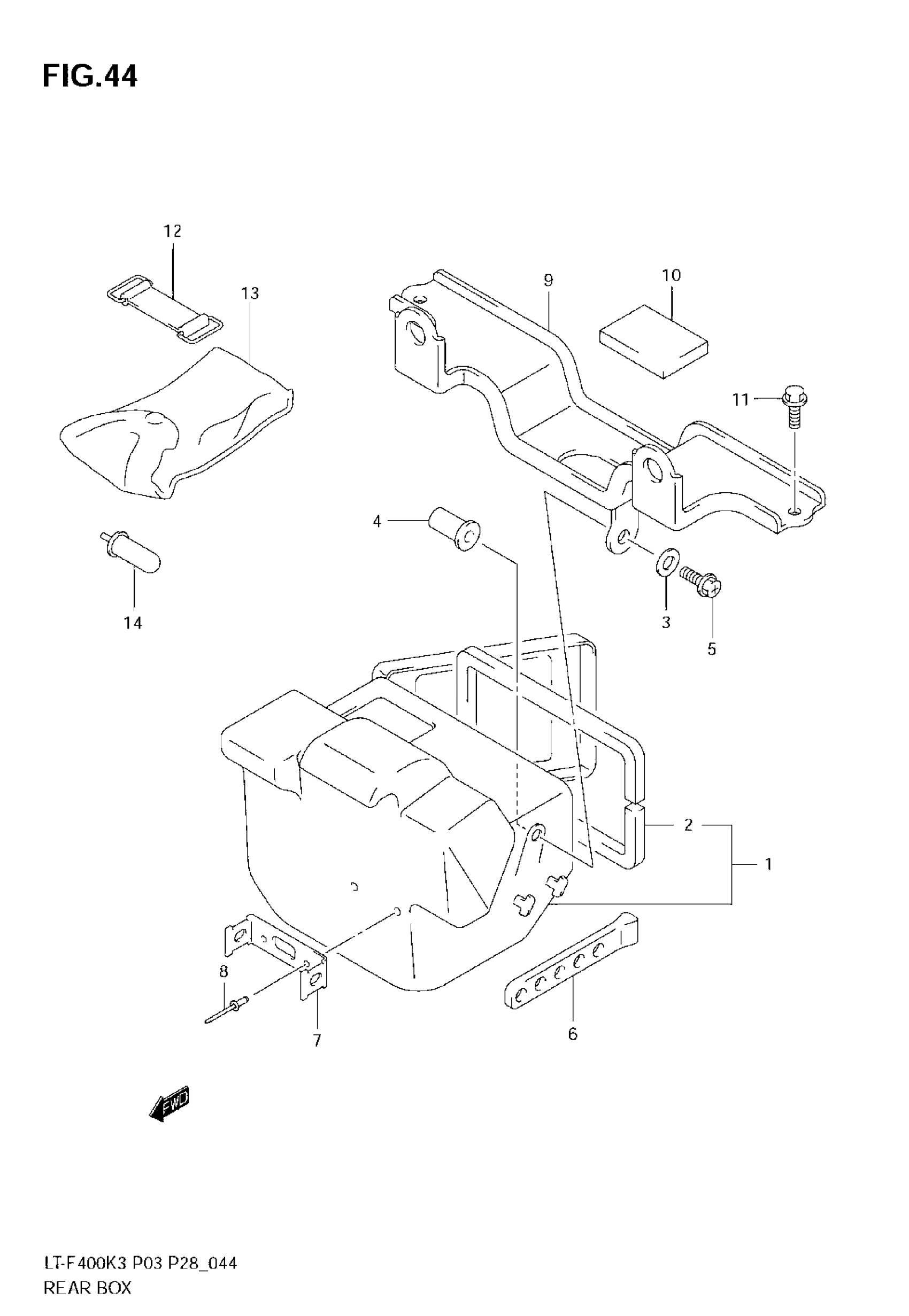

2007 Suzuki LT-F400 Rear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX REAR | MODEL K3/K4 This part replaces 93110-38FA0.

93110-38FA1

1
Out of stock

1

BOX REAR | MODEL K5/K6/K7; Includes Item(s) 2

93110-38FA1

1
Out of stock

2

MOLDING

93114-38FA0

1
Out of stock

3

WASHER

09160-05043

2
Out of stock

4

NUT

09159-05019

2
Out of stock

5

2

$2.85

In stock

6

BAND, BOX | MODEL K3/K4 This part replaces 93191-09F10.

93191-09F11

1
Out of stock

6

BAND, BOX | MODEL K5/K6/K7

93191-09F11

1
Out of stock

7

PLATE, CDI UNIT This part replaces 47413-38F00.

47413-38F01

1
Out of stock

8

RIVET

09229-04025

2
Out of stock

9

HOLDER, BOX

93140-38F02

1
Out of stock

10

CUSHION

44831-17B00

1
Out of stock

11

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

12

BAND, TOOL | MODEL K3/K4/K5/K6 This part replaces 09462-00073.

09462-00093

1
Out of stock

12

O RING(D:3.5,ID | MODEL K7 This part replaces 09280-61002.

09280-61004

1
Out of stock

13

TOOL ASSY This part replaces 09800-01007.

09800-01017

1
Out of stock

14

GAUGE ASSY,AIR PRESSUR

96200-18A02

1
Out of stock
← Label Rear Fender →
