2007 Suzuki LT-F400 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2007 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

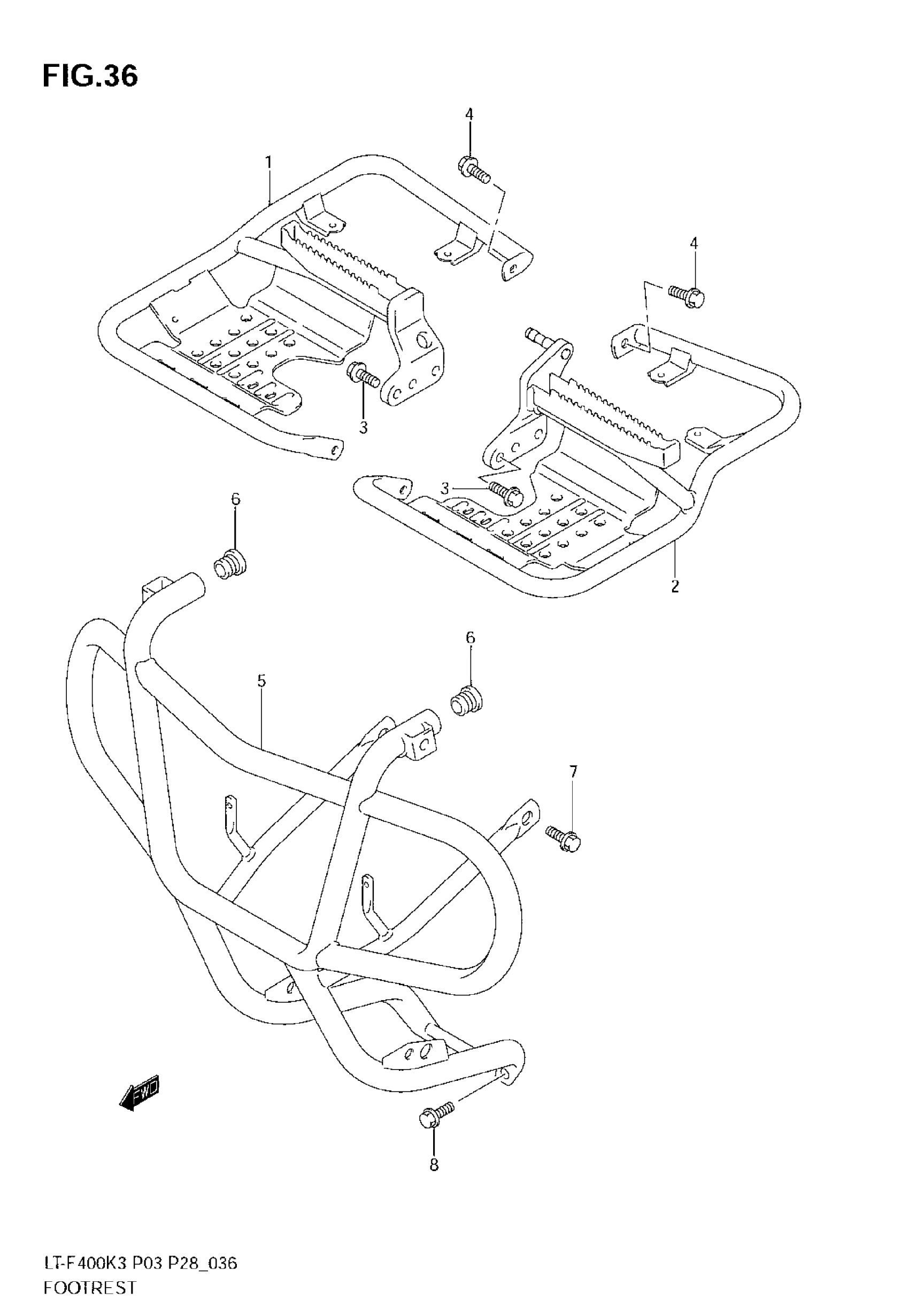

2007 Suzuki LT-F400 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST, FRONT RH | %F.NO.5SAAK45A3X102000 This part replaces 43510-38F10.

43510-38F30

1
Out of stock

1

FOOTREST, FRONT RH | F.NO.5SAAK45A3X102001%

43510-38F30

1
Out of stock

2

FOOTREST, FRONT LH | %F.NO.5SAAK45A3X102000 This part replaces 43520-38F10.

43520-38F30

1
Out of stock

2

FOOTREST, FRONT LH | F.NO.5SAAK45A3X102001%

43520-38F30

1
Out of stock

3

BOLT, FRONT

09103-10275

4
Out of stock

4

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

4
Out of stock

5

GRIP COMP, FRON | %F.NO.5SAAK45A3X102000 This part replaces 43990-38F00-019.

46700-38FA0-019

1
Out of stock

5

GRIP COMP, FRON | F.NO.5SAAK45A3X102001% This part replaces 43990-38FA0-019.

46700-38FA0-019

1
Out of stock

5

GRIP, FRONT (BLACK) | MODEL K5/K6/K7

46700-38FC0-019

1
Out of stock

6

CAP

43978-38F00

1
Out of stock

7

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

8

BOLT (8X16) This part replaces 09103-08283.

09103-08570

2
Out of stock
