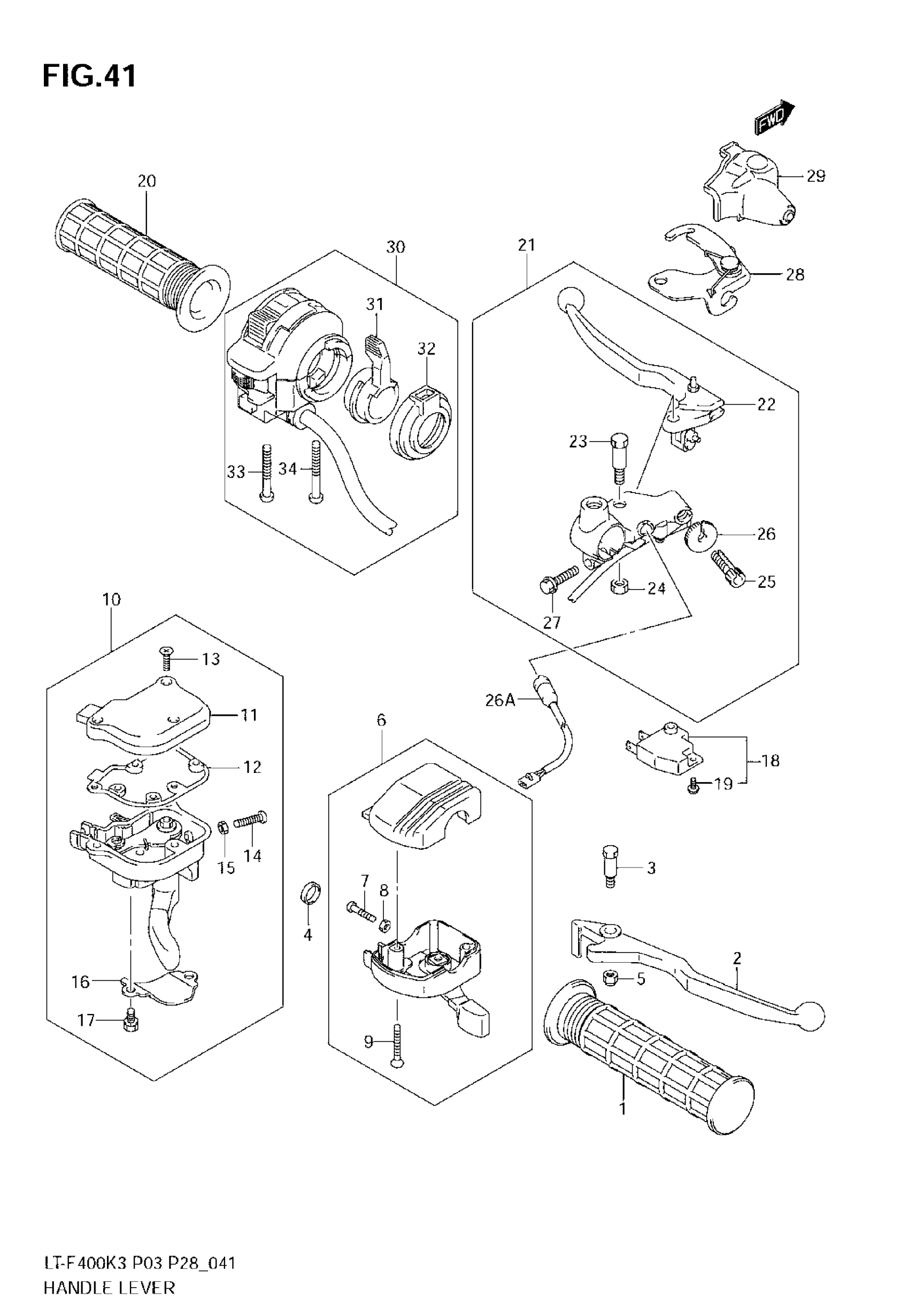

Suzuki LT-F400 (2007) HANDLE LEVER Diagram

#

Description
Price

1

GRIP | MODEL K3 This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

1

GRIP, HANDLE | MODEL K4/K5/K6/K7 This part replaces 57211-21G00.

57211-21G10

$10.15

2

LEVER, BRAKE | MODEL K3/K4

57421-39D10

$36.03

2

LEVER,FRONT BRAKE | MODEL K5/K6/K7

57421-39D20

$23.07

3

BOLT | MODEL K3/K4/K5/K6

09111-06075

$7.42

3

BOLT,BRAKE LEVER PIVOT | MODEL K7

57431-04F00

$6.28

4

SPACER | MODEL K3

57349-38F00

Unavailable

5

NUT,LEVER PIVOT

57433-09F00

$3.56

6

CASE ASSY, THROTTLE | MODEL K3; Includes Item(s) 7 - 9

57100-39DB0

$114.20

7

SCREW | MODEL K3

09125-05066

$1.65

8

NUT | MODEL K3

09140-05006

$2.19

9

SCREW | MODEL K3

02132-05307

$1.50

10

CASE ASSY, THROTTLE | MODEL K4

57100-38F50

$177.50

10

CASE ASSY, THROTTLE | MODEL K5/K6/K7; Includes Item(s) 11 - 17

57100-38F60

$152.07

11

CAP | MODEL K4/K5/K6/K7

57121-38F50

$53.18

12

GASKET | MODEL K4/K5/K6/K7

57157-38F50

$22.10

13

SCREW | MODEL K4/K5/K6/K7

57128-07G00

$10.17

14

SCREW | MODEL K4/K5/K6/K7 This part replaces 02112-05203.

02112-0520B

$1.84

15

NUT | MODEL K4/K5/K6/K7 This part replaces 08310-00053.

08310-0005A

$1.84

16

HOLDER | MODEL K4/K5/K6/K7

57126-07G00

$29.10

17

BOLT | MODEL K4/K5/K6/K7

57127-07G00

$11.95

18

SWITCH ASSY,FR BRAKE | MODEL K3/K4 This part replaces 57460-17C00.

57460-14J02

$38.46

18

SWITCH ASSY,FR BRAKE | MODEL K5/K6/K7; Includes Item(s) 19 This part replaces 57460-17C11.

57460-14J02

$38.46

19

SCREW

57465-17C00

$2.19

20

GRIP | MODEL K3 This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

20

GRIP, HANDLE | MODEL K4/K5/K6/K7 This part replaces 57211-21G00.

57211-21G10

$10.15

21

LEVER ASSY,REAR | MODEL K3/K4 This part replaces 57500-38FA0.

57500-38FA2

$92.00

21

LEVER ASSY,REAR | MODEL K5/K6/K7; Includes Item(s) 22 - 27 This part replaces 57500-38FC0.

57500-38FC1

$89.28

22

LEVER SET,CLUTC | MODEL K3/K4 This part replaces 57620-09840.

57620-09841

$50.78

22

LEVER SET | MODEL K5/K6/K7

57620-21821

$50.23

23

.BOLT,PIVOT

57431-09F00

$12.90

24

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

25

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

26

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

26A

SWITCH ASSY, STOP | MODEL K5/K6/K7

57560-38FA1

$68.60

27

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

28

.STOPPER,BRAKE LEVER

57790-38FA0

$45.37

29

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

$8.70

30

SWITCH ASSY,HAN | Includes Item(s) 31 - 34 This part replaces 37400-09F00.

37400-09F02

$149.91

31

LEVER, CHOKE

37571-19B01

$12.15

32

COVER, CHOKE

37576-19B01

$6.79

33

SCREW

02112-05407

$2.06

34

SCREW

02112-05457

$1.86
