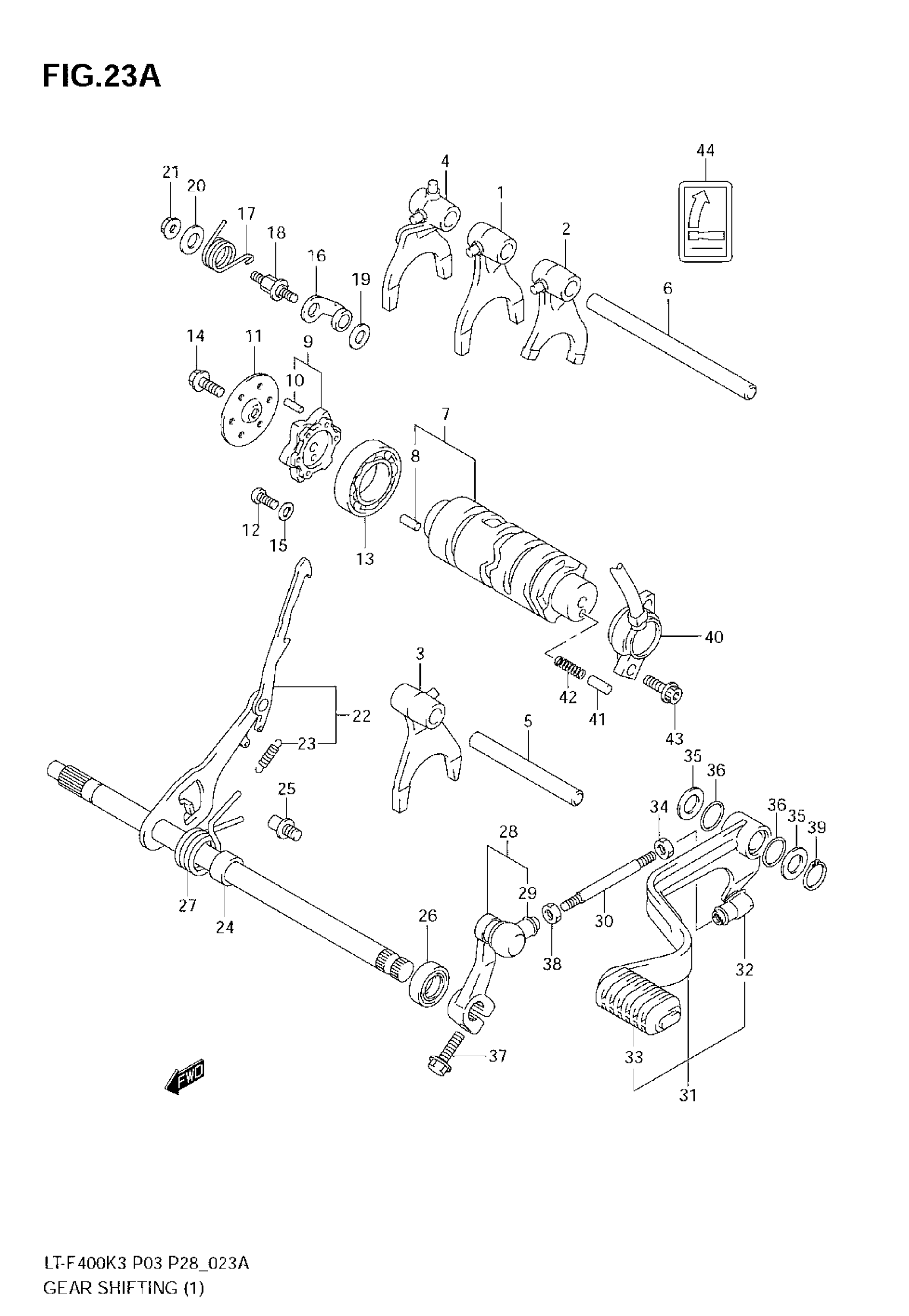

Suzuki LT-F400 (2007) GEAR SHIFTING (1)(MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-19B00

$87.70

2

FORK, GEAR SHIFT NO.2

25221-19B00

$74.56

3

FORK, GEAR SHIFT NO.3

25231-19B00

$87.70

4

FORK, GEAR SHIFT REVERSE

25240-38F60

$106.45

5

SHAFT, GEAR FORK NO.2

25411-13A01

Unavailable

6

SHAFT, GEAR FORK NO.1

25411-18900

$23.07

7

CAM,GEAR SHIFT | Includes Item(s) 8

25310-38F50

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

PLATE,GEAR SHIFT CAM | Includes Item(s) 10

25380-44D00

$34.20

10

ROLLER (4X13.8)

09261-04002

$1.72

11

GUIDE, GEAR SHIFT

25382-44D00

$7.20

12

SCREW (6X12)

09125-06110

$2.12

13

BEARING, GEAR SHIFT CAM | 25X47X8.0

09262-25006

$25.54

14

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

15

RETAINER, GR

08211-06165

Unavailable

16

STOPPER, GEAR SHIFT CAM

25350-24B00

$14.85

17

SPRING, GEAR SHIFT

25355-38F60

Unavailable

18

SUPPORT, GEAR SHIFT

25356-12C00

$17.37

19

WASHER

08211-06141

$1.59

20

WASHER

08211-06181

$1.80

21

NUT This part replaces 08316-10063.

08316-1006B

$2.50

22

SHAFT,GEAR SHIFT | Includes Item(s) 23

25510-38F60

$123.73

23

SPRING

25518-38F50

$5.17

24

SPACER, GEAR SHIFT

25516-44D00

Unavailable

25

STOPPER, GEAR SHIFT

25671-36A00

$5.40

26

OIL SEAL (14X22X6)

09283-14006

$6.70

27

SPRING

09444-26025

$5.33

28

ARM,GEAR SHIFT LINK | Includes Item(s) 29 This part replaces 25520-38F60.

25520-38F61

$74.28

29

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

30

ROD,GEAR SHIFT LINK

25525-26B10

$8.98

31

LEVER ASSY,GEAR | Includes Item(s) 32 - 33 This part replaces 25600-38F60.

25600-38F61

$102.70

32

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

33

RUBBER

25652-24401

$5.05

34

NUT

09140-06025

$2.05

35

WASHER (12X20X1.0)

09181-12167

$2.26

36

O RING (D:2.20,ID:11.8)

09280-12006

$1.56

37

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

38

.NUT

08310-00067

$2.13

39

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

40

BASE ASSY, NEUT SW TERM

37720-38F10

$123.98

41

CONTACT

09209-05011

$2.20

42

SPRING

09440-04010

$1.54

43

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.53

44

LABEL, GEAR SHIFT PATTERN

68392-24210

$2.92

44

LABEL, GEAR SHIFT PATTERN | E28

68392-24220

$3.25
