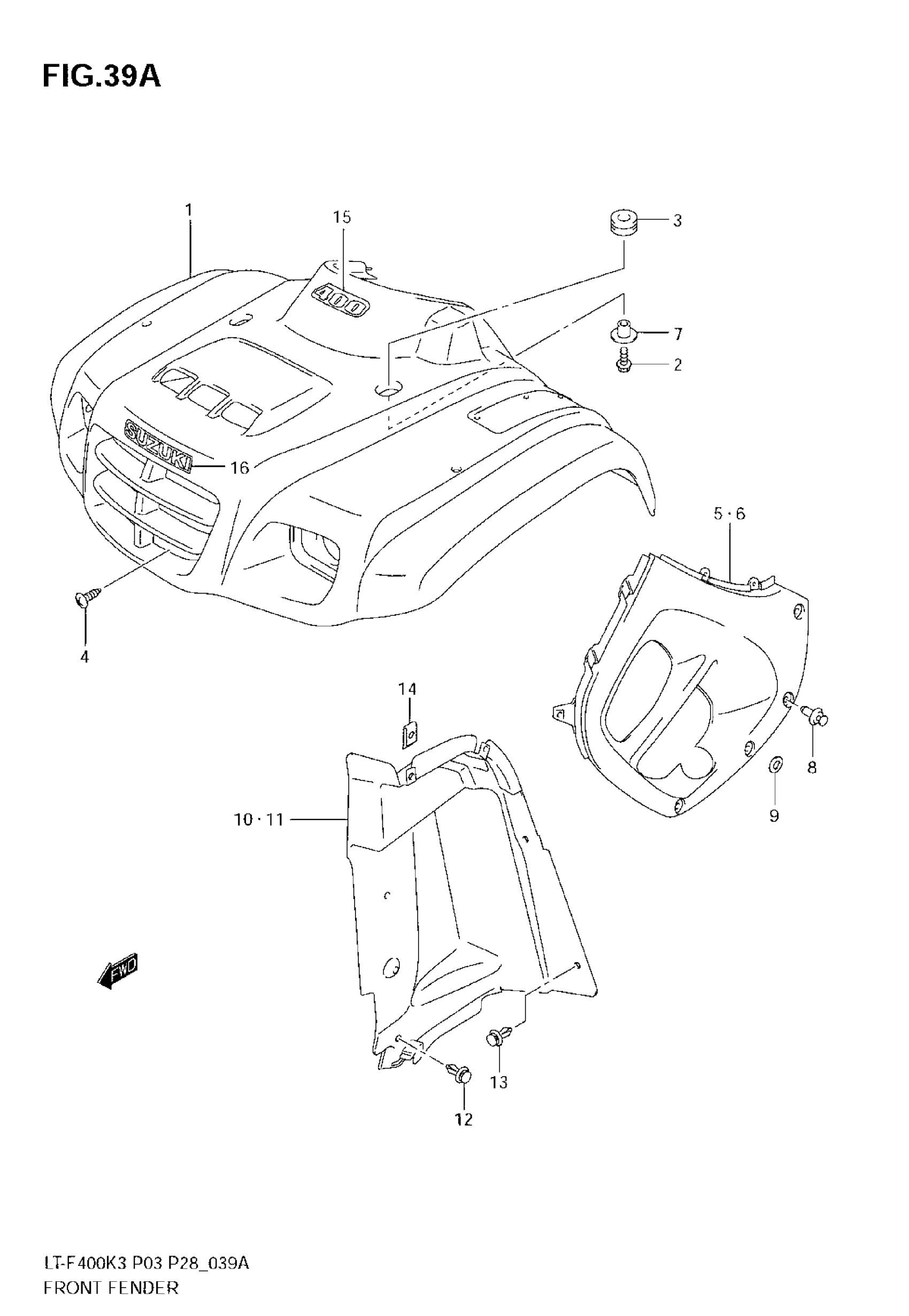

Suzuki LT-F400 (2007) FRONT FENDER (MODEL K4) Diagram

#

Description
Price

1

FENDER,FRONT | E33 This part replaces 53111-38F20-YT8.

53111-38F32-YT8

Unavailable

1

FENDER, FRONT Y | E28,E33 This part replaces 53111-38F20-YU1.

53111-38F21-YU1

Unavailable

2

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

3

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

$4.17

4

SCREW, FRONT CENTER

09139-06083

$2.26

5

COVER, SIDE RH (BLACK)

53112-38F10-291

$64.49

6

COVER, SIDE LH (BLACK)

53122-38F10-291

$33.92

7

WASHER

09169-06074

$7.95

8

CLIP, INNER

09409-07333

$2.31

9

WASHER, FOOTREST SIDE This part replaces 53341-38F00.

53341-38F01

$3.26

10

MUD FLAP,FENDER This part replaces 53411-38F01.

53411-38F02

$45.68

11

MUD FLAP,FENDER This part replaces 53421-38F00.

53421-38F01

$104.63

12

CLIP, SIDE FRONT

09409-08335

$2.47

13

CLIP, SIDE

09409-07333

$2.31

14

NUT, INNER

09148-05038

$1.97

15

EMBLEM, FRONT

68151-38F40-MW1

Unavailable

16

EMBLEM, FRONT LOWER (SILVER)

68171-38F00-20H

$13.03
