2002 Suzuki LT-F400 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2002 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

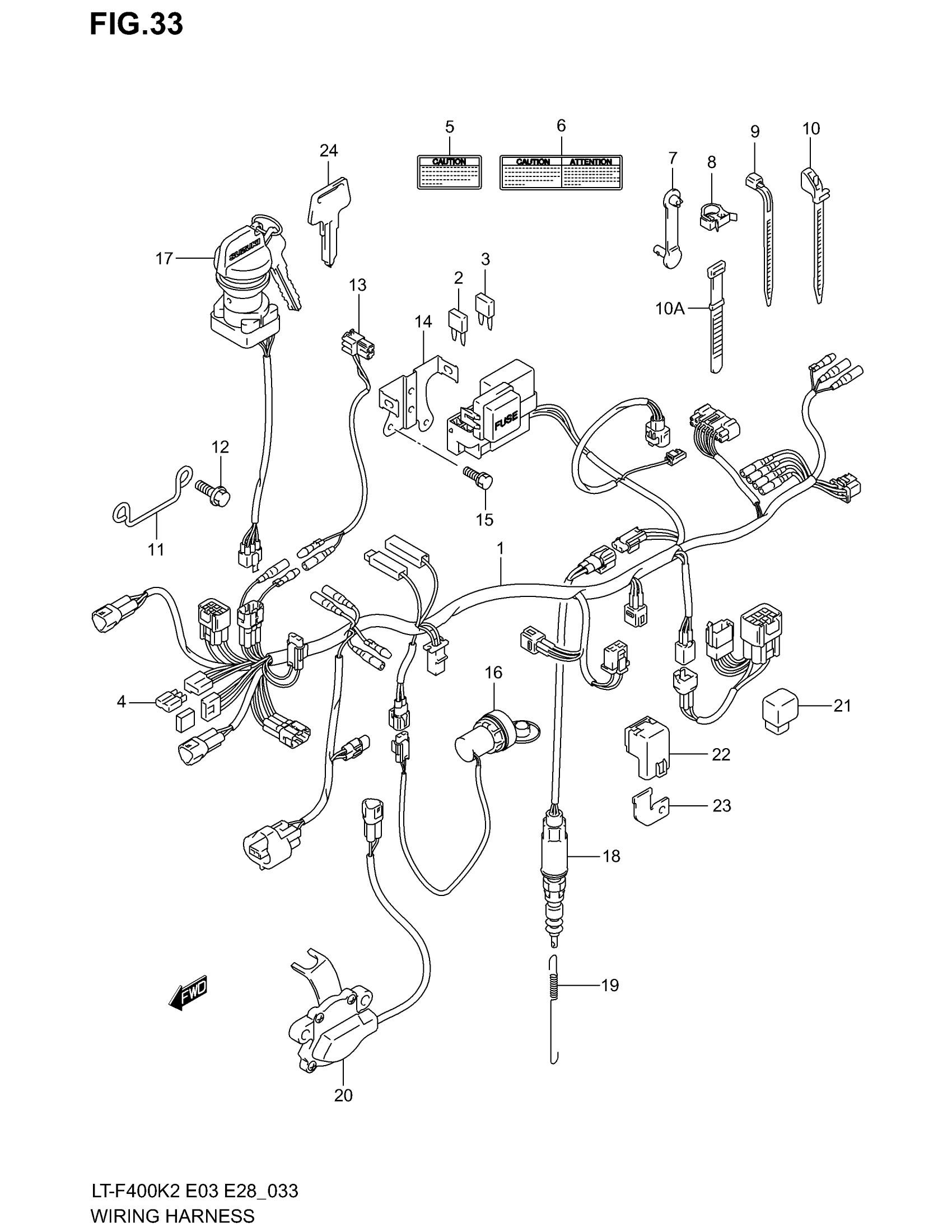

2002 Suzuki LT-F400 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS WIRING | Includes Item(s) 2 - 4

36610-38F20

1
Out of stock

2

.FUSE (5A)

09481-05501

1
Out of stock

3

FUSE (10A)

09481-10501

5
Out of stock

4

.DIODE This part replaces 36611-38A00.

36611-38A10

2
Out of stock

5

2

$8.52

In stock

6

LABEL, CAUTSON MAX AMP | E28

38852-09FB1

—
Out of stock

7

CLAMP, WIRING HARNESS

36651-48E00

2
Out of stock

8

CLAMP (ID:20)

09403-20403

2
Out of stock

8

CLAMP (ID:25)

09403-25401

1
Out of stock

9

CLAMP (L:125)

09407-14403

2
Out of stock

9

CLAMP (L:165)

09407-18402

2
Out of stock

10

CLAMP

09407-12407

—
Out of stock

10A

CLAMP

09407-12402

2
Out of stock

11

GUIDE, WIRING HARNESS

36619-38F00

1
Out of stock

12

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

13

WIRE,BRAKE SW L This part replaces 36856-35B00.

36856-35B01

1
Out of stock

14

BRACKET,FUSE BOX

36744-38F00

1
Out of stock

15

BOLT (5X10)

09117-05001

2
Out of stock

16

TERMINAL, POWER SOURCE

38850-09F00

1
Out of stock

17

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

1
Out of stock

18

SWITCH ASSY,STOP LAMP This part replaces 37740-38F00.

37740-38F01

1
Out of stock

19

SPRING, STOP LAMP

09443-06016

1
Out of stock

20

SWITCH ASSY, REVERSE

37600-38F00

1
Out of stock

21

RELAY,NEUTRAL START

38730-09F00

1
Out of stock

22

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

1
Out of stock

23

BRACKET, GEAR IN START

38741-09F00

1
Out of stock

24

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

24

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

24

KEY,BLANK (TYPE:E) | OPT

37146-19B20

1
Out of stock

24

KEY,BLANK (TYPE:F) | OPT

37146-19B30

1
Out of stock
