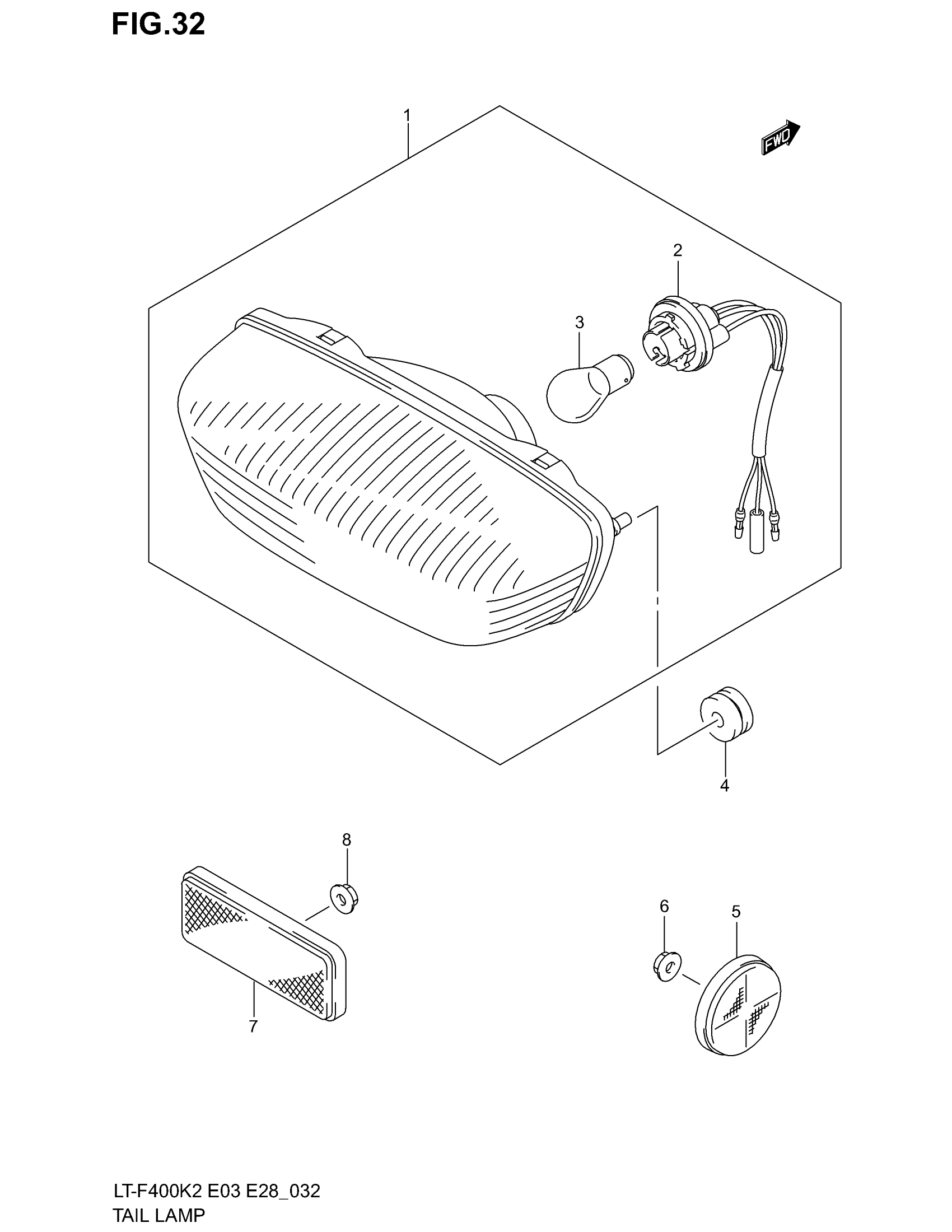

Suzuki LT-F400 (2002) TAIL LAMP Diagram

#

Description

Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 3 This part replaces 35710-03G00.

35710-03G20

$59.36

2

SOCKET & CORD ASSY

35718-03G00

$39.77

3

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.26

4

CUSHION

09320-06023

$2.68

5

REFLECTOR ASSY, REAR SIDE | E28

35970-14A10

$21.23

6

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.25

7

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$19.97

8

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.25
