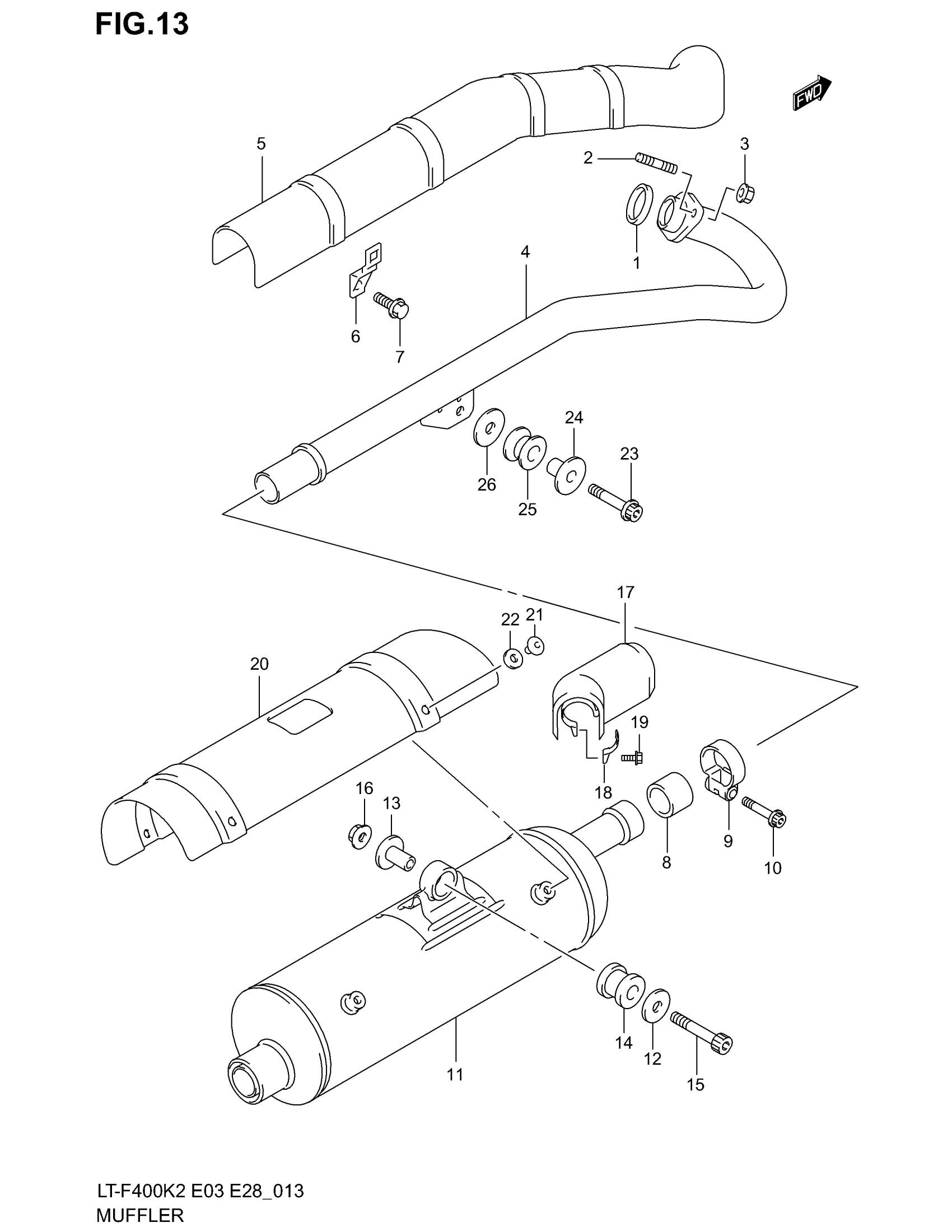

Suzuki LT-F400 (2002) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST

14181-18C00

$7.22

2

BOLT,STUD This part replaces 01421-08253.

01421-0825A

$2.03

3

NUT This part replaces 08319-31083.

08319-3108A

$2.32

4

PIPE, EXHAUST This part replaces 14150-38F00.

14150-38F10

$180.03

5

COVER, EXHAUST PIPE, FRONT

14180-38F10

Unavailable

6

CLAMP,EXH PIPE COVER This part replaces 14185-38F00.

14185-38F10

$5.88

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

8

CONNECTOR, MUFFLER

14771-38F00

$23.13

9

CLAMP, CONNECTOR

14459-38F00

$18.87

10

BOLT This part replaces 07120-08403.

07120-0840A

$3.42

11

BODY, MUFFLER This part replaces 14310-38F00.

14310-38F30

Unavailable

12

WASHER, MUFFLER SUPPORT

09160-08503

$2.50

13

SPACER, MUFFLER SUPPORT

09180-08152

$5.83

14

CUSHION, MUFFLER SUPPORT

09320-12048

$5.11

15

BOLT, MUFFLER SUPPORT This part replaces 07130-08453.

07130-0845B

$3.99

16

NUT This part replaces 08319-31083.

08319-3108A

$2.32

17

COVER, MUFFLER FRONT This part replaces 14790-38F00.

14790-38F10

$43.65

18

CLAMP,EXH PIPE COVER This part replaces 14185-38F00.

14185-38F10

$5.88

19

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

20

COVER,MUF RR This part replaces 14880-38F00.

14880-38F10

$58.65

21

GASKET, MUFFLER COVER

09168-06120

$2.92

22

SCREW, MUFFLER COVER

09139-06076

$2.42

23

BOLT, EXHAUST SUPPORT

09106-08133

$3.89

24

SPACER, EXHAUST SUPPORT

09180-08151

$5.18

25

CUSHION, EXHAUST SUPPORT

09320-12043

$7.98

26

WASHER, EXHAUST SUPPORT

09160-08135

$2.35
