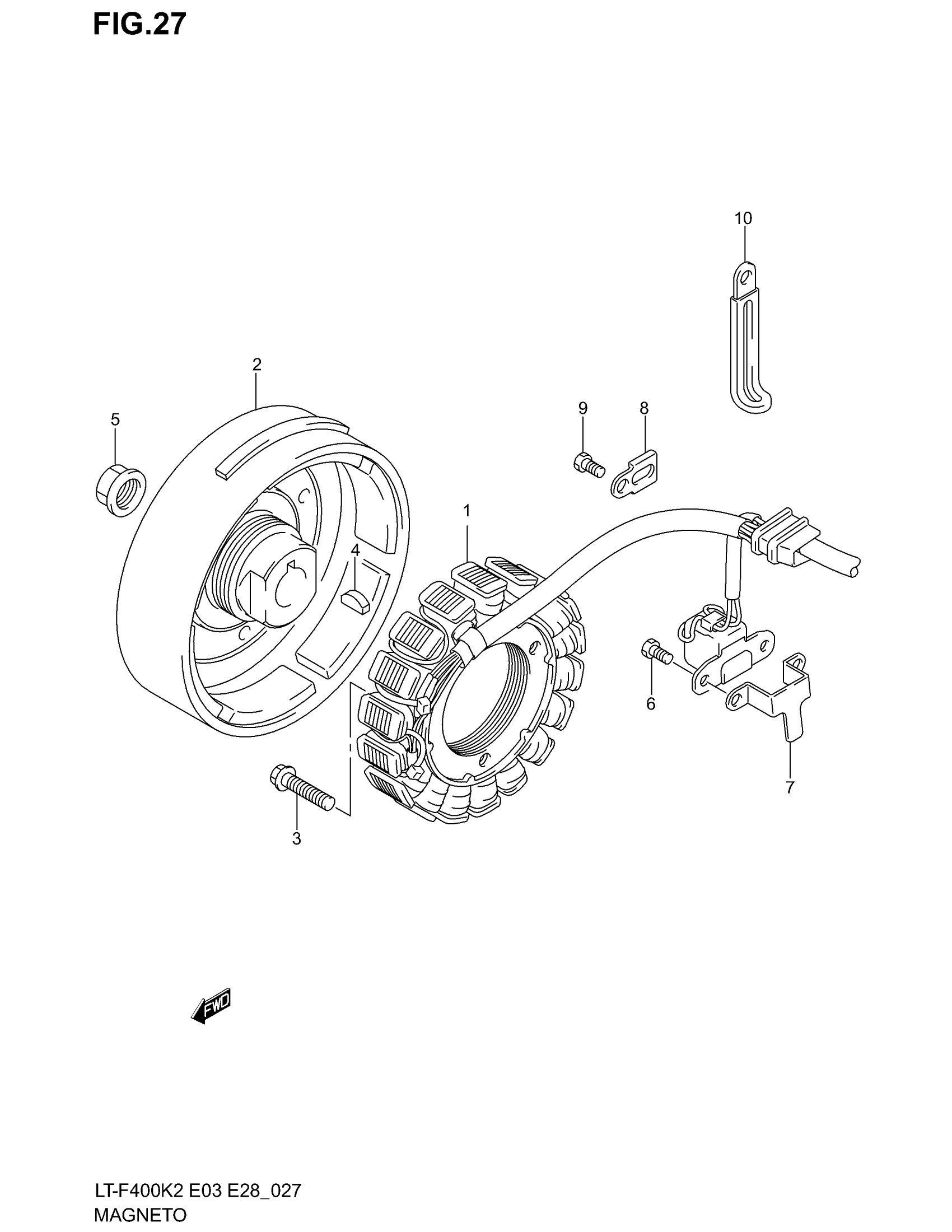

Suzuki LT-F400 (2002) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-38F00

$537.23

2

ROTOR This part replaces 32102-38F00.

32102-38F01

$449.17

3

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

4

KEY, MANGETO

08341-31059

$2.48

5

NUT, MAGNETO

31792-18A00

$11.87

6

BOLT, SENSOR (5X10)

09100-05019

$1.93

7

CLAMP, MAGNETO NO.1

31497-45000

$1.92

8

CLAMP, MAGNETO NO.2

32371-32E00

$6.30

9

BOLT, CLAMP NO.2 (5X10)

09100-05019

$1.93

10

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
