2002 Suzuki LT-F400 Handle Lever Diagram

← All diagrams

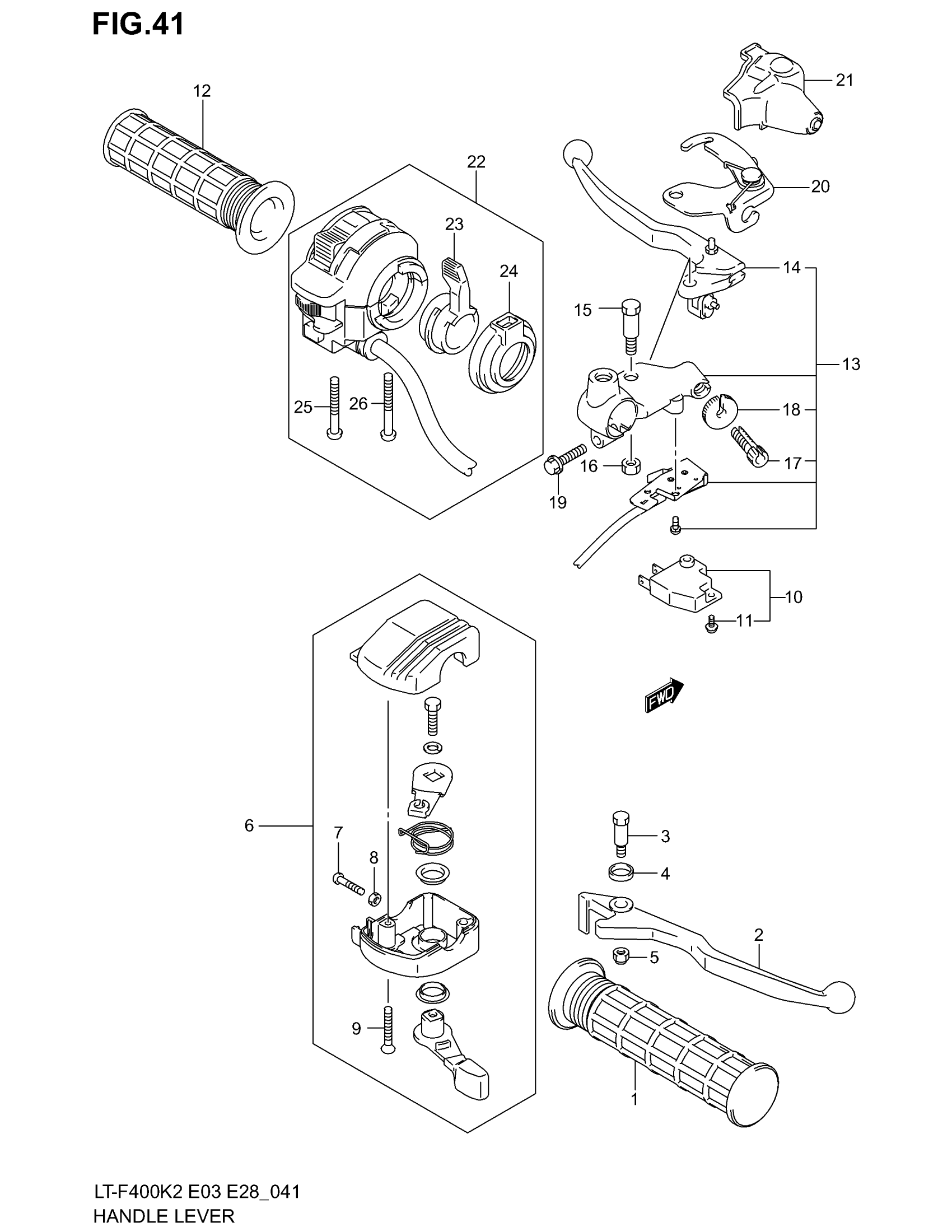

Find the part on the Handle Lever diagram for your 2002 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F400 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

1
Out of stock

2

LEVER, BRAKE

57421-39D10

1
Out of stock

3

BOLT

09111-06075

1
Out of stock

4

SPACER

57349-38F00

1
Out of stock

5

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

6

CASE ASSY, THROTTLE | Includes Item(s) 7 - 9

57100-39DB0

1
Out of stock

7

SCREW

09125-05066

1
Out of stock

8

NUT

09140-05006

1
Out of stock

9

SCREW

02132-05307

2
Out of stock

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

1
Out of stock

11

SCREW

57465-17C00

1
Out of stock

12

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

1
Out of stock

13

LEVER ASSY,RR B | Includes Item(s) 14 - 19 This part replaces 57500-09F00.

57500-09F02

1
Out of stock

14

1

$55.35

In stock

15

.BOLT,PIVOT

57431-09F00

1
Out of stock

16

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

19

..BOLT This part replaces 01547-06203.

01547-0620B

1
Out of stock

20

STOPPER, LEVER

57790-09F00

1
Out of stock

21

COVER, LEVER

57541-09F00

1
Out of stock

22

SWITCH ASSY,HAN | Includes Item(s) 23 - 26 This part replaces 37400-09F00.

37400-09F02

1
Out of stock

23

LEVER, CHOKE

37571-19B01

1
Out of stock

24

COVER, CHOKE

37576-19B01

1
Out of stock

25

SCREW

02112-05407

1
Out of stock

26

SCREW

02112-05457

1
Out of stock
