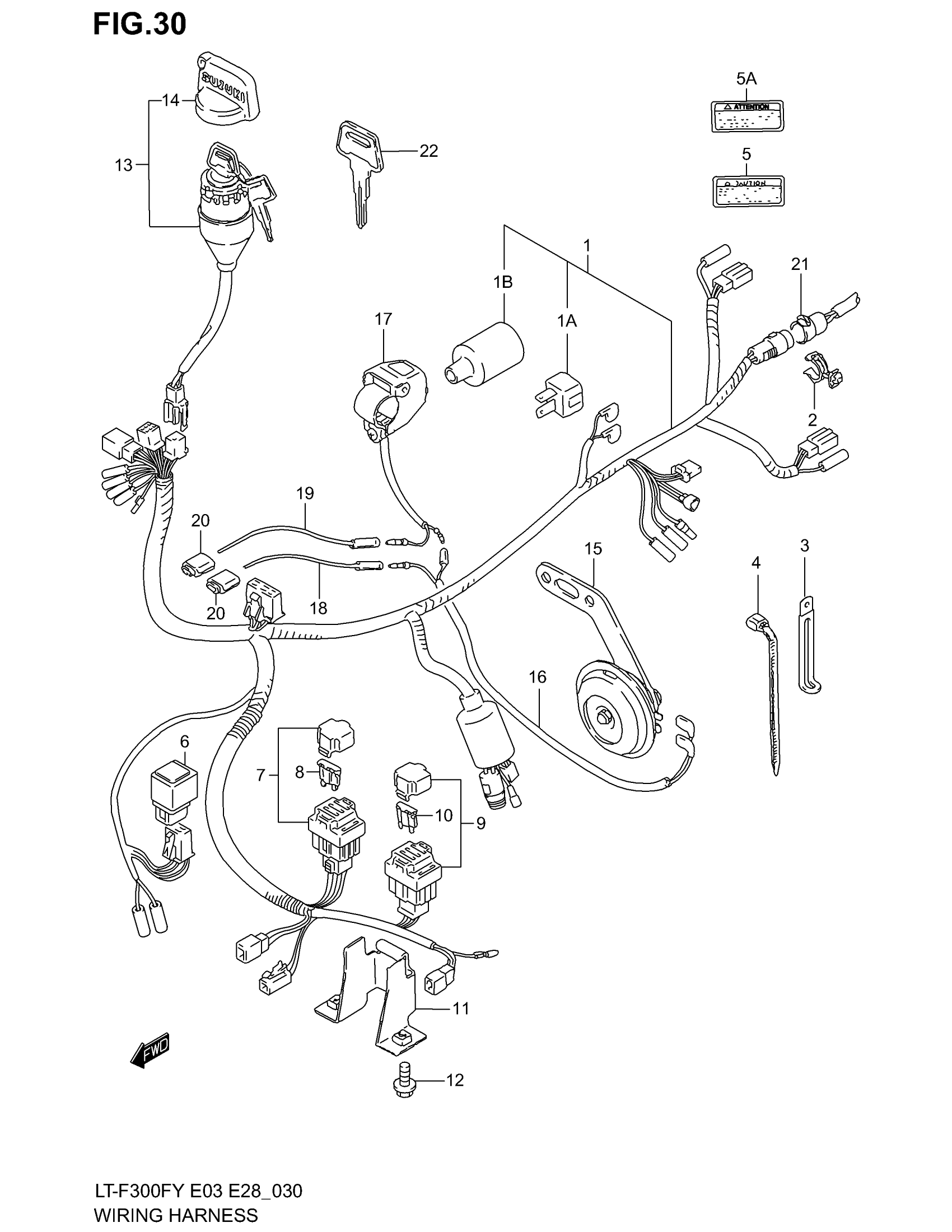

Suzuki LT-F300F (2002) WIRING HARNESS (MODEL X/Y) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL X

36610-39DE0

Unavailable

1

HARNESS, WIRING | MODEL Y; Includes Item(s) 1A - 1B

36610-39DN0

Unavailable

1A

DIODE

32800-16A00

$21.12

1B

CAP

36634-93910

$5.40

2

CLAMP

09403-16307

$2.77

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

4

CLAMP (L:125)

09407-14403

$2.24

4

CLAMP (L:165)

09407-18402

$2.21

5

LABEL, CAUTION MAX AMP

38852-19B10

Unavailable

5A

LEBEL, CAUTION MAX AMP | MODEL X/Y E28

38852-19B20

Unavailable

6

RELAY, NEUTRAL START

38730-19B00

$38.08

7

BOX ASSY, MAIN FUSE | Includes Item(s) 8

36740-24B01

$31.82

8

FUSE (20A)

09481-20101

$2.13

9

BOX ASSY, POWER SOURCE FUSE | Includes Item(s) 10

36740-04701

$25.08

10

FUSE (15A)

09481-15101

$2.77

11

HOLDER, ELECTRIC FRONT

47410-19B00

$14.00

12

BOLT (6X12) This part replaces 09118-06103.

09118-06055

$3.05

13

SWITCH ASSY,IGN | Includes Item(s) 14 This part replaces 37110-19B02.

37110-19B03

$142.68

14

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

15

NO DESCRIPTION AVAILABLE | OPT This part replaces 38500-19B02.

38500-09F01

Unavailable

16

LEAD WIRE, HORN | OPT

36852-19B00

Unavailable

17

SWITCH ASSY, HORN | OPT This part replaces 37830-18A00.

37830-27H00

$43.16

18

LEAD WIRE, SWITCH (ORANGE) | OPT

36851-19B00

Unavailable

19

LEAD WIRE, SWITCH | OPT

36851-19B10

Unavailable

20

CONNECTOR | OPT

36859-36590

$5.35

21

PLUG ASSY, POWER SOURCE | OPT

39602-18A00

Unavailable

22

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

22

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38
