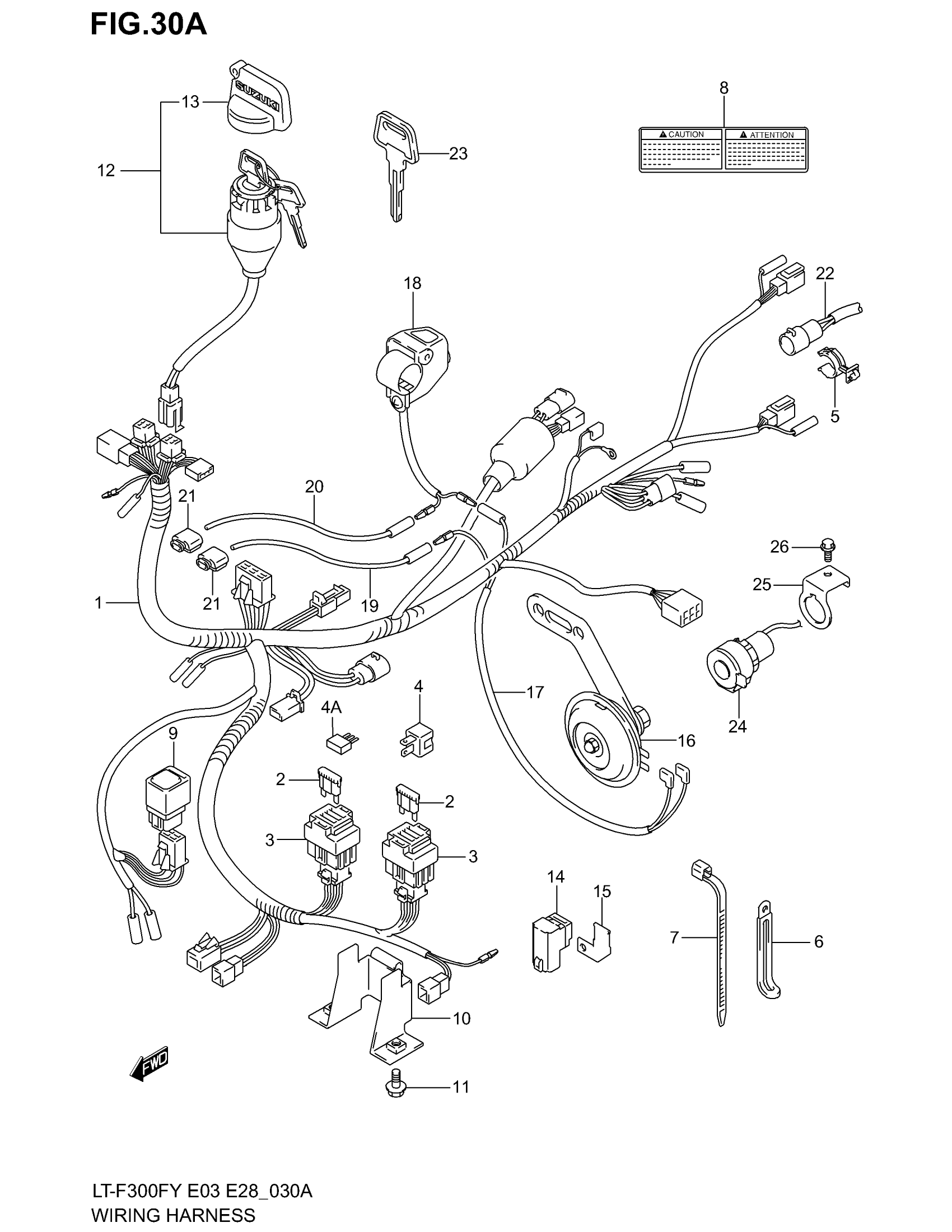

Suzuki LT-F300F (2002) WIRING HARNESS (MODEL K1/K2) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K1

36610-39DR0

Unavailable

1

HARNESS, WIRING | MODEL K2; Includes Item(s) 2 - 4A

36610-04G10

Unavailable

2

FUSE (5A)

09481-05101

$1.94

2

FUSE (20A)

09481-20101

$2.12

3

BAND, FUSE

36742-39D00

$19.15

4

DIODE | FOR OIL LAMP

32800-16A00

$23.07

4A

.DIODE | FOR NEUTRAL This part replaces 36611-38A00.

36611-38A10

$13.16

5

CLAMP | MODEL K1

09403-16307

$2.53

6

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

7

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:165)

09407-18402

$2.19

8

LABEL, CAUTION MAX AMP This part replaces 38852-09FB0.

38852-09F21

$7.53

9

RELAY, NEUTRAL START

38730-19B00

$40.44

10

HOLDER, ELECTRIC FRONT

47410-19B00

$12.40

11

BOLT (6X12) This part replaces 09118-06103.

09118-06055

$2.80

12

SWITCH ASSY,IGN | Includes Item(s) 13 This part replaces 37110-19B02.

37110-19B03

$127.03

13

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

14

RELAY ASSY,FUEL PUMP | MODEL K2 This part replaces 38740-26E00.

38740-26E01

$38.58

15

BRACKET, GEAR IN START | MODEL K2

38741-05300

Unavailable

16

NO DESCRIPTION AVAILABLE | OPT This part replaces 38500-19B02.

38500-09F01

Unavailable

17

LEAD WIRE, HORN | OPT

36852-19B00

Unavailable

18

SWITCH ASSY, HORN | OPT This part replaces 37830-18A00.

37830-27H00

$45.83

19

LEAD WIRE, SWITCH (ORANGE) | OPT

36851-19B00

Unavailable

20

LEAD WIRE, SWITCH | OPT

36851-19B10

Unavailable

21

CONNECTOR | OPT

36859-36590

$7.32

22

PLUG ASSY, POWER SOURCE | OPT

39602-18A00

Unavailable

23

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

23

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

24

TERMINAL, POWER SOURCE

38850-09F00

Unavailable

25

BRACKET, POWER SOURCE

38855-09F00

Unavailable

26

BOLT This part replaces 01550-06103.

01550-0610A

$1.97
