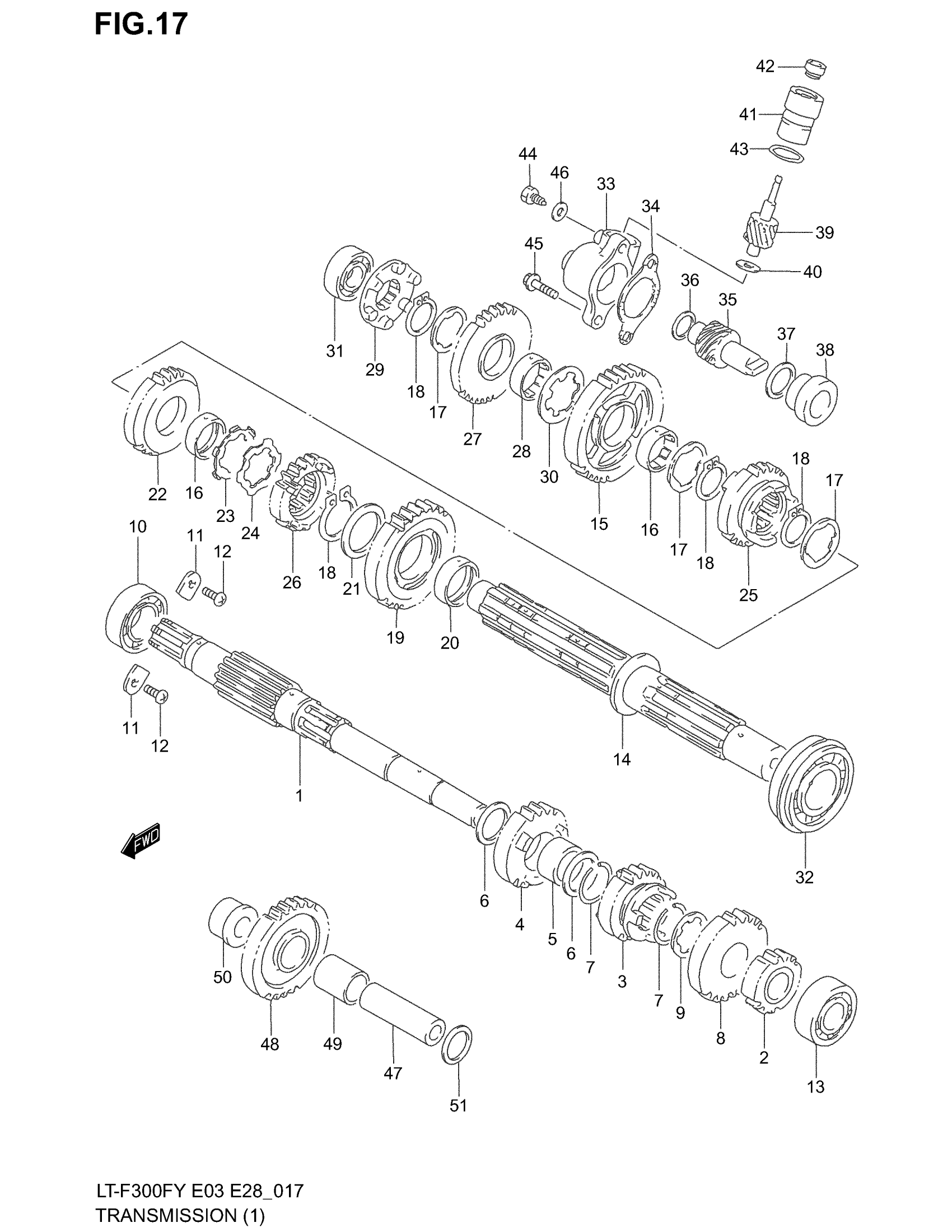

Suzuki LT-F300F (2002) TRANSMISSION (1) Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12) | MODEL X/Y This part replaces 24121-19B01.

24121-19B10

Unavailable

1

COUNTERSHAFT (NT:12) | MODEL K1/K2

24121-19B10

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-18A00

$115.77

3

GEAR,3RD DRIVE This part replaces 24231-18A02.

24231-18A03

$119.97

4

GEAR, 4TH DRIVE (NT:21)

24241-18A01

$81.80

5

BUSH

09300-22008

$14.82

6

WASHER (22X30X1.0)

09181-22167

$2.96

7

CIRCLIP

09380-22006

$3.10

8

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-18A02.

24251-18A03

$108.15

9

WASHER (22.1X27X0.5)

09167-22013

Unavailable

10

BEARING, RH (22X50X14)

09262-22018

$25.60

11

RETAINER

24741-21A00

$2.81

12

SCREW (6X12)

09125-06110

$2.12

13

BEARING, MIDDLE (17X40X17.5)

09267-17002

$90.35

14

DRIVESHAFT | MODEL X/Y This part replaces 24131-19B02.

24131-19B10

Unavailable

14

DRIVESHAFT | MODEL K1/K2

24131-19B10

Unavailable

15

GEAR, 1ST DRIVEN (NT:37)

24311-18A02

Unavailable

16

BUSH, 3RD DRIVEN GEAR | MODEL X/Y This part replaces 24332-24500.

24332-24510

$18.67

16

BUSH | MODEL K1/K2

24332-24510

$18.67

17

LOCK WASHER

09167-25016

$3.72

18

SNAP RING

09380-25003

$3.04

19

GEAR, 2ND DRIVEN (NT:29)

24321-18A01

$113.25

20

BUSH

09300-25020

$16.87

21

WASHER

08211-25351

$3.72

22

GEAR, 3RD DRIVEN (NT:25)

24331-19B01

$108.65

23

LOCK WASHER

09169-25001

$2.70

24

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

25

GEAR, 4TH DRIVEN (NT:23)

24341-18A02

$110.67

26

GEAR, 5TH DRIVEN (NT:21)

24351-18A02

$110.67

27

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

Unavailable

28

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

29

DOG

24581-18A00

Unavailable

30

WASHER

09167-25017

$3.87

31

BEARING, RH (17X35X10)

09262-17026

$36.97

32

BEARING, MIDDLE (25X52X15)

09262-25085

$32.88

33

HOUSING, ODOMETER GEAR

26441-19B01

$63.48

34

GASKET

26451-19B12

$4.72

35

GEAR, ODOMETER DRIVE (NT:10)

26461-19B00

Unavailable

36

WASHER, RH (15X20X1.0)

09181-15111

$2.97

37

WASHER, LH (17X24X1.0)

09181-17139

$3.07

38

SPACER

26481-19B00

Unavailable

39

GEAR, ODOMETER DRIVEN (NT:14)

26471-19B00

$41.63

40

WASHER

08211-08151

$2.06

41

SLEEVE

26442-19B00

$40.33

42

OIL SEAL (5X12X8.0)

09289-05002

$8.43

43

O RING (D:1.9,ID:16.6)

09280-17004

$3.67

44

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$3.04

45

BOLT (6X20)

09103-06201

$2.64

46

WASHER (6.2X11X1.2)

09168-06004

$1.49

47

SHAFT, REVERSE IDLE

24551-19B00

Unavailable

48

GEAR, REVERSE IDLE (NT:29)

24561-19B00

Unavailable

49

BUSH

09300-17010

Unavailable

50

SPACER

24562-19B00

Unavailable

51

WASHER (17X28X1.0)

09181-17195

$3.07
