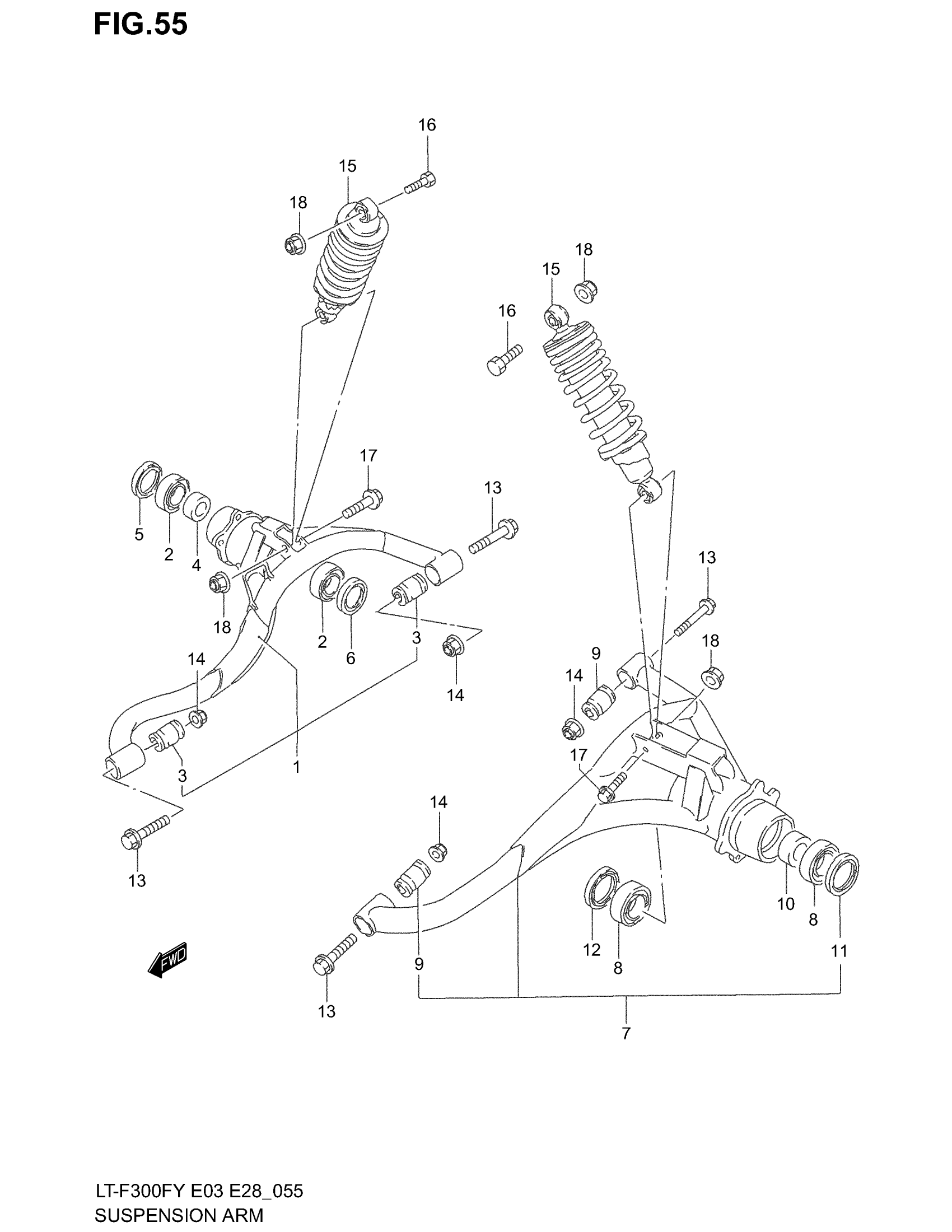

Suzuki LT-F300F (2002) SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, SUSPENSION RH (BLACK) | Includes Item(s) 2 - 6

61100-39880-019

Unavailable

2

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$31.25

3

BUSHING (10.2X25.5X52.2)

09319-10030

$11.61

4

SPACER (32.4X38X17)

09180-32007

$19.60

5

SEAL, DUST OUTER (40X58X6) | MODEL X/Y/K1

09283-40018

$14.74

5

SEAL, DUST OUTER (40X58X6) | MODEL K2

09283-40032

$18.02

6

SEAL, DUST INNER (40X58X8)

09283-40019

$16.81

7

ARM SET, SUSPENSION LH (BLACK) | Includes Item(s) 8 - 12

61100-39890-019

Unavailable

8

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$31.25

9

BUSHING (10.2X25.5X52.2)

09319-10030

$11.61

10

SPACER (32.4X38X17)

09180-32007

$19.60

11

SEAL, DUST OUTER (40X58X6) | MODEL X/Y/K1

09283-40018

$14.74

11

SEAL, DUST OUTER (40X58X6) | MODEL K2

09283-40032

$18.02

12

SEAL, DUST INNER (40X58X8)

09283-40019

$16.81

13

BOLT,10X77 This part replaces 09103-10247.

09103-10247-XC0

$6.02

14

NUT

08319-31107

$2.73

15

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL X/Y

62100-19B81-019

Unavailable

15

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K1/K2

62100-19B90-019

Unavailable

16

BOLT, UPPER (10X38)

09100-10227

$3.50

17

BOLT, LOWER (10X48)

09103-10126

$4.50

18

NUT

08319-31107

$2.73
