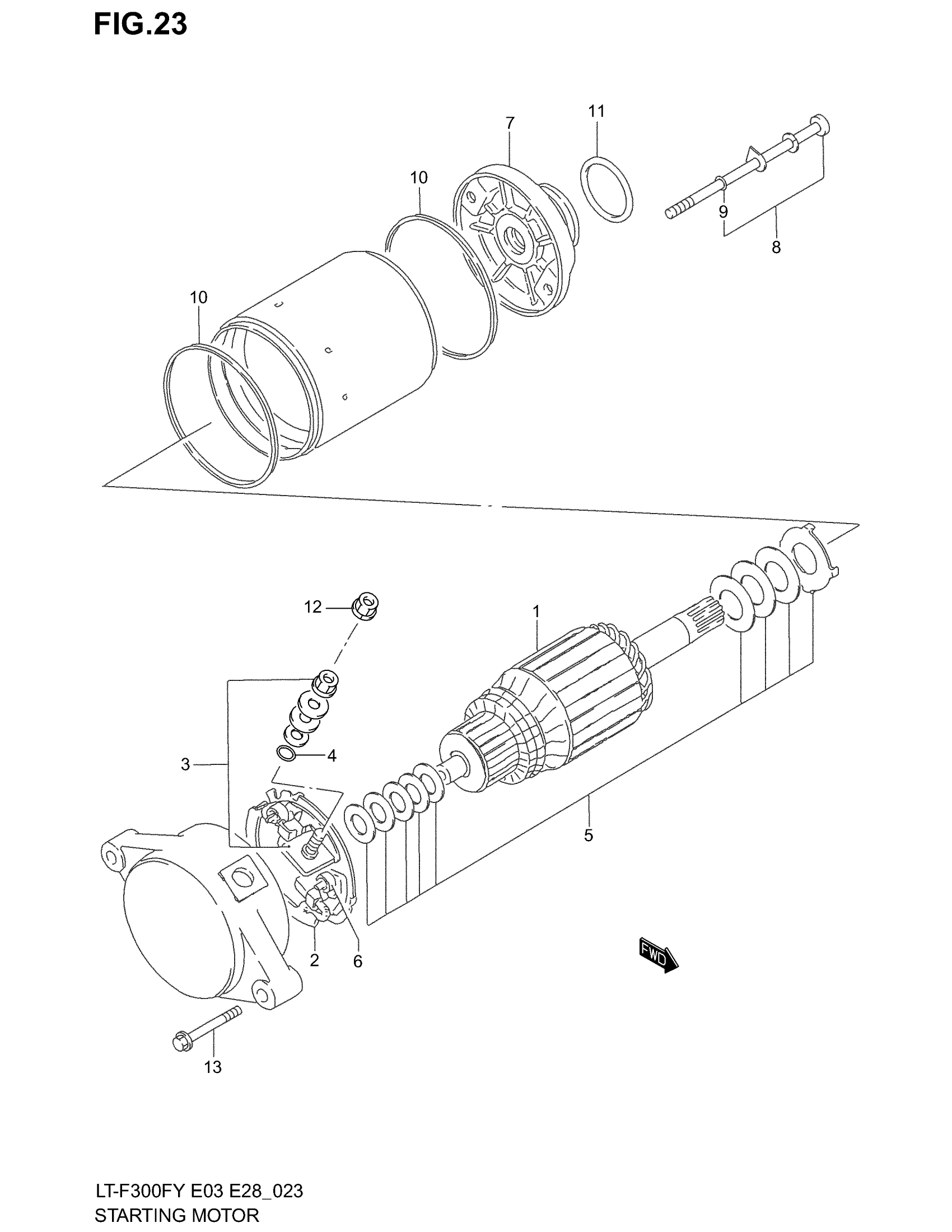

Suzuki LT-F300F (2002) STARTING MOTOR (MODEL X) Diagram

#

Description

Price

MOTOR ASSY, STARTING | Includes Item(s) 1 - 11 This part replaces 31100-19B12.

31100-19B20

$649.60

1

ARMATURE

31311-19B12

Unavailable

2

HOLDER SET, BRUSH (-)

31132-19B10

$29.77

3

TERMINAL SET, BRUSH (+)

31130-19B10

$28.15

4

O RING

31143-49040

$3.71

5

WASHER SET

31170-19B10

$12.57

6

SPRING, BRUSH

31135-31300

$4.96

7

BRACKET ASSY, FRONT

31150-19B10

Unavailable

8

BOLT SET

31280-19B10

Unavailable

9

O RING

31143-49040

$3.71

10

O RING

31264-32E00

$6.68

11

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80

13

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45
