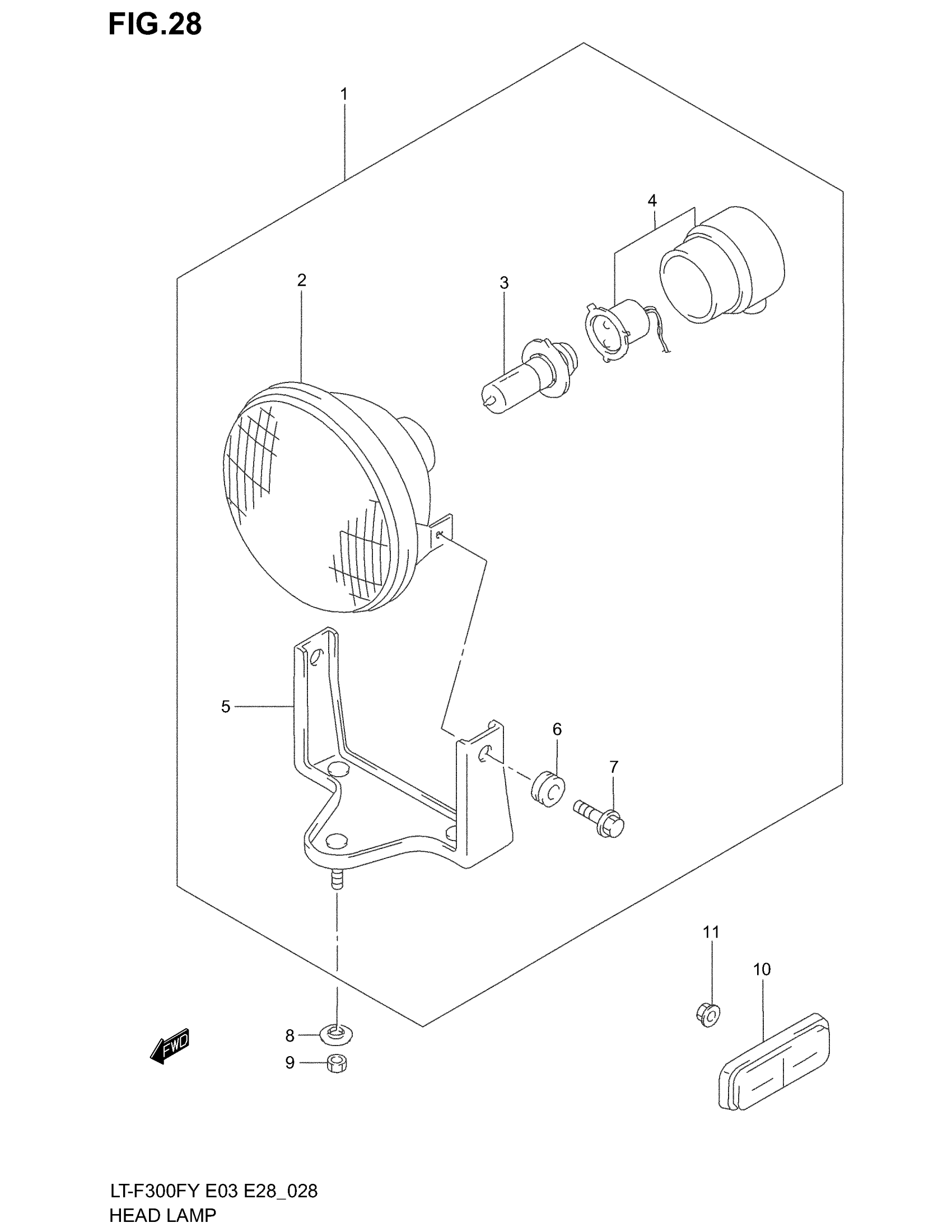

Suzuki LT-F300F (2002) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 7

35100-19B30

$225.72

2

UNIT, LAMP

35121-19B30

$56.31

3

BULB (12V,30/30W)

09471-12093

$29.38

4

SOCKET

35171-19B03

$27.89

5

BRACKET, LAMP

35141-19B30

Unavailable

6

CUSHION

35139-45230

$1.98

7

BOLT

35181-19B30

Unavailable

8

WASHER This part replaces 09169-06028.

09169-06041

$2.20

9

NUT This part replaces 08310-00063.

08310-0006A

$1.84

10

REFLEX REFLECTOR, FRONT SIDE | E28

35950-43431

$17.83

11

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19
