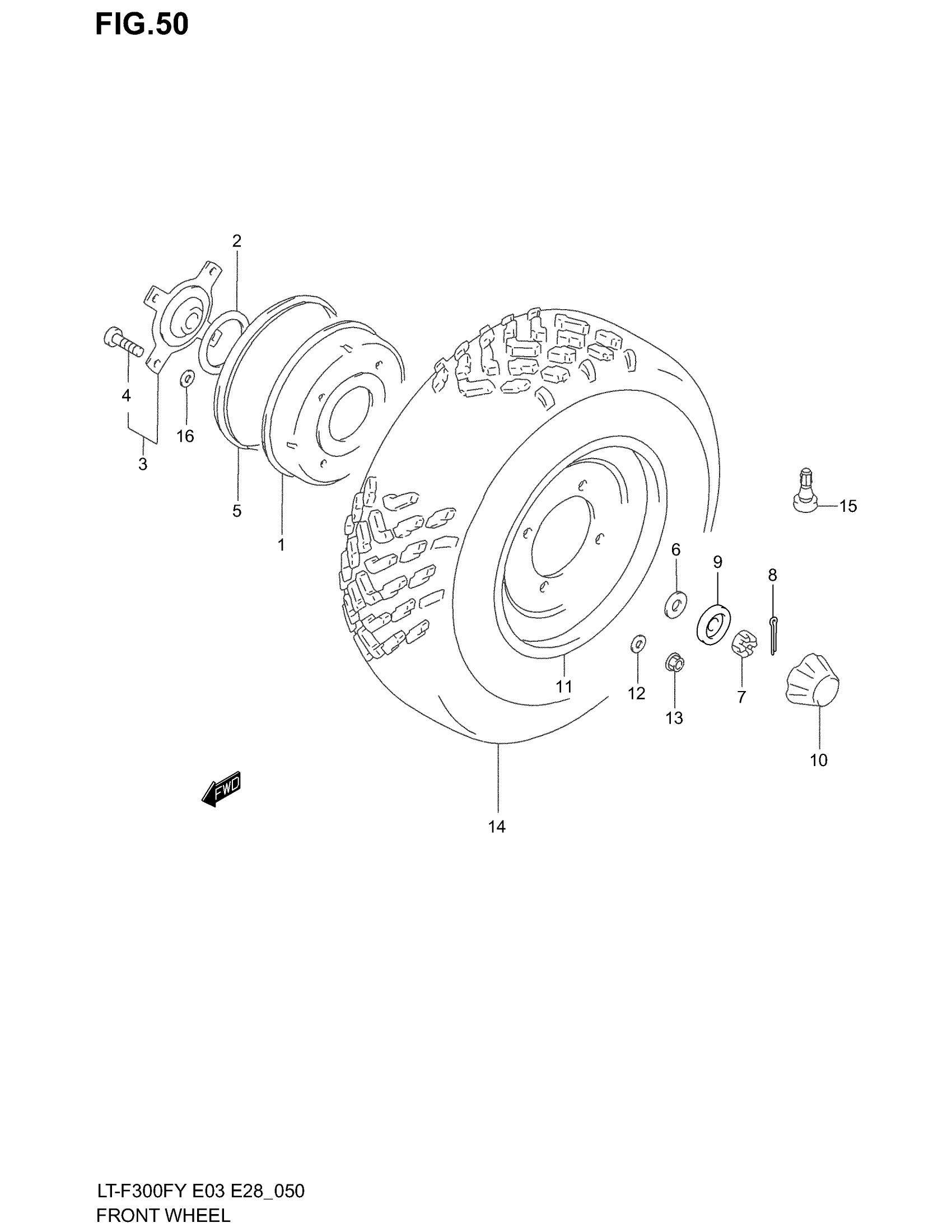

Suzuki LT-F300F (2002) FRONT WHEEL (MODEL X/Y/K1) Diagram

DRUM, BRAKE

54120-39D00

Unavailable

O RING (ID:79.8,D:2.40)

09280-80001

$3.89

HUB, FRONT | Includes Item(s) 4

54110-39D01

Unavailable

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

DUST SEAL, DRUM BRAKE

54124-39D10

Unavailable

WASHER, HUB

09164-18004

$3.76

NUT, HUB

09141-18008

$8.37

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

HOLDER, CENTER CAP

64726-19B00

$3.31

CAP, WHEEL CENTER

54725-39D00

$14.76

RIM,FRONT WHEEL This part replaces 55310-19B81-12R.

55310-39D20-PBV

Unavailable

WASHER, WHEEL

09160-10126

$2.12

NUT This part replaces 08316-10103.

08316-1010B

$2.66

TIRE COMP,FRONT This part replaces 55110-19B90.

55110-19BA0

Unavailable

VALVE ASSY, WHEEL RIM,TR412

43130-24A00

$8.85

O RING (ID:9.8,D:1.90)

09280-10016

$3.37
