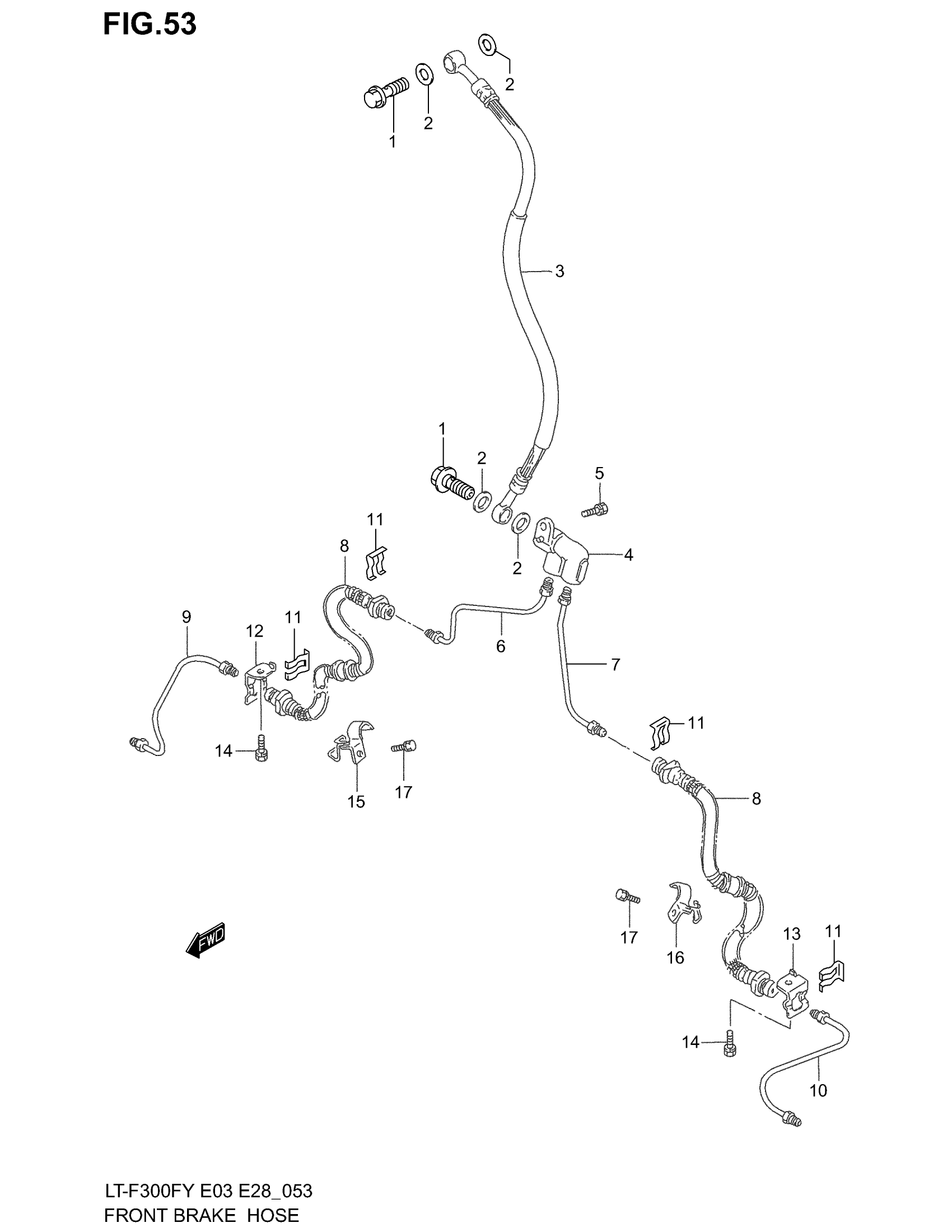

Suzuki LT-F300F (2002) FRONT BRAKE HOSE (MODEL X/Y/K1) Diagram

#

Description
Price

1

UNION This part replaces 09360-10039.

09360-10061

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE This part replaces 59480-19B01.

59480-19B03

$61.92

4

JOINT, THREE WAY This part replaces 59490-19A00.

59491-19A10

$53.33

5

BOLT | MODEL X This part replaces 01570-06163.

01570-0616A

$2.23

5

BOLT | MODEL Y/K1 This part replaces 01550-06163.

01550-0616A

$1.97

6

PIPE, BRAKE NO.1 RH

59250-19B00

$12.40

7

PIPE, BRAKE NO.1 LH

59450-19B00

$12.40

8

HOSE, BRAKE NO.2

59240-39D01

Unavailable

9

PIPE, BRAKE NO.2 RH

59250-39D10

Unavailable

10

PIPE, BRAKE NO.2 LH

59450-39D10

Unavailable

11

E RING This part replaces 09383-13001.

09383-13003

$2.30

12

GUIDE, HOSE RH

59261-19B00

Unavailable

13

GUIDE, HOSE LH

59271-19B00

Unavailable

14

BOLT This part replaces 01570-06103.

01570-0610A

Unavailable

15

CLAMP, HOSE RH

59260-39D00

Unavailable

16

CLAMP, HOSE LH

59270-39D00

Unavailable

17

BOLT This part replaces 01570-06103.

01570-0610A

Unavailable
