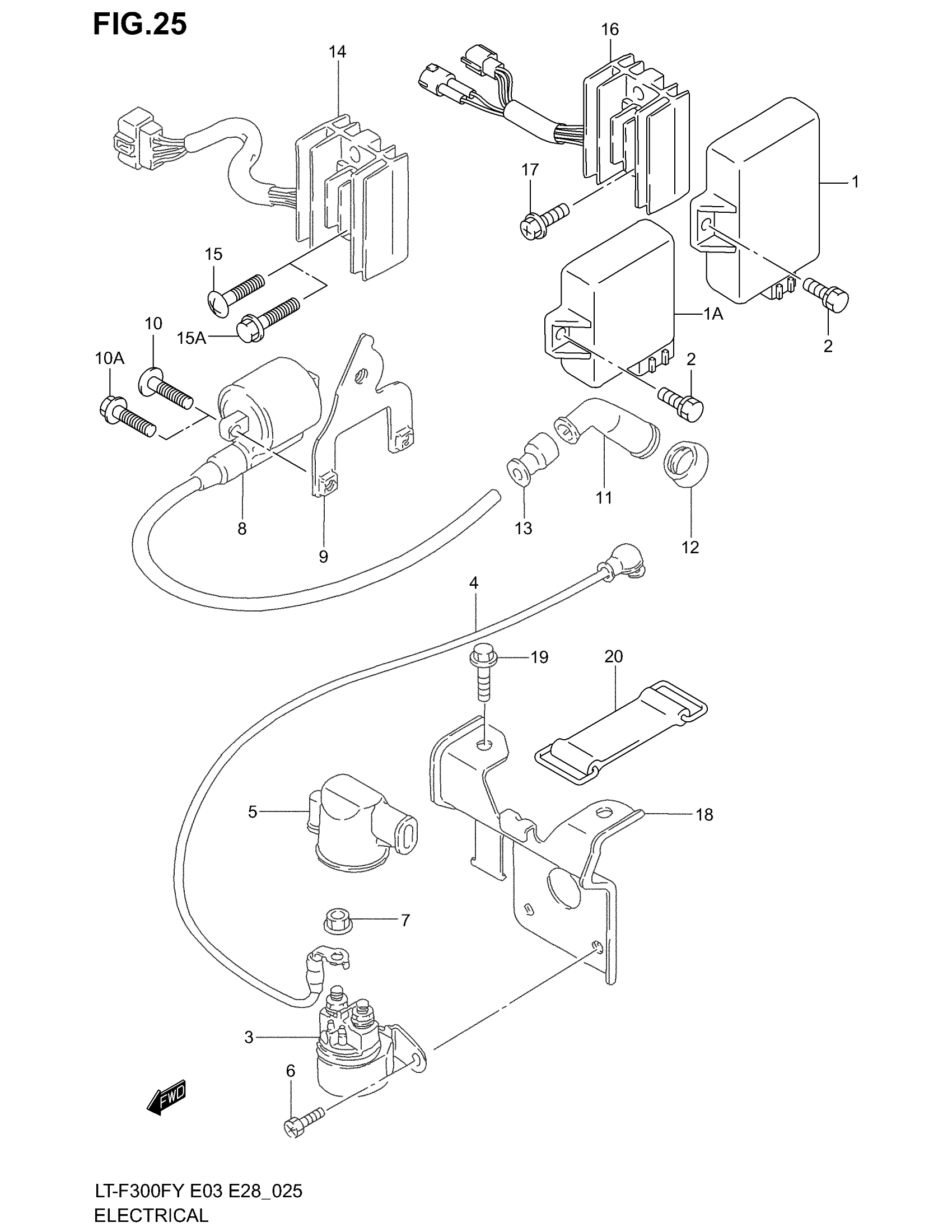

Suzuki LT-F300F (2002) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT | MODEL X/Y

32900-19B40

$635.78

1

C.D.I UNIT | MODEL K1

32900-19B80

Unavailable

1A

C.D.I UNIT | MODEL K2

32900-19BA0

$624.02

2

BOLT | MODEL X/Y/K1 This part replaces 01570-06163.

01570-0616A

$2.23

2

BOLT | MODEL K2 This part replaces 01550-06163.

01550-0616A

$1.97

3

RELAY, STARTING MOTOR

31800-49100

$97.31

4

LEAD WIRE, STARTING MOTOR

33850-19B00

$40.33

5

CAP, TERMINAL

31861-46D00

$7.87

6

SCREW (6X8)

09128-06013

$1.49

7

NUT This part replaces 08361-35068.

08361-3506A

$1.80

8

COIL ASSY, IGNITION | MODEL X/Y This part replaces 33410-19B00.

33410-01X50

$105.37

8

COIL ASSY, IGNITION | MODEL K1/K2

33410-19B10

$98.83

9

BRACKET, IGNITION COIL

33416-19B00

Unavailable

10

SCREW | MODEL X/Y This part replaces 02142-06203.

02142-0620A

$1.49

10A

BOLT | MODEL K1/K2 This part replaces 01550-06203.

01550-0620A

$1.97

11

CAP, SPARK PLUG

33510-43010

$24.99

12

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

14

RECTIFIER ASSY | MODEL X/Y/K1

32800-19B11

$227.68

15

SCREW | MODEL X/Y This part replaces 02142-06203.

02142-0620A

$1.49

15A

BOLT | MODEL K1 This part replaces 01550-06203.

01550-0620A

$1.97

16

RECTIFIER ASSY | MODEL K2

32800-29B10

$278.28

17

BOLT | MODEL K2 This part replaces 02162-06203.

02162-0620C

$1.71

18

HOLDER, ELECTRIC REAR

47410-19B10

$18.02

19

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

20

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24
