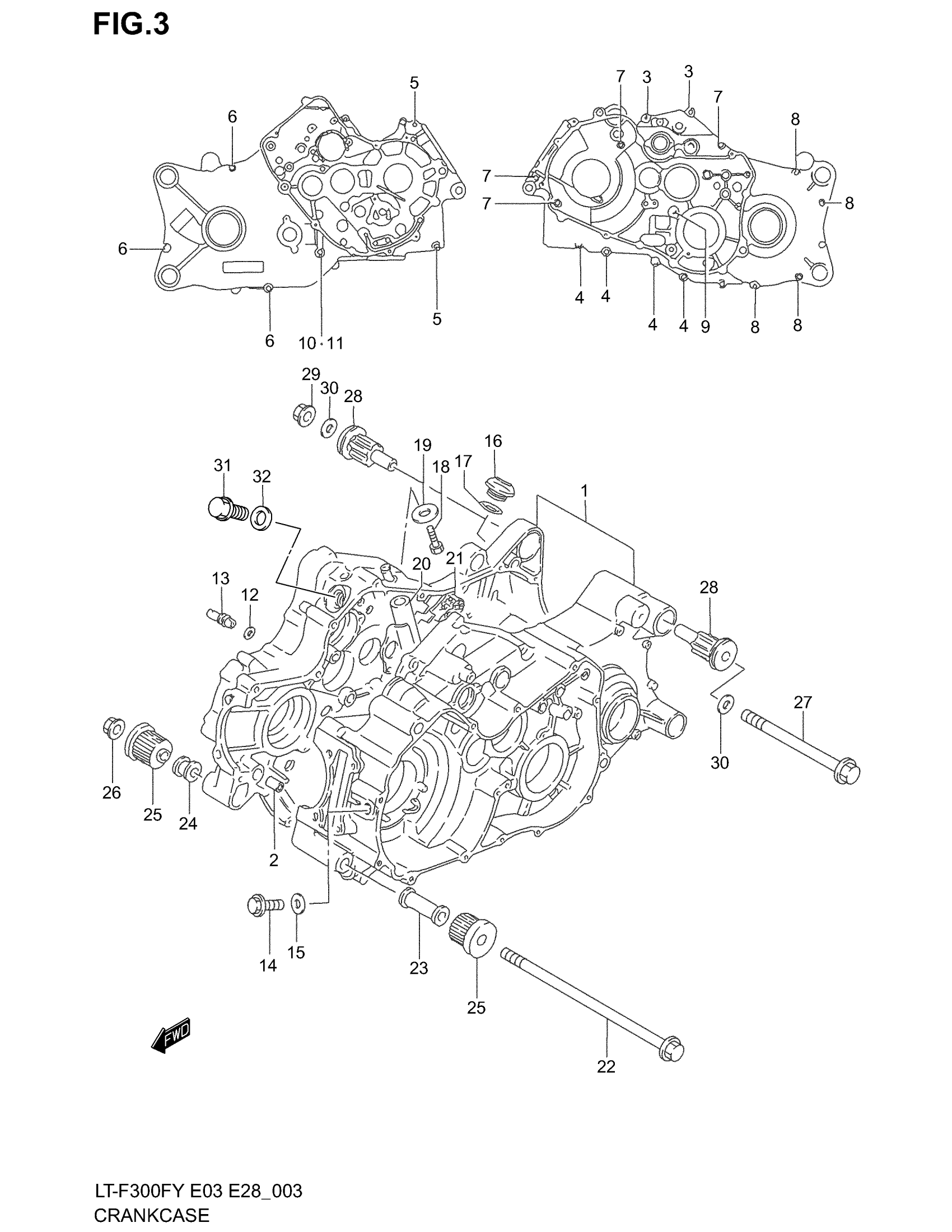

Suzuki LT-F300F (2002) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL X This part replaces 11300-19881.

11300-19883

Unavailable

1

CRANKCASE SET | MODEL Y/K1/K2; Includes Item(s) 2 - 13 This part replaces 11300-19882.

11300-19883

Unavailable

2

PIN (L:18)

04211-13189

$2.19

3

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

6

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

7

BOLT This part replaces 01547-06653.

01547-0665B

$3.18

8

BOLT This part replaces 01547-06903.

01547-0690B

$3.20

9

BOLT This part replaces 09103-08072.

09103-08363

$9.00

10

BOLT (8X60)

09103-08217

$3.72

11

GASKET

09168-08021

$2.61

12

O RING, OIL GALLERY JET (D:1.2,ID:4.0)

09280-04004

$1.91

13

JET, OIL GALLERY

09493-36004

$16.87

14

PLUG, TDC

09247-14015

$4.45

15

GASKET

09168-14002

$2.26

16

CAP, OIL FILLER

09200-30810

$10.15

17

O RING (D:3.1,ID:26.4)

09280-26006

$2.76

18

PLUG, OIL DRAIN

09247-12106

$2.73

19

GASKET

09168-12002

$1.59

20

PIPE, BREATHER | MODEL X This part replaces 11380-19B40.

11380-19B41

Unavailable

20

PIPE, BREATHER | MODEL Y/K1/K2

11380-19B41

Unavailable

21

SEPARATOR, OIL BREATHER

11186-19B81

Unavailable

22

BOLT (12X300)

09103-12016

$26.28

23

SPACER (L:60)

11610-19B00

Unavailable

24

SPACER | MODEL X/Y/K1 This part replaces 11611-17E00.

11611-19B13

$10.20

24

SPACER | MODEL K2

11611-19B13

$10.20

25

BUSH (L:39)

11681-20B00

$33.93

26

NUT This part replaces 08319-31128.

08319-3112A

$3.76

27

BOLT (10X240)

09103-10221

$22.58

28

BUSH (L:85)

11650-19B10

$37.53

29

NUT

09159-10047

$9.41

30

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

31

PLUG, REVERSE SWITCH HOLE

11398-19BA0

Unavailable

32

O RING (D:3.2,ID:15.8)

09280-16008

$2.02
