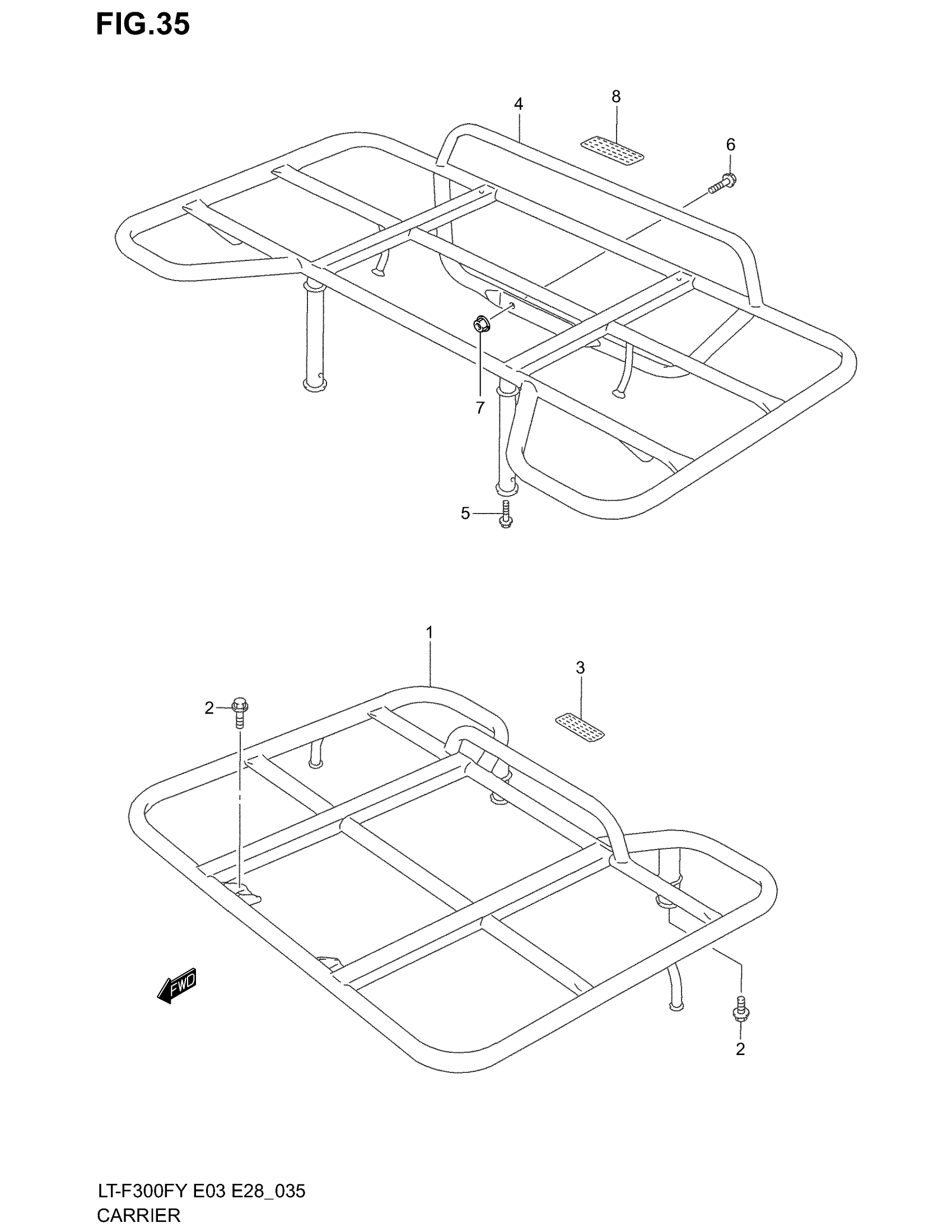

Suzuki LT-F300F (2002) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT | MODEL X/Y

46410-39DA0

Unavailable

1

CARRIER, FRONT | MODEL K1/K2

46410-39DC0

Unavailable

1

CARRIER, FRONT | MODEL X/Y E28

46410-39DB0

Unavailable

1

CARRIER, FRONT | MODEL K1/K2 E28

46410-39DD0

Unavailable

2

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

3

LABEL,FRONT CAR This part replaces 68381-19B00.

68381-19B01

$5.42

3

LABEL, FRONT CARRIER | MODEL X/Y E28

68381-19B10

Unavailable

3

LABEL,WARNING F | MODEL K1/K2 E28 This part replaces 68381-19B20.

68381-19B21

$8.03

4

CARRIER, REAR

46310-39DA0

Unavailable

4

CARRIER, REAR | E28

46310-39DB0

Unavailable

5

BOLT (8X16) | MODEL X This part replaces 09103-08283.

09103-08570

$2.34

5

BOLT, FRONT | MODEL Y/K1/K2

09103-08266

$2.71

6

BOLT, REAR

09103-08332

$4.60

7

NUT | MODEL X This part replaces 08319-31083.

08319-3108A

$2.32

7

NUT | MODEL Y/K1/K2

09159-08113

Unavailable

8

LABEL,REAR CARR This part replaces 68391-19B00.

68391-19B01

$5.60

8

LABEL, REAR CARRIER | MODEL X/Y E28

68391-19B10

Unavailable

8

LABEL, REAR CARRIER | MODEL K1/K2 E28

68391-19B20

Unavailable
