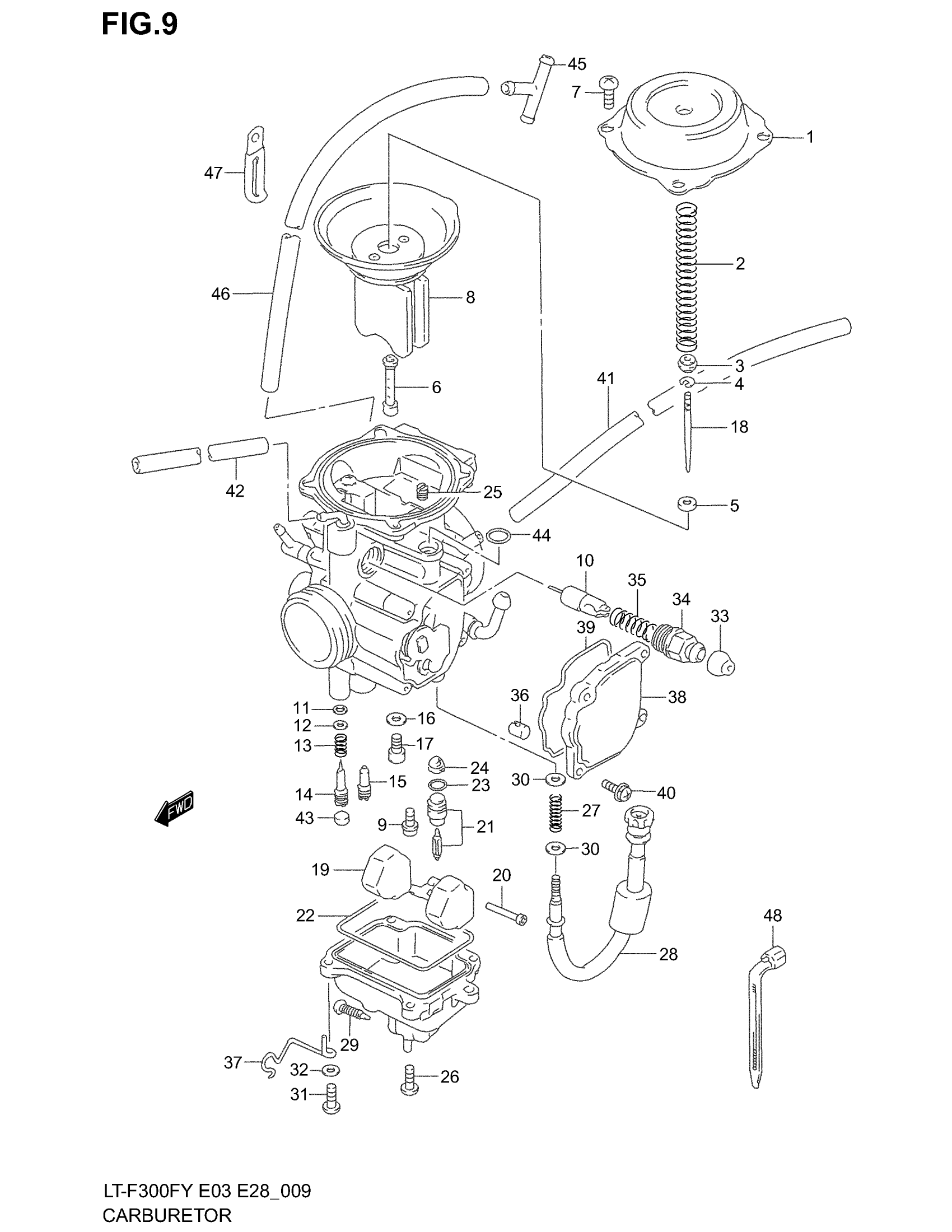

Suzuki LT-F300F (2002) CARBURETOR (MODEL X) Diagram

#

Description
Price

CARBURETOR ASSY | E3,E28 This part replaces 13200-19B91.

13200-19B93

Unavailable

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 1 - 43 This part replaces 13200-39D10.

13200-39D11

Unavailable

1

COVER

13502-42A00

$38.47

2

SPRING

13417-26B00

Unavailable

3

RING

13382-42A00

$4.48

4

E RING | E3,E28

13394-10010

$5.45

4

.E-RING | E33

13394-40D20

$5.45

5

RING

13387-47010

$7.22

6

JET, NEEDLE (P-2) | E3,E28

09494-00858

Unavailable

6

JET, NEEDLE (O-6M) | E33

09494-00911

Unavailable

7

SCREW | E3,E28

02112-04087

$1.49

7

SCREW | E33 This part replaces 02112-04083.

02112-0408A

$1.49

8

DIAPHRAGM ASSY | E3,E28 This part replaces 13500-19B62.

13500-19B63

Unavailable

8

DIAPHRAGM ASSY | E33 This part replaces 13500-39D00.

13500-39D01

Unavailable

9

SCREW

13602-43410

$2.92

10

PLUNGER ASSY | E3,E28

13411-19B50

$15.35

10

PLUNGER ASSY | E33

13411-19BE0

Unavailable

11

O-RING This part replaces 13295-29900.

13295-29901

$4.34

12

WASHER

13291-29900

$1.98

13

.SPRING (NT:45)

13268-47070

$4.34

14

SCREW, PILOT (2 5/8) | E3,E28

13279-47070

$13.36

14

SCREW, PILOT (2 1/2) | E33

13279-47070

$13.36

15

JET, PILOT (37.5) | E3,E28

09492-35010

$9.32

15

JET, PILOT (25) | E33

09492-25005

$9.55

16

WASHER

13382-03110

$2.80

17

JET, MAIN (120) | E3,E28

09491-24016

$11.38

17

JET, MAIN (117.5) | E33

09491-23017

$11.83

18

NEEDLE, JET (5D40-4) | E3,E28

13383-19B50

$18.75

18

NEEDLE, JET (5D84-1) | E33

13383-39D00

Unavailable

19

FLOAT

13250-42A00

$34.08

20

PIN

13254-92311

$2.07

21

VALVE ASSY, NEEDLE | E3,E28

13370-38B00

$58.10

21

VALVE ASSY, NEEDLE | E33

13370-44500

$50.98

22

O RING, FLOAT CHAMBER

13251-42A00

$9.03

23

O RING This part replaces 13374-44080.

13374-35C00

$5.99

24

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

25

JET, PILOT AIR (155) | E3,E28

09493-30005

$16.40

25

JET, PILOT AIR (175) | E33

09493-35001

Unavailable

26

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

27

SPRING

13268-19B50

$4.28

28

ADJUSTER

13267-19B70

$50.69

29

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

30

WASHER

13615-45010

$3.25

31

SCREW | E3,E28 This part replaces 02112-04163.

02112-0416A

$1.49

31

SCREW | E33

13602-04168

$3.47

32

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

33

.CAP This part replaces 13681-04010.

13681-04011

$4.93

34

HOLDER, GUIDE

13418-43410

$7.22

35

SPRING

13417-43010

$4.34

36

GUIDE, CABLE

13591-19B50

$10.28

37

CLIP

13692-19B60

Unavailable

38

COVER

13502-19B50

$20.10

39

O RING

13251-19B50

$12.30

40

SCREW

13602-19B50

$3.43

41

HOSE, AIR VENT LH | E3,E28 L:2000!650

09359-50823-00B

Unavailable

41

HOSE | E33 This part replaces 13683-19B80.

13683-19B81

$17.37

42

HOSE(4.5X8.5X60 | L:600!550 This part replaces 09355-45855-600.

09355-45001-600

$9.48

43

PLUG | E33

13281-05A00

$4.60

44

O RING

09280-06008

$2.03

45

UNION, 3 WAY

09367-08004

$4.83

46

HOSE, AIR VENT | L:2000!650

09359-50823-00B

Unavailable

47

CLAMP, AIR VENT HOSE

09404-06435

$3.68

48

CLAMP, BOOST HOSE

09407-14403

$2.26
