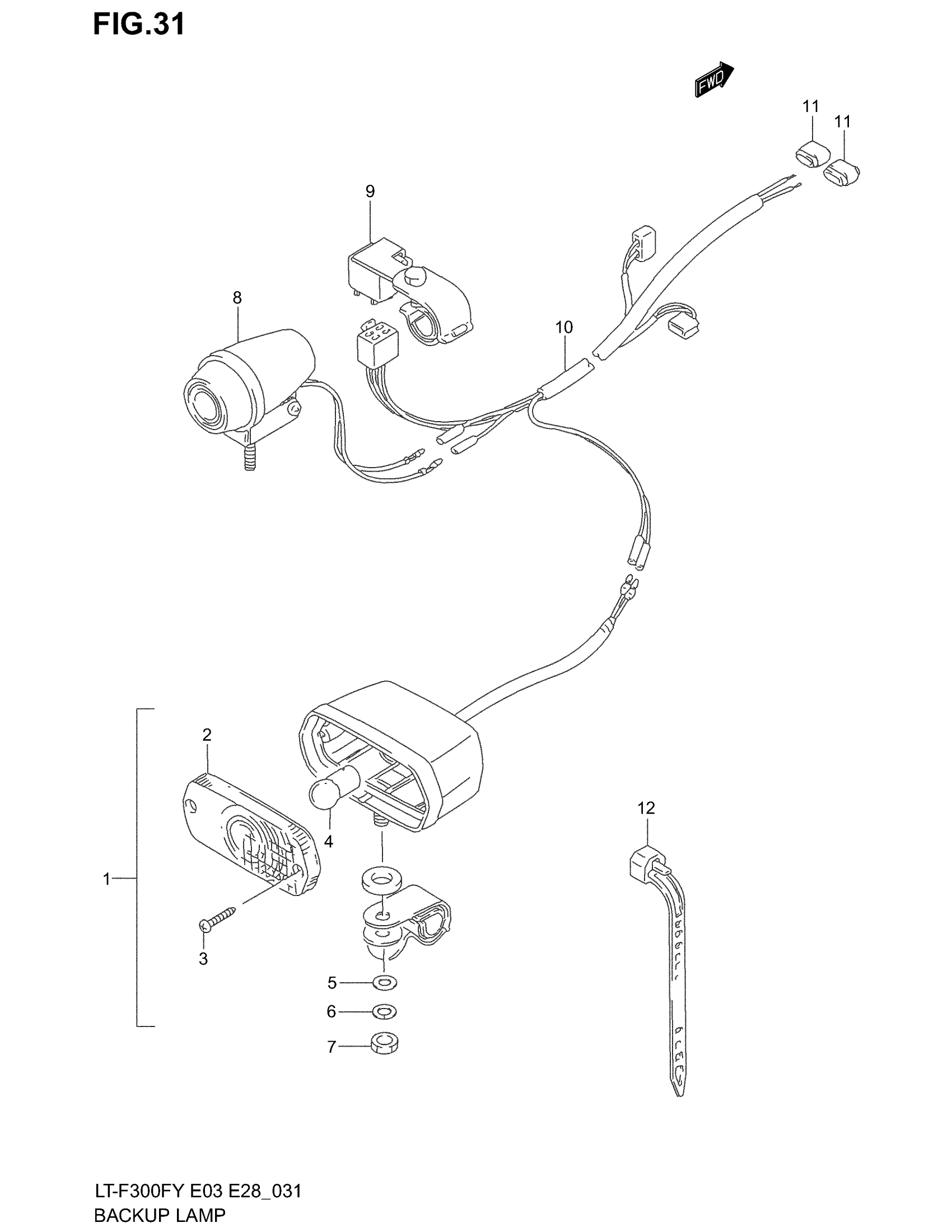

Suzuki LT-F300F (2002) BACKUP LAMP (OPTIONAL) Diagram

#

Description
Price

BACKUP LAMP & BUZZER SET | Includes Item(s) 1 - 12

38700-19860

Unavailable

1

LAMP ASSY, BACKUP

36250-19B00

Unavailable

2

LENS

36252-19B00

Unavailable

3

SCREW

03512-04209

Unavailable

4

BULB,12V10W This part replaces 09471-12003.

09471-12142

Unavailable

5

WASHER

08322-01087

$2.13

6

.LOCK WASHER

08321-01087

$2.13

7

NUT

08310-00087

$2.13

8

BUZZER ASSY, BACKUP

38751-19B00

Unavailable

9

RELAY ASSY, BACKUP

38752-19B00

Unavailable

10

LEAD WIRE

36856-19B00

$41.63

11

CONNECTOR

36859-36590

$7.32

12

CLAMP (L:125)

09407-14403

$2.26
