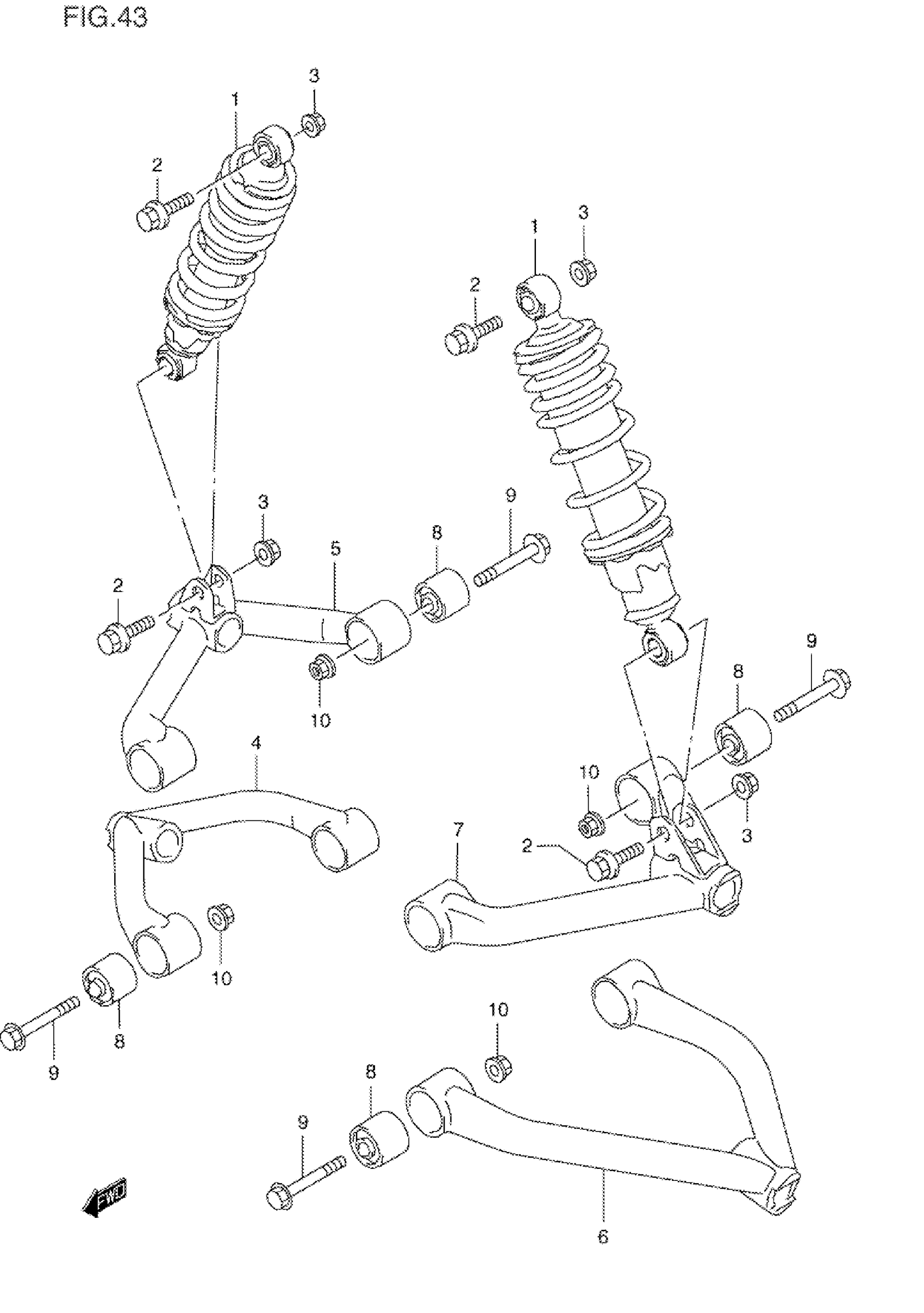

Suzuki LT-F250W (1998) SUSPENSION ARM Diagram

#

Description

Price

1

ABSORBER ASSY, FRONT SHOCK

52100-20B00-019

Unavailable

2

BOLT, SHOCK ABSORBER (10X37)

09103-10019

$2.63

3

NUT | MODEL V This part replaces 08319-31103.

08319-3110A

$2.73

3

NUT | MODEL W

08319-31107

$2.73

4

ARM, SUSPENSION,LOWER RH

52410-20B00

Unavailable

5

ARM, SUSPENSION,UPPER RH

52430-20B00

Unavailable

6

ARM, SUSPENSION,LOWER LH

52420-20B00

Unavailable

7

ARM, SUSPENSION,UPPER LH

52440-20B00

Unavailable

8

BUSH, SUSPENSION ARM

09319-10055

$21.02

9

BOLT, SUSPENSION ARM PIVOT

09103-10107

$4.60

10

NUT | MODEL V This part replaces 08319-31105.

08319-3110A

$2.73

10

NUT | MODEL W

08319-31107

$2.73
