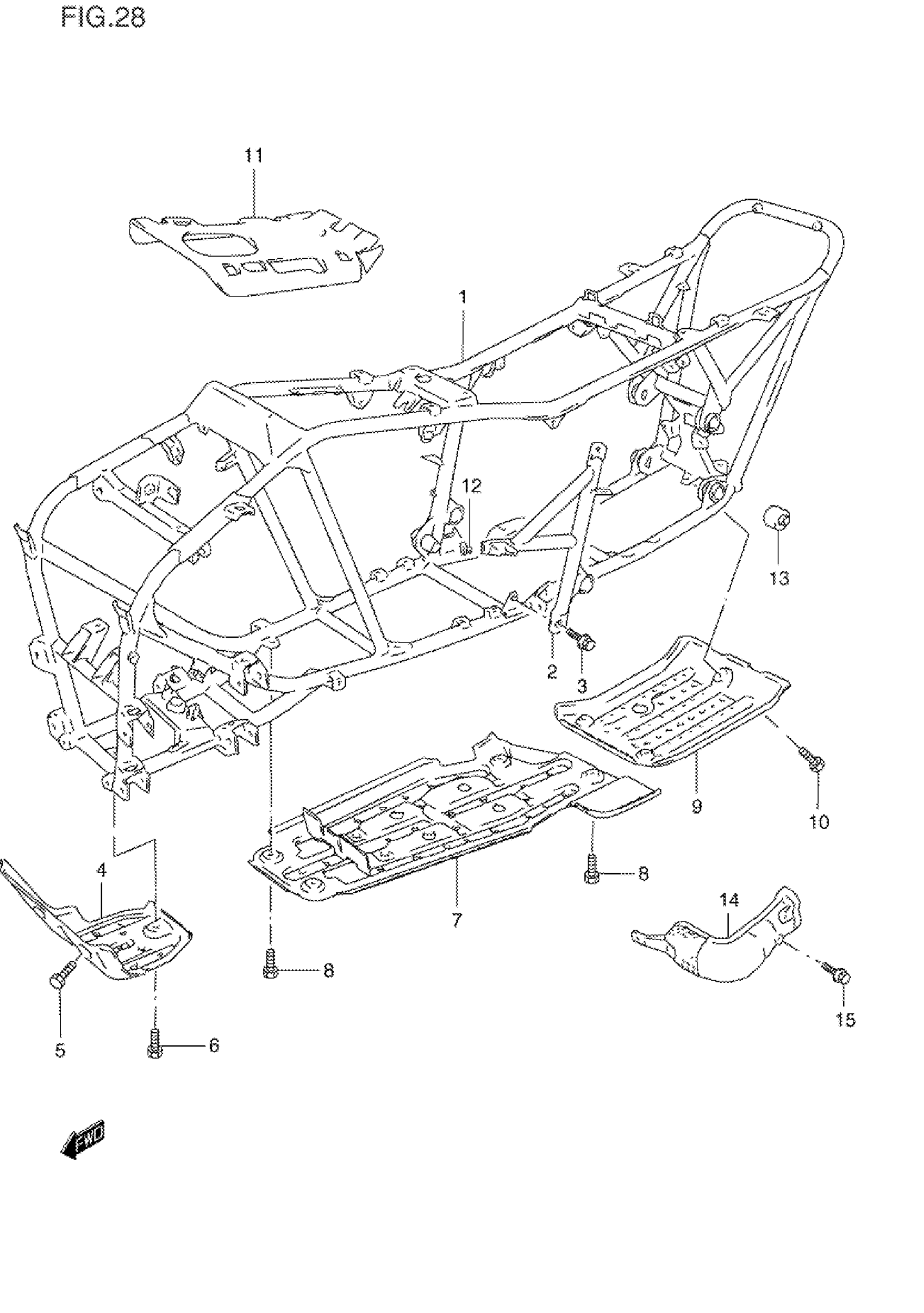

Suzuki LT-F250W (1998) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK) | Includes Item(s) 2 - 3 This part replaces 41100-20861-019.

41100-20862-019

Unavailable

2

PLATE, MOUNTING FRONT (BLACK

41910-39D00-019

Unavailable

3

BOLT

09103-10165

$4.62

4

PROTECTOR, FRONT This part replaces 42511-20B10.

42511-20B11

Unavailable

5

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

6

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

7

PROTECTOR, MIDDLE This part replaces 42560-19B02.

42560-19B03

Unavailable

8

BOLT, REAR This part replaces 01580-06203.

01580-0620B

$3.30

9

PROTECTOR, ENGINE This part replaces 61390-19B01.

61390-19B02

$125.61

10

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

11

NO DESCRIPTION AVAILABLE This part replaces 47157-19B10.

47157-19B11

Unavailable

12

CAP

43978-24500

$8.42

13

BUSH

09319-10064

$21.22

14

COVER, MUD

42570-39D00

Unavailable

15

BOLT This part replaces 01580-06123.

01580-0612A

$2.32
