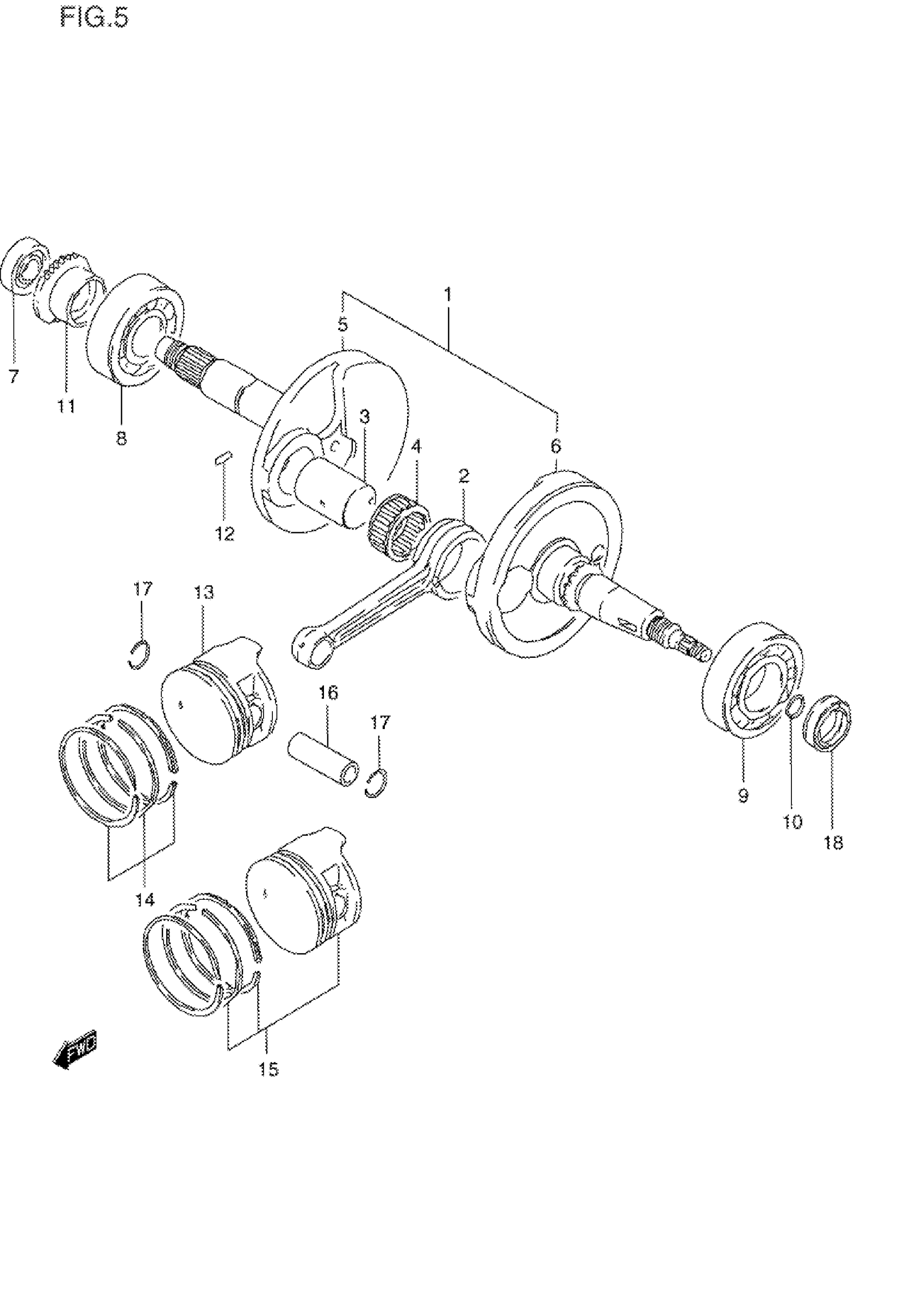

Suzuki LT-F250W (1998) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6

12200-19B20

Unavailable

2

ROD, CONNECTING This part replaces 12161-19B02.

12161-19B03

$134.48

3

PIN, CRANK This part replaces 12210-22A02.

12210-22A03

$50.10

4

BEARING (30X39X18)

09263-30033-0B0

$76.77

5

CRANKSHAFT, RH This part replaces 12220-19B20.

12220-19B21

Unavailable

6

CRANKSHAFT LH This part replaces 12261-19B20.

12261-19B21

Unavailable

7

BEARING, RH (15X35X11)

09262-15014

$26.60

8

BEARING, MDL (28X68X18)

09262-28014

$57.95

9

BEARING, LH (35X72X17)

09262-35038

$46.10

10

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

11

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00

Unavailable

12

PIN (4X13.8)

04221-04089

$1.49

13

PISTON

12111-19B01

$77.92

14

RING SET, PISTON

12140-19B10

$41.60

15

PISTON SET (OS:0.5) | OPT

12100-19B00-050

Unavailable

15

PISTON SET (OS:1.0) | OPT

12100-19B00-100

$139.17

16

PIN, PISTON

12151-22A02

$12.15

17

CIRCLIP

09381-16004

$1.58

18

OIL SEAL (22X35X7)

09289-22008

$22.86
