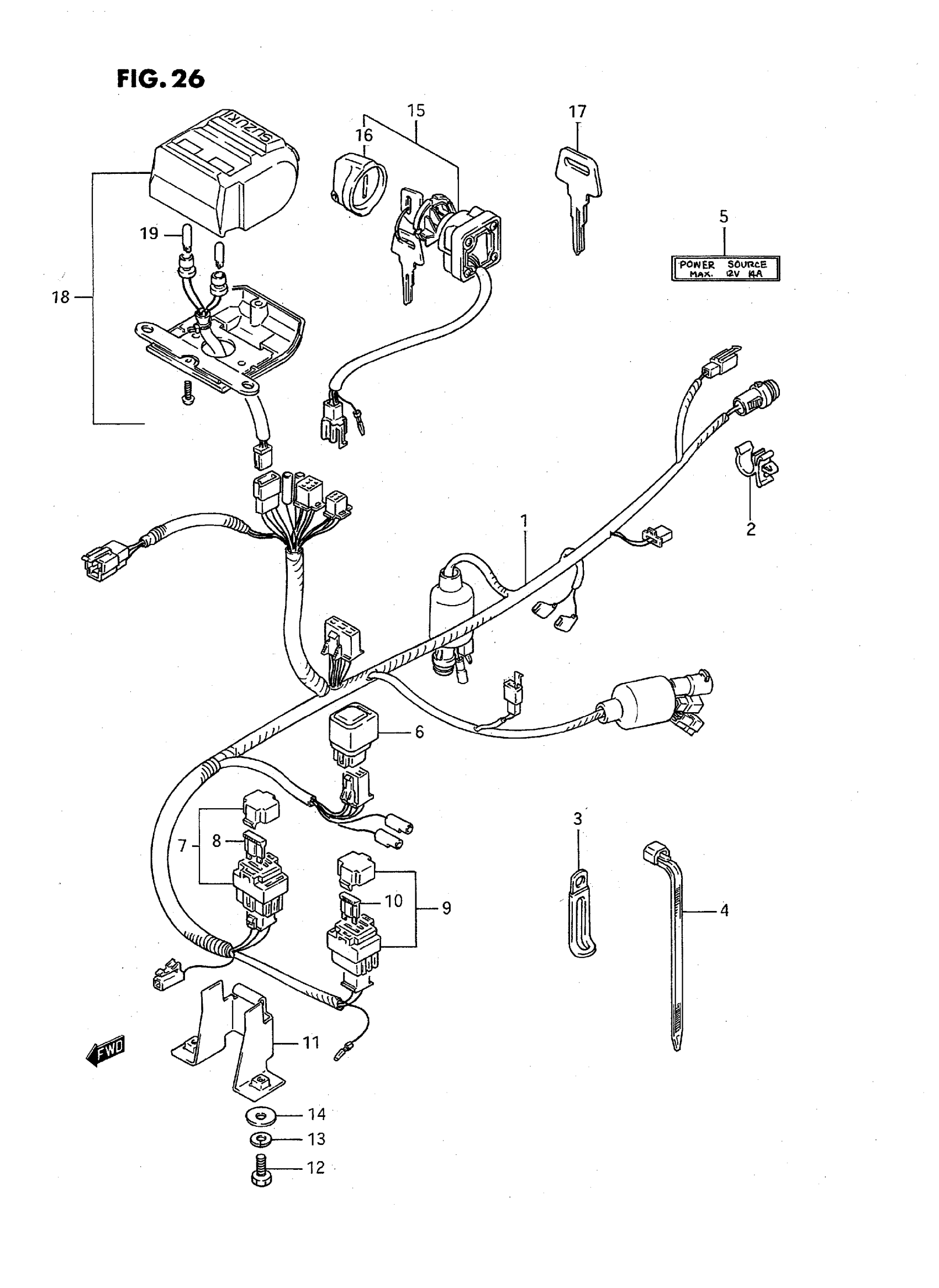

Suzuki LT-F250T (1996) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J/K This part replaces 36610-20B00.

36610-20B10

Unavailable

1

WIRING HARENSS | MODEL L This part replaces 36610-20B20.

36610-20B40

Unavailable

1

WIRING HARENSS | MODEL M/N/P/R

36610-20B40

Unavailable

1

WIRING HARNESS | MODEL S/T This part replaces 36610-20B60.

36610-20B61

Unavailable

2

CLAMP

09403-16307

$2.53

3

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

4

CLAMP (L:240)

09407-25401

$4.66

5

LABEL, CAUTION MAX AMP | MODEL J/K This part replaces 38852-19B00.

38852-19B10

Unavailable

5

LABEL, POWER SOURCE | MODEL L/M/N/P/R/S/T

38852-19B10

Unavailable

6

RELAY ASSY, SIDE STAND | MODEL J/K This part replaces 38640-06B10.

38740-24X50

$45.20

6

RELAY, NEUTRAL START | MODEL L/M/N/P/R/S/T

38730-19B00

$40.44

7

BOX ASSY, MAIN FUSE | Includes Item(s) 8

36740-04701

$22.22

8

FUSE (15A)

09481-15101

$2.53

9

BOX ASSY, POWER SOURCE FUSE | MODEL J/K/L/M/N/P/R This part replaces 36740-19B01.

36740-04701

$22.22

9

BOX ASSY, POWER SOURCE FUSE | MODEL S/T; Includes Item(s) 10

36740-04701

$22.22

10

FUSE (15A)

09481-15101

$2.53

11

HOLDER, ELECTRIC PARTS FRONT

47410-19B00

$12.40

12

BOLT | MODEL J/K/L This part replaces 01107-06166.

01500-0616A

$1.78

12

BOLT (6X12) | MODEL M/N/P/R/S This part replaces 09118-06103.

09118-06055

$2.80

13

LOCK WASHER | MODEL J/K/L This part replaces 08321-21066.

08321-0106A

$1.84

14

WASHER, FRONT | MODEL J/K/L This part replaces 09160-06004.

09160-06134

$1.91

15

SWITCH ASSY,IGN | MODEL J/K/L/M/N/P This part replaces 37110-35B01.

37110-02C01

$116.80

15

SWITCH ASSY,IGN | MODEL R/S/T; Includes Item(s) 16 This part replaces 37110-02C00.

37110-02C01

$116.80

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

17

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

17

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

18

NO DESCRIPTION AVAILABLE | Includes Item(s) 19 This part replaces 36380-35B00.

36380-35B0V

Unavailable

19

BULB (13.5V,2W)

09471-12118

$2.46
