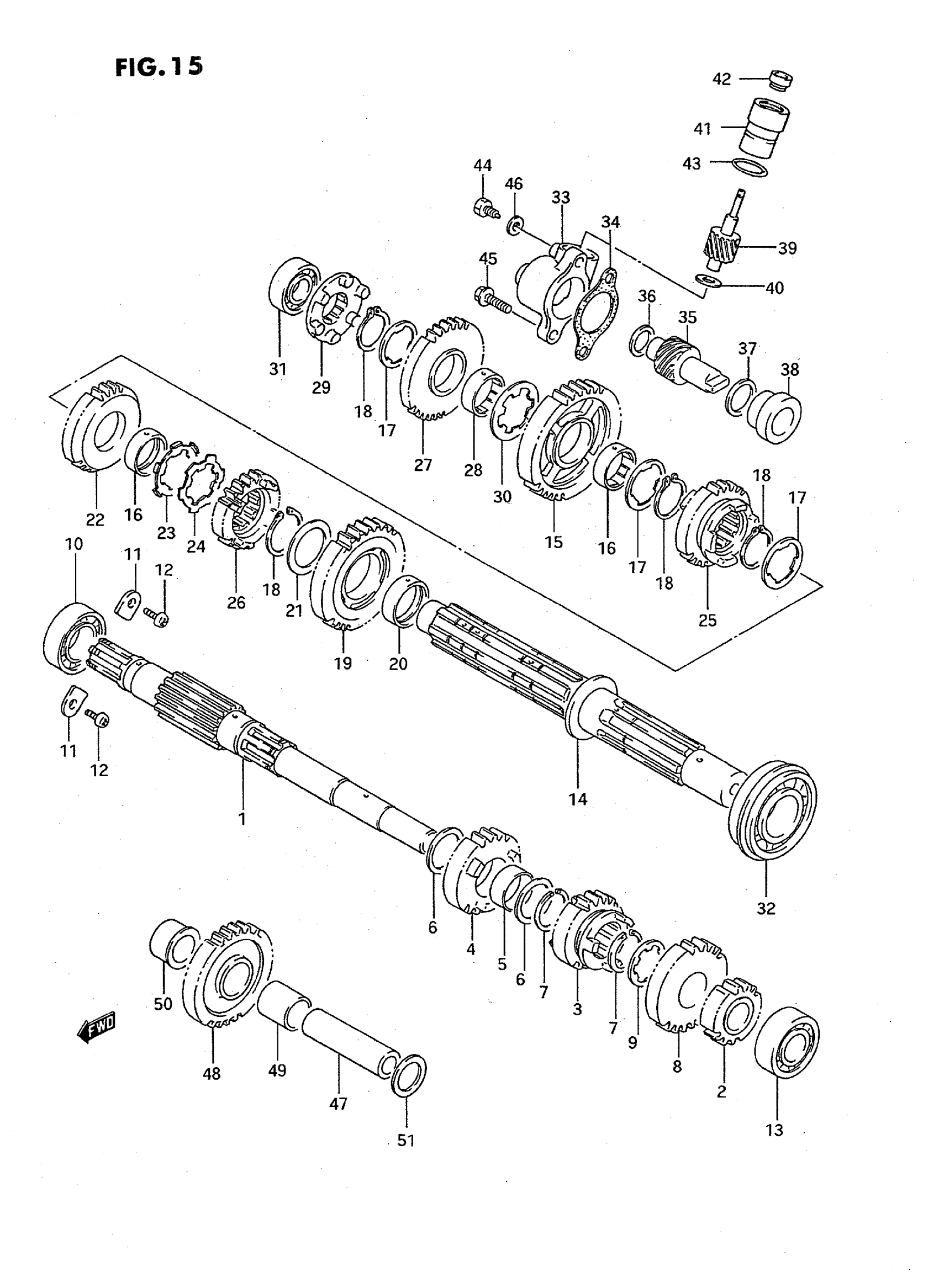

Suzuki LT-F250T (1996) TRANSMISSION (1) Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12) This part replaces 24121-19B01.

24121-19B10

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-18A00

$130.65

3

GEAR,3RD DRIVE This part replaces 24231-18A01.

24231-18A03

$134.75

4

GEAR, 4TH DRIVE (NT:21) This part replaces 24241-18A00.

24241-18A01

$59.74

5

BUSH

09300-22008

$16.03

6

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.80

7

CIRCLIP

09380-22006

$2.80

8

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-18A01.

24251-18A03

$122.07

9

WASHER

09167-22013

Unavailable

10

BEARING, RH

09262-22018

$27.83

11

RETAINER

24741-21A00

$2.80

12

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

13

BEARING, MIDDLE

09267-17002

$98.20

14

DRIVESHAFT This part replaces 24131-19B02.

24131-19B10

Unavailable

15

GEAR, 1ST DRIVEN (NT:37) This part replaces 24311-18A01.

24311-18A02

Unavailable

16

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$21.07

17

LOCK WASHER

09167-25016

$4.03

18

SNAP RING

09380-25003

$2.80

19

GEAR, 2ND DRIVEN (NT:29)

24321-18A01

$127.82

20

BUSH

09300-25020

$18.32

21

WASHER

08211-25351

$4.03

22

GEAR, 3RD DRIVEN (NT:25) This part replaces 24331-19B00.

24331-19B01

$122.62

23

LOCK WASHER

09169-25001

$2.95

24

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

25

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-18A01.

24341-18A02

$124.92

26

GEAR, 5TH DRIVEN (NT:21) This part replaces 24351-18A01.

24351-18A02

$124.92

27

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

Unavailable

28

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

29

DOG

24581-18A00

Unavailable

30

WASHER

09167-25017

$4.20

31

BEARING, RH

09262-17026

$40.18

32

BEARING, MIDDLE

09262-25085

$35.73

33

HOUSING, ODOMETER GEAR

26441-19B01

$71.65

34

GASKET | MODEL J/K/L This part replaces 26451-19B00.

26451-19B12

$4.32

34

GASKET | MODEL M/N This part replaces 26451-19B10.

26451-19B12

$4.32

34

GASKET | MODEL P This part replaces 26451-19B20.

26451-19B12

$4.32

34

GASKET | MODEL R This part replaces 26451-19B10.

26451-19B12

$4.32

34

GASKET | MODEL S/T This part replaces 26451-19B11.

26451-19B12

$4.32

35

GEAR, ODOMETER DRIVE (NT:10)

26461-19B00

Unavailable

36

WASHER, RH

08211-15201

$2.58

37

WASHER, LH

08211-17241

$2.53

38

SPACER

26481-19B00

Unavailable

39

GEAR, ODOMETER DRIVEN (NT:14)

26471-19B00

$46.98

40

WASHER, GEAR SHAFT | MODEL J/K/L/M/N/P/R/S This part replaces 08211-08161.

09181-08167

$1.98

40

WASHER | MODEL T

08211-08151

$1.42

41

SLEEVE

26442-19B00

$45.52

42

OIL SEAL

09289-05002

$7.61

43

O RING (D:1.9,ID:16.6)

09280-17004

$3.98

44

BOLT (6X10) | MODEL J/K/L/M/N/P/R This part replaces 09135-06002.

09135-06501

$2.80

44

BOLT (6X10) | MODEL S/T This part replaces 09135-06013.

09135-06501

$2.80

45

BOLT | MODEL J/K/L/M/N/P

01547-06207

$2.01

45

..BOLT | MODEL R/S/T This part replaces 01547-06203.

01547-0620B

$2.43

46

WASHER (6.2X11X1.2)

09168-06004

$1.43

47

SHAFT, REVERSE IDLE

24551-19B00

Unavailable

48

GEAR, REVERSE IDLE (NT:29)

24561-19B00

Unavailable

49

BUSH

09300-17010

Unavailable

50

SPACER

24562-19B00

Unavailable

51

WASHER, 1ST DRIVEN This part replaces 08211-17281.

09181-17195

$2.81
