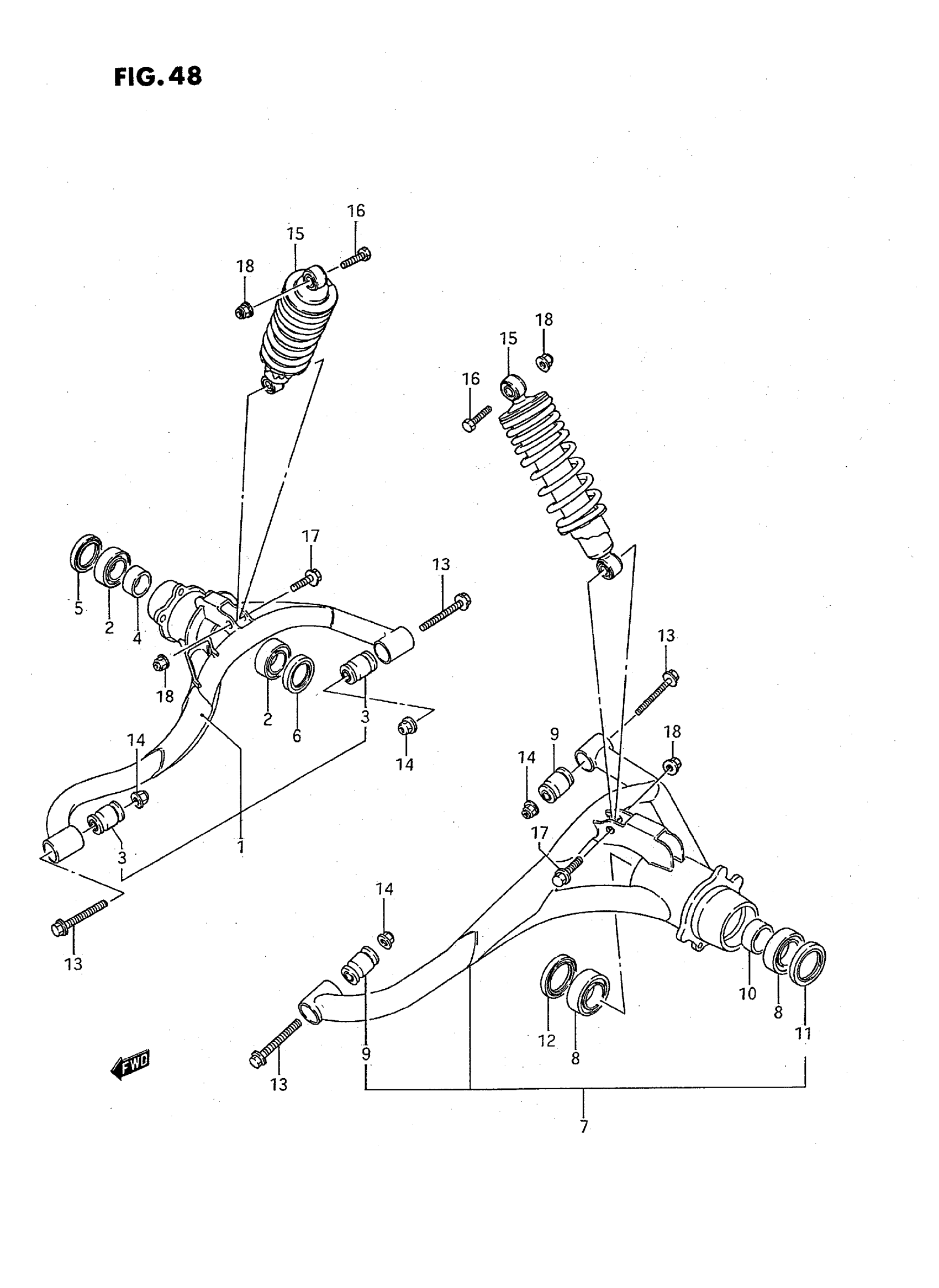

Suzuki LT-F250T (1996) SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, SUSPENSION RH | BLACK; Includes Item(s) 2 - 6

61100-19860-019

Unavailable

2

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$31.25

3

BUSHING

09319-10030

$11.61

4

SPACER (32.4X38X17)

09180-32007

$19.60

5

SEAL, DUST OUTER

09283-40018

$14.74

6

SEAL, DUST INNER

09283-40019

$16.81

7

ARM SET, SUSPENSION LH | BLACK; Includes Item(s) 8 - 12

61100-19871-019

Unavailable

8

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$31.25

9

BUSHING

09319-10030

$11.61

10

SPACER (32.4X38X17)

09180-32007

$19.60

11

SEAL, DUST OUTER

09283-40018

$14.74

12

SEAL, DUST INNER

09283-40019

$16.81

13

BOLT,10X77 | MODEL J/K/L This part replaces 09103-10132.

09103-10247-XC0

$6.02

13

BOLT,10X77 | MODEL M/N/P/R/S/T This part replaces 09103-10247.

09103-10247-XC0

$6.02

14

NUT This part replaces 08319-31105.

08319-3110A

$2.73

15

ABSORBER ASSY, REAR SHOCK | MODEL J/K/L/M/N

62100-19B10-25G

Unavailable

15

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL P/R/S/T This part replaces 62100-19B10-019.

62100-19B20-019

Unavailable

16

BOLT, UPPER

09100-10227

$3.50

17

BOLT, LOWER

09103-10019

$2.63

18

NUT

08319-31107

$2.73
