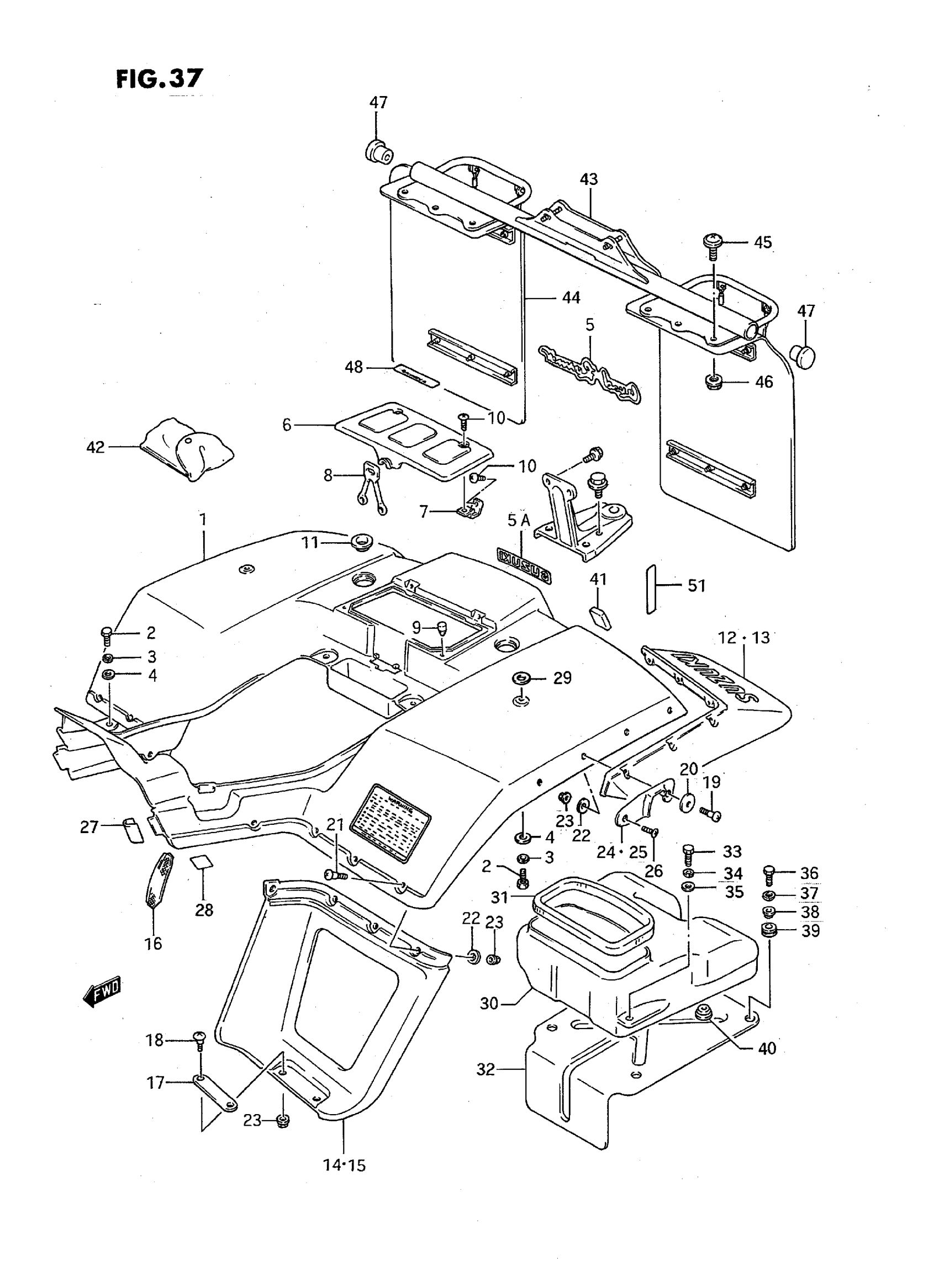

Suzuki LT-F250T (1996) REAR FENDER (MODEL J/K/L) Diagram

#

Description
Price

1

FENDER, REAR (ORANGE) | ->63111-19X50-25G This part replaces 63111-19B00-25G.

63111-19X50-25G

Unavailable

2

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

3

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

4

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

5

EMBLEM, Q.R | MODEL J

68171-19B30-9AJ

Unavailable

5

EMBLEM, Q.R | MODEL K

68251-41B10-0EC

Unavailable

5A

EMBLEM,SUZUKI | MODEL L

68111-19B30-7ZP

Unavailable

6

LID, FENDER

63195-19B00

Unavailable

7

HINGE, LID

63270-19B00

Unavailable

8

BAND, LID

63196-19B00

Unavailable

9

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

10

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

11

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

12

MUD GUARD, RH

63331-18A00

Unavailable

13

MUD GUARD, LH

63341-18A00

Unavailable

14

MUD GUARD, FRONT RH

63351-19B01

Unavailable

15

MUD GUARD, FRONT LH

63361-19B00

Unavailable

16

HEAT SHIELD This part replaces 63355-19B00.

63355-19B10

Unavailable

17

PLATE, FRONT

63341-19B10

Unavailable

18

SCREW

09139-05040

$2.38

19

SCREW, LOWER This part replaces 09139-05036.

09139-05038

$2.06

20

WASHER (6.5X18X1.6) This part replaces 09160-07011.

09160-06109

$1.49

21

SCREW, FRONT

09139-05038

$2.06

22

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

23

NUT This part replaces 09159-05026.

09159-05043

$2.22

24

PLATE, RH

63335-20B00

Unavailable

25

PLATE, LH

63345-20B00

Unavailable

26

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

27

SHEET

63261-19B00

Unavailable

28

SHEET

63262-19B00

Unavailable

29

WASHER (6.5X20X1.2) This part replaces 09160-06038.

09160-06077

$1.91

30

BOX, REAR

47431-19B00

Unavailable

31

MOLDING

92114-19B00

$35.20

32

PLATE

47432-19B02

$52.88

33

BOLT (6X14)

09100-06067

Unavailable

34

LOCK WASHER

08321-01067

$2.13

35

WASHER This part replaces 09160-06006.

09160-06084

$1.78

36

BOLT

01500-06167

$1.97

37

LOCK WASHER

08321-01067

$2.13

38

WASHER

09169-06040

$1.92

39

CUSHION This part replaces 09320-08030.

09320-08511

$2.02

40

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.49

41

CUSHION

63149-19B00

Unavailable

42

TOOL ASSY This part replaces 09800-00343.

09800-21075

$44.50

43

STAY SET, MUD FLAP REAR | OPT; Includes Item(s) 44 - 47

63400-19842

Unavailable

44

MUD FLAP | OPT

63431-19B50

Unavailable

45

SCREW | OPT This part replaces 02152-06165.

02112-0616A

$1.49

46

NUT | OPT This part replaces 08319-31065.

08319-3106A

$2.03

47

PLUG | OPT

09250-10006

$2.38

48

LABEL | MODEL J/K This part replaces 68614-18900.

68391-14D00

Unavailable

49

REFER TO FIG.37A(G-11) FOR

SPECIAL NOTE

Unavailable
