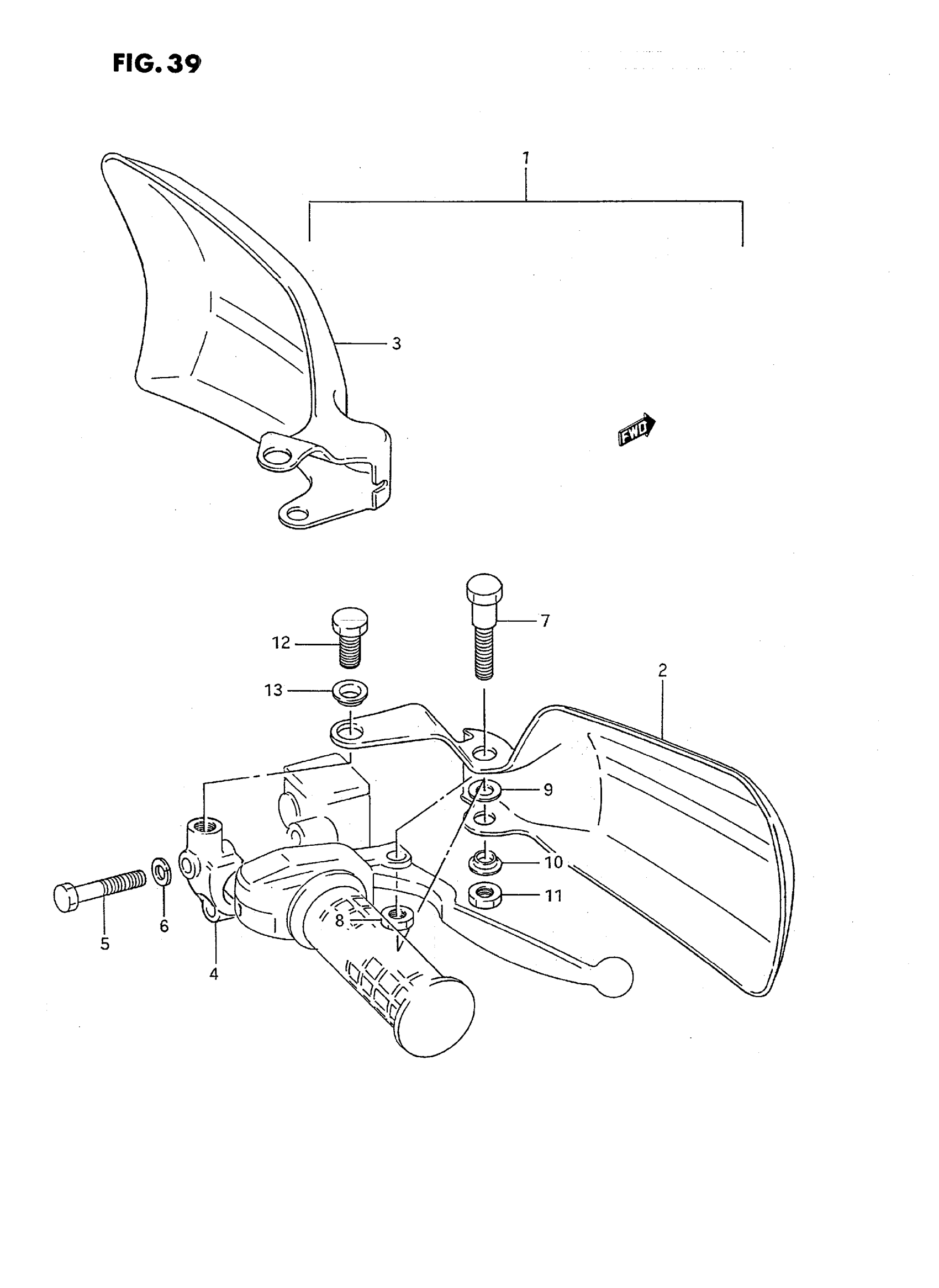

Suzuki LT-F250T (1996) KNUCKLE COVER (OPTIONAL) Diagram

#

Description
Price

1

COVER SET, KNUCKLE (ORANGE) | MODEL J/K/L/M/N This part replaces 57300-19810-25G.

57300-19811-25G

Unavailable

1

COVER SET, KNUCKLE (BLUE) | MODEL P/R/S This part replaces 57300-19810-0VT.

57300-19811-0VT

Unavailable

1

COVER SET, KNUCKLE (GREEN) | MODEL T; Includes Item(s) 2 - 13

57300-19811-1AT

Unavailable

2

COVER, KNUCKLE RH (ORANGE) | MODEL J/K/L/M/N

57341-19B50-25G

Unavailable

2

COVER, KNUCKLE RH (BLUE) | MODEL P/R/S

57341-19B50-0VT

Unavailable

2

COVER, KNUCKLE RH (GREEN) | MODEL T

57341-19B50-1AT

Unavailable

3

COVER, KNUCKLE LH (ORANGE) | MODEL J/K/L/M/N

57541-19B50-25G

Unavailable

3

COVER, KNUCKLE LH (BLUE) | MODEL P/R/S

57541-19B50-0VT

Unavailable

3

COVER, KNUCKLE LH (GREEN) | MODEL T

57541-19B50-1AT

Unavailable

4

HOLDER, MASTER CYLINDER

59671-44300

$17.37

5

BOLT | MODEL J/K/L/M/N/P/R/S This part replaces 01107-06405.

01500-0640B

$2.62

5

BOLT | MODEL T This part replaces 01560-06403.

01560-0640B

$2.92

6

.WASHER This part replaces 08322-11065.

08322-0106B

$2.26

7

BOLT, LEVER PIVOT

57431-14A00

$7.95

8

NUT This part replaces 09159-06068.

09159-06015

$2.02

9

WASHER

09160-06019

$1.49

10

WASHER

09169-06033

$1.50

11

NUT This part replaces 09159-06068.

09159-06015

$2.02

12

BOLT, MIRROR STAY | MODEL J/K/L/M/N/P/R/S

01204-10127

Unavailable

12

BOLT, MIRROR STAY | MODEL T

09104-10036

$3.93

13

WASHER,KNUCKLE COVER UPPER,L This part replaces 09169-10010.

09169-10024

$2.42
