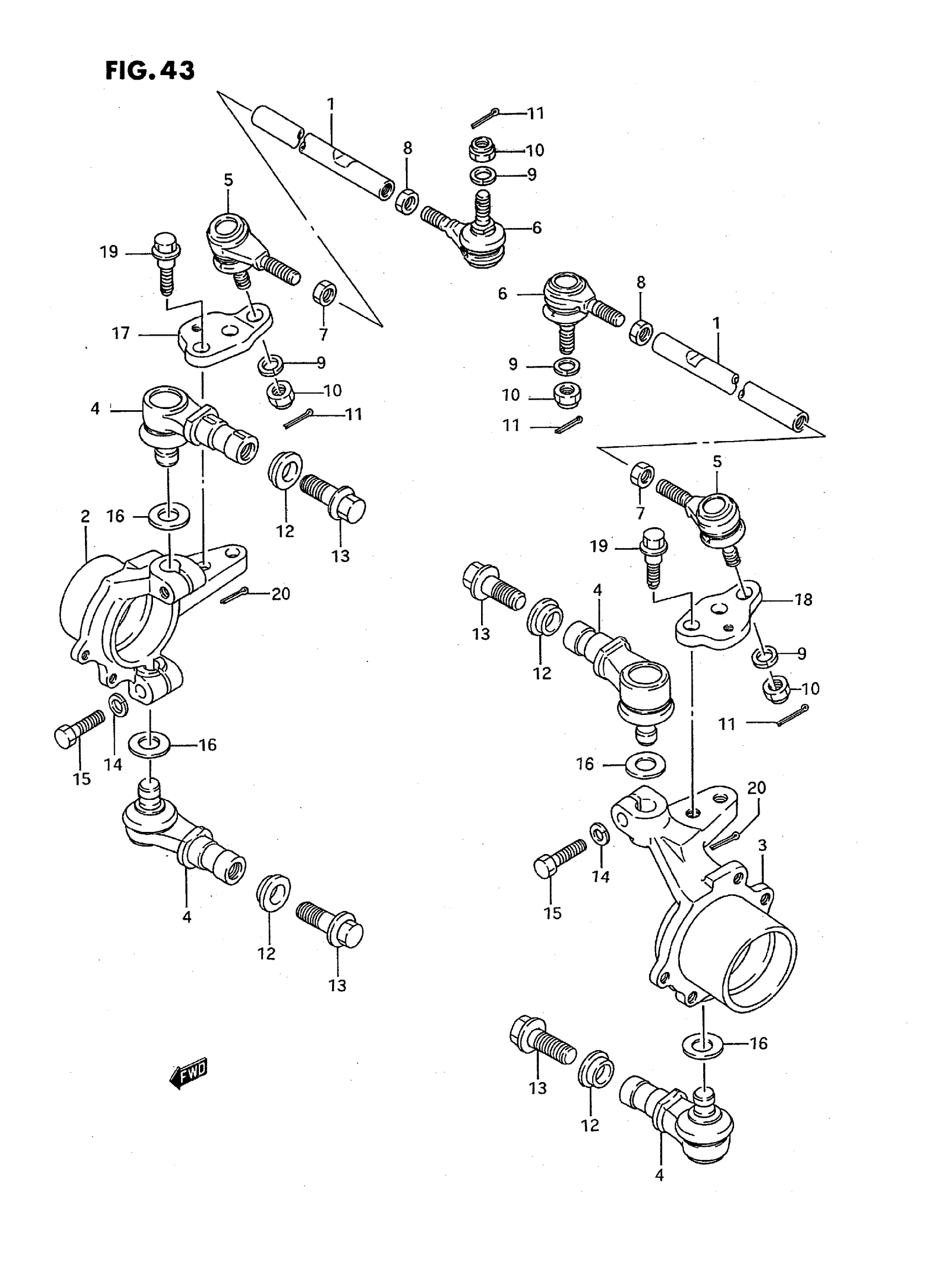

Suzuki LT-F250T (1996) KNUCKLE ARM Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-20B00

Unavailable

2

KNUCKLE, STEERING RH

51231-19B01

Unavailable

3

KNUCKLE, STEERING LH

51241-19B01

Unavailable

4

END,KNUCKLE STE This part replaces 51220-19A01.

51220-19A03

$106.62

5

ROD, END RH This part replaces 51260-41B01.

51260-38F10

$81.22

6

ROD, END LH This part replaces 51270-41B01.

51270-38F10

$81.22

7

NUT | MODEL J/K/L/M/N/P This part replaces 08310-22105.

09140-10043

$2.68

7

NUT, TIE ROD RH THREAD | MODEL R/S/T

09140-10043

$2.68

8

NUT, TIE ROD LH THREAD

09140-10027

$1.49

9

LOCK WASHER | MODEL J/K/L/M/N/P This part replaces 08321-21104.

08321-0110A

$1.84

9

LOCK WASHER, ROD END | MODEL R/S/T

09162-10008

$3.04

10

NUT

09159-10027

$3.10

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

STOPPER, KNUCKLE END BOLT

52418-24500

$8.83

13

BOLT, KNUCKLE STEERING END

09103-14009

$14.73

14

LOCK WASHER | MODEL J/K/L/M/N/P This part replaces 08321-21104.

08321-0110A

$1.84

14

LOCK WASHER, KNUCKLE END | MODEL R/S/T

09162-10008

$3.04

15

BOLT, KNUCKLE

09100-10225

$4.02

16

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

$2.85

17

ARM, KNUCKLE STEERING RH

51232-20B00

Unavailable

18

ARM, KNUCKLE STEERING LH

51242-20B00

Unavailable

19

BOLT, ARM KNUCKLE STEERING

09111-10044

Unavailable

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
