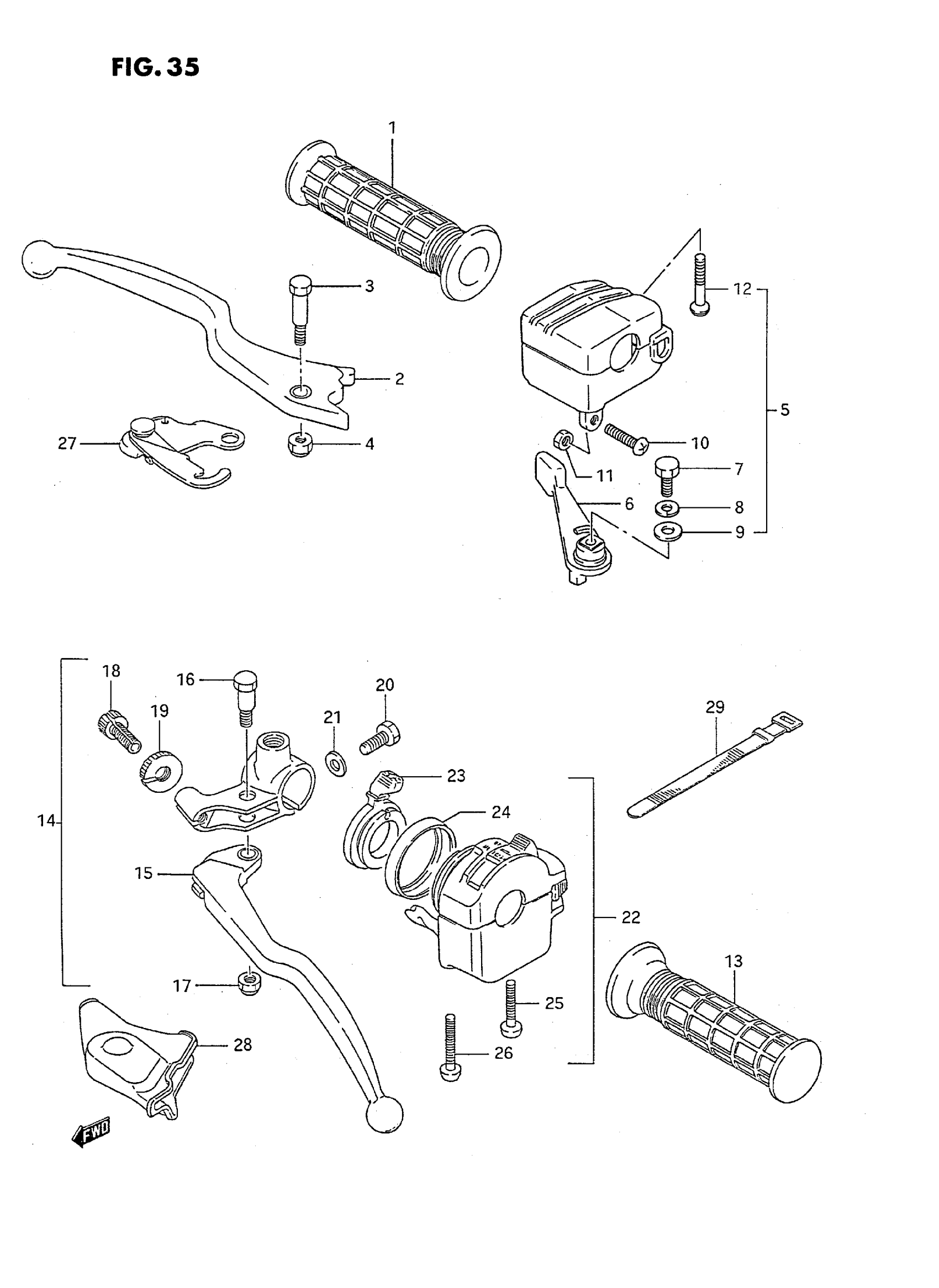

Suzuki LT-F250T (1996) HANDLE SWITCH (MODEL J/K/L) Diagram

#

Description
Price

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

2

LEVER, BRAKE

57420-49101

$34.15

3

BOLT

57431-49100

Unavailable

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

5

CASE ASSY, THROTTLE | Includes Item(s) 6 - 12 This part replaces 57100-18A00.

57100-39DB0

$114.20

6

LEVER

57151-24301

$12.95

7

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

8

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

9

WASHER

09160-06019

$1.49

10

SCREW

09125-05066

$1.65

11

.NUT This part replaces 08310-22055.

09140-05006

$2.19

12

SCREW

02132-05307

$1.50

13

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

14

LEVER ASSY, REAR BRAKE | Includes Item(s) 15 - 21 This part replaces 57500-24501.

57500-24502

Unavailable

15

LEVER This part replaces 57620-24500.

57620-24501

Unavailable

16

BOLT

57431-29502

$7.67

17

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

18

ADJUSTER

57441-44400

$6.28

19

NUT This part replaces 57442-44400.

57442-11010

$2.79

20

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

21

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

22

NO DESCRIPTION AVAILABLE | MODEL J/K This part replaces 37400-19B03.

37400-19B05

Unavailable

22

SWITCH ASSY,HAN | MODEL L; Includes Item(s) 23 - 26 This part replaces 37400-19B10.

37400-19B13

$176.37

23

LEVER, CHOKE

37571-19B01

$12.15

24

COVER, CHOKE

37576-19B01

$6.79

25

SCREW This part replaces 02112-05405.

02112-0540B

$2.70

26

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

27

STOPPER, BRAKE

57790-19B00

Unavailable

28

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$10.23

29

BAND

09407-12402

$3.04

30

REFER TO FIG.35A(G- 6) FOR

SPECIAL NOTE

Unavailable
