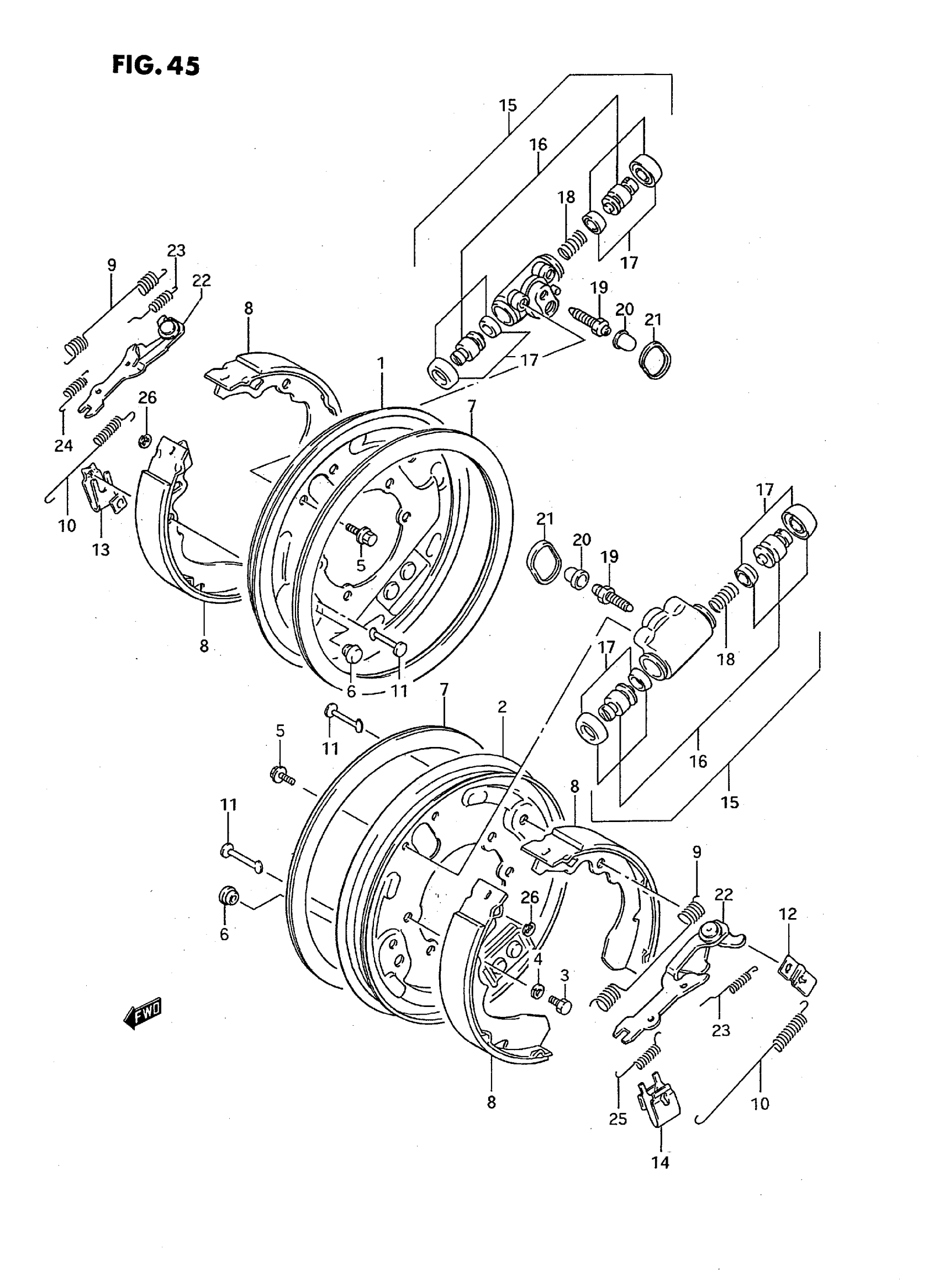

Suzuki LT-F250T (1996) FRONT WHEEL BRAKE (MODEL J/K/L) Diagram

#

Description
Price

1

PLATE, BACKING RH | MODEL J

54510-19B11

Unavailable

1

PLATE, BACKING RH | MODEL K/L

54510-19B20

Unavailable

2

PLATE, BACKING LH | MODEL J

54810-19B11

Unavailable

2

PLATE, BACKING LH | MODEL K/L

54810-19B20

Unavailable

3

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-31086.

08321-0108A

$1.83

5

BOLT This part replaces 53131-82030.

01550-0610A

$1.97

6

PLUG,BACKING PL This part replaces 53141-82030.

53141-84010

$3.08

7

COVER, FRONT BRAKE | MODEL J

54125-19B00

Unavailable

8

SHOE SET, BRAKE | ->54400-19830 This part replaces 54410-19B10.

54400-19830

$41.30

9

SPRING, SHOE RETURN UPPER This part replaces 54531-19B00.

54531-19B01

$9.47

10

SPRING, SHOE RETURN LOWER This part replaces 54532-19B00.

54532-19B01

$9.30

11

PIN, SHOE HOLD DOWN

53241-82030

$2.80

12

SPRING, SHOE HOLD DOWN

53243-85010

$5.80

13

SPRING, SHOE HOLD DOWN RH

53245-82031

$8.37

14

SPRING, SHOE HOLD DOWN LH

53244-82031

$8.48

15

CYLINDER ASSY, REAR WHEEL | Includes Item(s) 16 - 20

54540-19B10

$86.48

16

PISTON SET

54500-19810

Unavailable

17

CUP SET, WHEEL CYLINDER

53400-82811

$14.23

18

SPRING, WHEEL CYLINDER

53432-82030

$4.05

19

PLUG, BLEEDER

54542-19B00

$6.51

20

CAP, BLEEDER

55156-66310

$4.73

21

GASKET, REAR WHEEL CYLINDER

53417-82030

$2.80

22

STRUT ASSY, BRAKE RH

54550-19B10

Unavailable

22

STRUT ASSY, BRAKE LH

54850-19B10

Unavailable

23

SPRING,QUADRANT This part replaces 53714-82030.

53714-8203V

$3.41

24

SPRING, ANTIRATTLE RH This part replaces 54524-19B00.

54524-56B00

$5.80

25

SPRING, ANTIRATTLE LH This part replaces 54824-19B00.

54824-56B00

$4.11

26

E RING This part replaces 53753-85010.

08332-1104A

$1.37

27

REFER TO FIG.45A(H-9) FOR

SPECIAL NOTE

Unavailable
