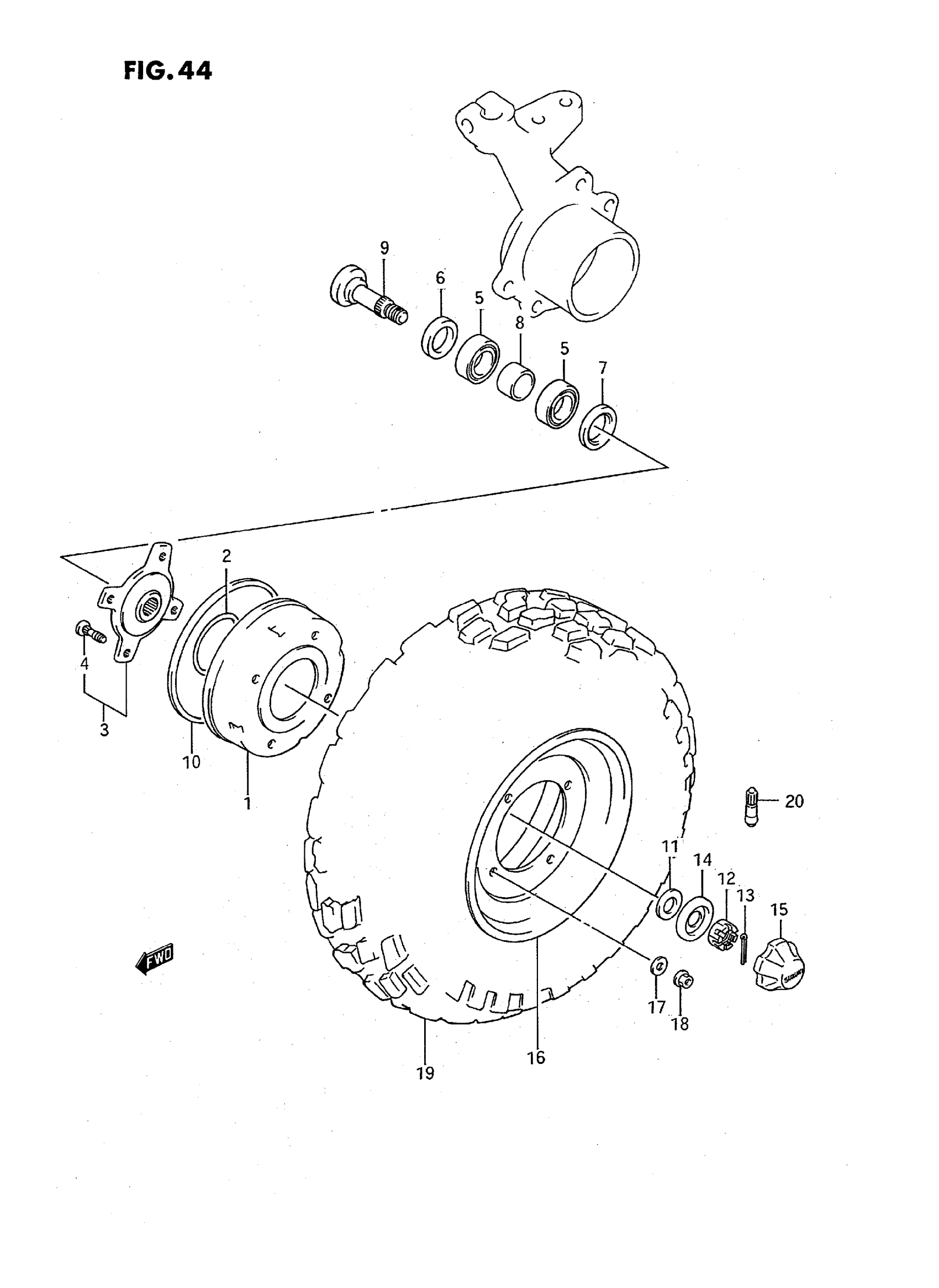

Suzuki LT-F250T (1996) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, BRAKE | MODEL J

54120-19B00

Unavailable

1

DRUM, BRAKE | MODEL K/L/M/N/P/R/S/T

54120-19B10

Unavailable

2

O RING | MODEL K/L/M/N/P/R/S/T

09280-80001

$3.89

3

HUB, FRONT | MODEL J/K/L/M/N/P/R This part replaces 54110-19B00.

54110-19B01

Unavailable

3

HUB, FRONT | MODEL S/T; Includes Item(s) 4

54110-19B01

Unavailable

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

5

BEARING, FRONT HUB

08123-60067

$29.13

6

DUST SEAL, INNER | MODEL J/K/L/M/N/P->09283-38012 This part replaces 09283-38014.

09283-38012

$14.74

6

DUST SEAL, INNER | MODEL R/S/T

09283-38012

$14.74

7

DUST SEAL, OUTER

09283-38013

$11.86

8

SPACER, FRONT HUB

54731-19B00

$11.24

9

AXLE,FRONT This part replaces 54711-20B01.

54711-20B0V

$78.34

10

DUST SEAL, DRUM BRAKE | MODEL J

54124-19B00

Unavailable

10

DUST SEAL, DRUM BRAKE | MODEL K/L/M/N/P/R/S/T

54124-19B10

$71.63

11

WASHER, HUB

09164-18004

$3.76

12

NUT, HUB | MODEL J/K/L/M/N/P->09141-18008 This part replaces 09141-18004.

09141-18008

$8.37

12

NUT, HUB | MODEL R/S/T

09141-18008

$8.37

13

PIN, COTTER | ->04111-40408 This part replaces 04111-40356.

04111-4040A

$1.49

13

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

14

HOLDER, CENTER CAP

64726-19B00

$3.31

15

CAP, WHEEL CENTER | MODEL J/K/L/M/N/P This part replaces 54725-19B00.

54725-39D00

$14.76

15

CAP, WHEEL CENTER | MODEL R/S/T

54725-39D00

$14.76

16

RIM, FRONT WHEEL (SILVER)

55310-20B00-13L

Unavailable

17

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-21108.

08322-01107

$2.15

17

WASHER,10.5X22X | MODEL R/S/T This part replaces 09160-10119.

09160-10143

$2.34

18

NUT, WHEEL SET | MODEL J/K/L/M/N/P This part replaces 08316-16108.

08316-10107

$2.39

18

NUT | MODEL R/S/T This part replaces 08316-10103.

08316-1010B

$2.66

19

TIRE, T/L FRONT (AT22X8-10) | MODEL J/K This part replaces 55100-20B50.

55100-20B51

Unavailable

19

TIRE, T/L FRONT (AT22X8-10) | MODEL L/M/N/P/R/S/T

55100-20B51

Unavailable

20

VALVE ASSY, WHEEL RIM | ->43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

20

VALVE ASSY, WHEEL RIM

43130-78030

$9.25
