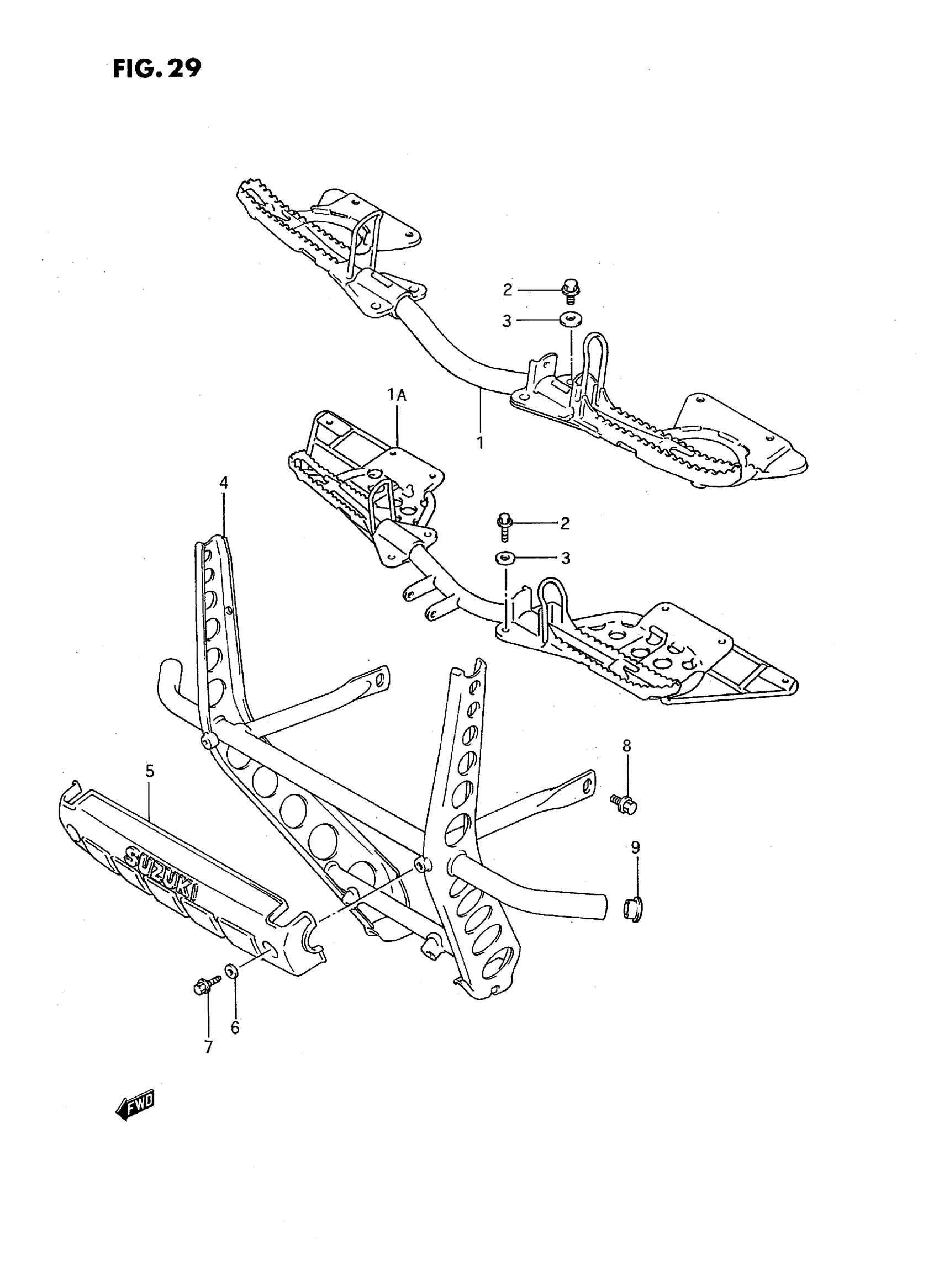

Suzuki LT-F250T (1996) FOOTREST Diagram

#

Description
Price

1

TUBE, FRONT FOOTREST | MODEL J/K/L This part replaces 43510-20B00.

43510-39DV0

Unavailable

1A

TUBE, FRONT FOOTREST | MODEL M/N/P/R This part replaces 43510-19B80.

43510-39DV0

Unavailable

1A

TUBE, FRONT FOOTREST | MODEL S/T This part replaces 43510-39D50.

43510-39DV0

Unavailable

2

BOLT

09103-08171

$3.67

2

BOLT, FRONT RH

09103-08259

$4.50

3

WASHER | MODEL J/K/L/M/N/P/R/S

09160-08093

Unavailable

3

WASHER | MODEL T

09160-08501

$2.28

4

GRIP, FRONT | MODEL J/K/L/M/N/P/R This part replaces 43990-19B02.

43990-19B22

Unavailable

4

GRIP, FRONT | MODEL S/T

43990-19B22

Unavailable

5

RUBBER

43976-19B00

Unavailable

6

WASHER | MODEL J/K/L/M/N/P/R This part replaces 09169-05011.

09169-05024

$2.06

6

WASHER | MODEL S/T This part replaces 09169-05021.

09169-05024

$2.06

7

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-05125.

01550-0512B

$2.87

7

BOLT | MODEL R/S This part replaces 01550-05123.

01550-0512B

$2.87

7

SCREW | MODEL T This part replaces 02162-05123.

02162-0512A

$1.98

8

BOLT (8X16) | MODEL J/K/L/M/N/P This part replaces 01517-08165.

01550-0816A

$2.32

8

BOLT (8X16) | MODEL R/S/T This part replaces 01550-08163.

01550-0816A

$2.32

9

CAP | MODEL J/K/L/M/N/P/R

43978-18900

Unavailable

9

CAP | MODEL S/T

09250-18003

$2.45
