1996 Suzuki LT-F250T Crankcase Diagram

← All diagrams

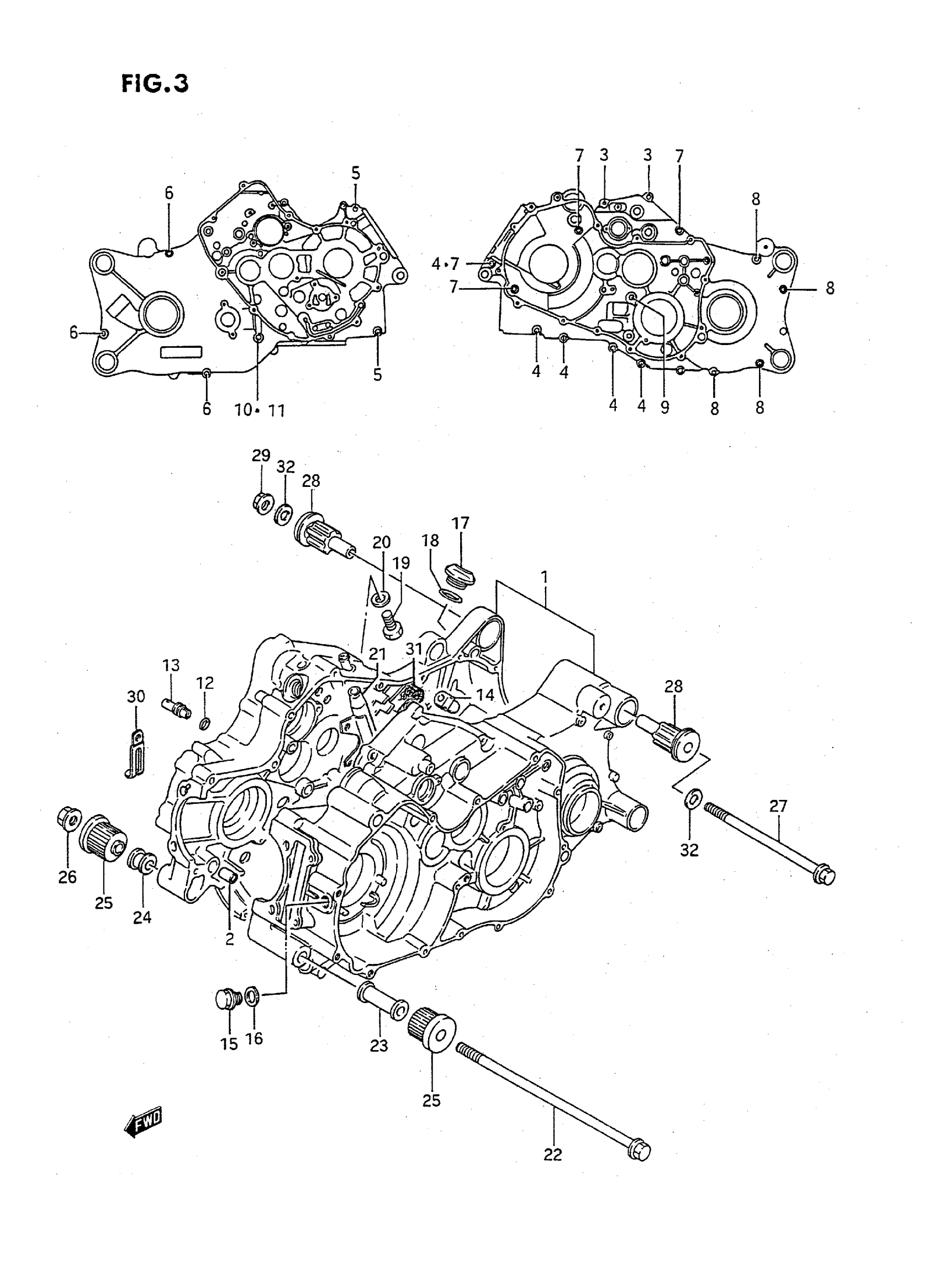

Find the part on the Crankcase diagram for your 1996 Suzuki LT-F250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki LT-F250T Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 11300-20880.

11301-20816

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 11300-20881.

11301-20816

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 11301-20810.

11301-20816

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 11301-20813.

11301-20816

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL P/R/S/T; Includes Item(s) 2 - 14 This part replaces 11301-20814.

11301-20816

1
Out of stock

2

PIN (10.4X13X22) | MODEL J/K/L/M/N/P

09206-13004

2
Out of stock

2

PIN (10.4X13X18) | MODEL R/S/T

04211-13189

2
Out of stock

3

BOLT | MODEL J/K/L/M/N/P

01547-06307

2
Out of stock

3

BOLT, FINAL GEAR CASE | MODEL R/S/T This part replaces 01547-06303.

01547-0630B

2
Out of stock

4

BOLT | MODEL J/K/L/M/N/P

01547-06407

4
Out of stock

4

BOLT | MODEL R/S/T This part replaces 01547-06403.

01547-0640B

4
Out of stock

5

BOLT | MODEL J/K/L/M/N/P

01547-06457

2
Out of stock

5

BOLT | MODEL R/S/T This part replaces 01547-06453.

01547-0645B

2
Out of stock

6

BOLT | MODEL J/K/L/M/N/P

01547-06507

3
Out of stock

6

BOLT | MODEL R/S/T This part replaces 01547-06503.

01547-0650B

3
Out of stock

7

BOLT | MODEL J/K/L/M/N/P

01547-06657

4
Out of stock

7

BOLT | MODEL R/S/T This part replaces 01547-06653.

01547-0665B

4
Out of stock

8

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06907.

01547-0690B

4
Out of stock

8

BOLT | MODEL R/S/T This part replaces 01547-06903.

01547-0690B

4
Out of stock

9

BOLT This part replaces 09103-08072.

09103-08363

1
Out of stock

10

BOLT (8X60)

09103-08217

1
Out of stock

11

GASKET

09168-08021

1
Out of stock

12

O RING, OIL GALLERY JET

09280-04004

1
Out of stock

13

JET, OIL GALLERY

09493-36004

1
Out of stock

14

HOSE, BREATHER INLET | MODEL K

11329-19B30

1
Out of stock

15

PLUG, TDC

09247-14015

1
Out of stock

16

GASKET

09168-14002

1
Out of stock

17

CAP, OIL FILLER

09200-30810

1
Out of stock

18

O RING (D:3.1,ID:26.4) | MODEL J/K/L/M/N/P/R This part replaces 09280-27002.

09280-26006

1
Out of stock

18

O RING | MODEL S/T

09280-26006

1
Out of stock

19

BOLT | MODEL J/K/L/M/N/P This part replaces 01107-12208.

01500-1220B

1
Out of stock

19

BOLT | MODEL R/S/T This part replaces 01500-12203.

01500-1220B

1
Out of stock

20

GASKET

09168-12002

1
Out of stock

21

PIPE, BREATHER | MODEL J

11380-19B02

1
Out of stock

21

PIPE, BREATHER | MODEL K/L/M/N/P/R/S/TINCLUDED 11301-20814 This part replaces 11380-19B30.

11380-19B41

1
Out of stock

22

BOLT (12X300)

09103-12016

1
Out of stock

23

SPACER (L:60)

11610-19B00

1
Out of stock

24

SPACER | MODEL J/K/L/M/N This part replaces 11611-19B10.

11611-19B13

1
Out of stock

24

SPACER | MODEL P/R/S This part replaces 11611-19B12.

11611-19B13

1
Out of stock

24

SPACER | MODEL T This part replaces 11611-17E00.

11611-19B13

1
Out of stock

25

BUSH (L:39) | MODEL J This part replaces 11681-19B00.

11681-20B00

2
Out of stock

25

BUSH (L:41) | MODEL K/L/M/N/P/R/S/T

11681-20B00

2
Out of stock

26

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

27

BOLT (10X190) | MODEL J/K

09103-10155

2
Out of stock

27

BOLT (10X240) | MODEL L/M/N/P/R/S/T

09103-10221

2
Out of stock

28

BUSH (L:85)

11650-19B10

4
Out of stock

29

NUT, REAR SWGARM BRACKET | MODEL J/K This part replaces 09159-10058.

09159-10115

2
Out of stock

29

NUT | MODEL L/M/N/P/R/S/T

09159-10047

2
Out of stock

30

CLAMP | MODEL J/K This part replaces 09404-06413.

09404-06039

1
Out of stock

31

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 11186-19B30.

11186-19B31

2
Out of stock

32

WASHER, KNUCKLE END | MODEL L/M/N/P This part replaces 08322-11104.

08322-0110A

4
Out of stock

32

WASHER, KNUCKLE END | MODEL R/S/T This part replaces 08322-01103.

08322-0110A

4
Out of stock
