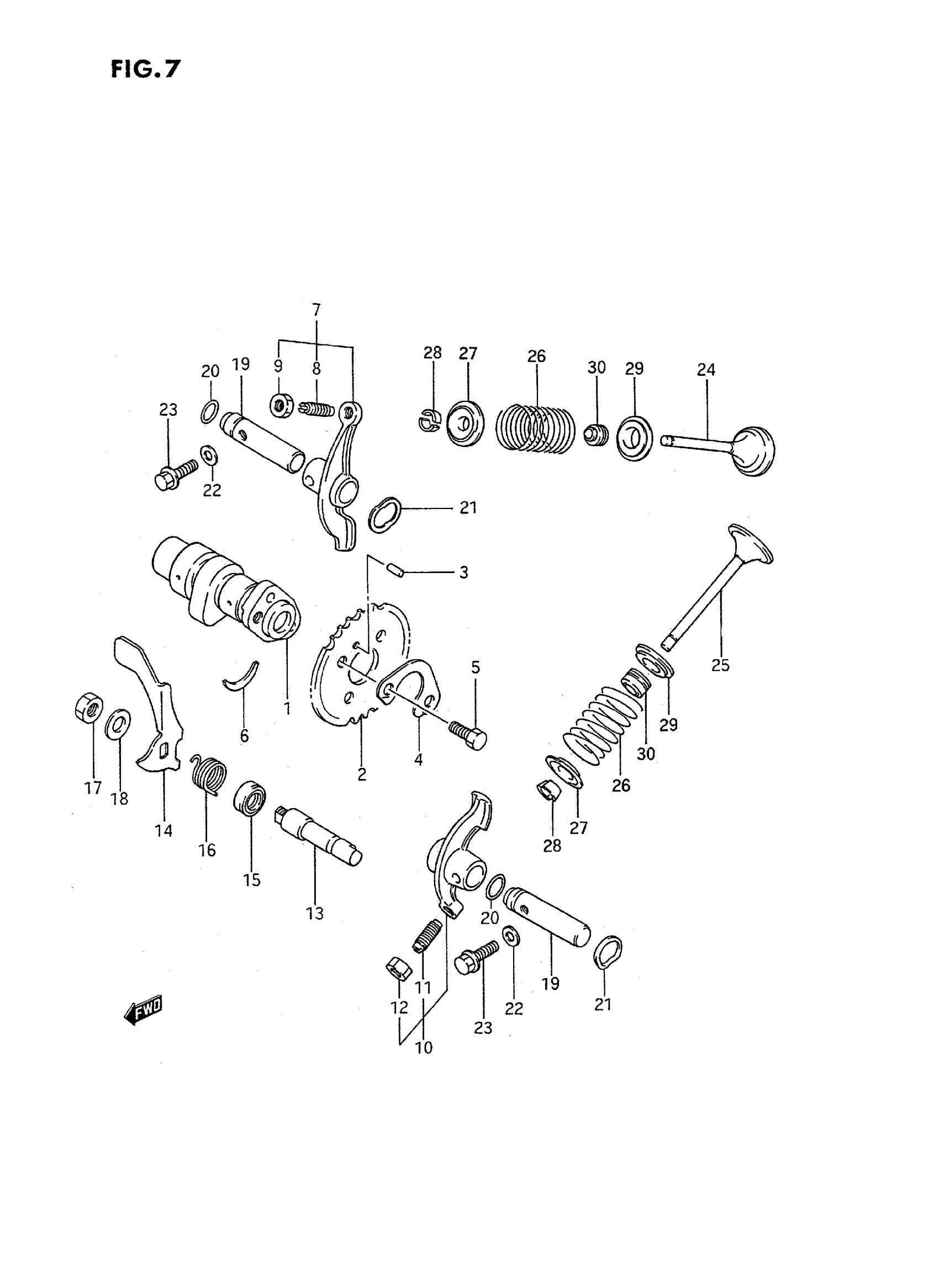

Suzuki LT-F250T (1996) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-18A00

$203.53

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$25.93

3

PIN

09261-05005

$1.48

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.63

5

BOLT (6X10.5)

09111-06032

$2.19

6

C-RING

09390-22002

$2.33

7

ARM ASSY, VALVE ROCKER | MODEL J/K This part replaces 12840-05200.

12850-25C00

$41.29

7

ARM ASSY, VALVE ROCKER | MODEL L/M/N This part replaces 12840-25C00.

12850-25C00

$41.29

7

ARM ASSY, VALVE ROCKER | MODEL P/R This part replaces 12850-24400.

12850-25C00

$41.29

7

ARM ASSY, VALVE ROCKER | MODEL S/T; Includes Item(s) 8 - 9

12850-25C00

$41.29

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.16

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM ASSY, VALVE ROCKER | MODEL J/K This part replaces 12850-24400.

12850-25C00

$41.29

10

ARM ASSY, VALVE ROCKER | MODEL L/M/N

12850-25C00

$41.29

10

ARM ASSY, VALVE ROCKER | MODEL P/R This part replaces 12850-24400.

12850-25C00

$41.29

10

ARM ASSY, VALVE ROCKER | MODEL S/T; Includes Item(s) 11 - 12

12850-25C00

$41.29

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.16

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT, DECOMP

12941-19B00

$33.02

14

LEVER, DECOMP SHAFT | MODEL J/K/L/M/N/P/R This part replaces 12942-19B00.

12942-19B01

$6.32

14

LEVER, DECOMP SHAFT | MODEL S/T

12942-19B01

$6.32

15

OIL SEAL

09282-10014

$6.23

16

SPRING

09448-17014

$4.42

17

NUT, ADJUSTER | MODEL J/K/L/M/N/P This part replaces 08310-22085.

09140-08021

$2.87

17

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.94

17

NUT | MODEL S/T This part replaces 08316-10083.

08316-1008B

$2.74

18

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-11084.

08322-0108A

$2.18

18

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$2.18

19

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

20

.O RING (D:1.9,ID:8.6)

09280-09005

$3.44

21

WASHER

09164-12021

$2.09

22

GASKET

09168-06023

$2.09

23

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06254.

01550-0625A

$2.01

23

BOLT | MODEL R/S/T This part replaces 01550-06253.

01550-0625A

$2.01

24

VALVE, INTAKE

12911-19B00

$38.85

25

VALVE, EXHAUST

12912-18A00

$61.11

26

SPRING, VALVE

12921-19B00

$16.77

27

RETAINER, SPRING This part replaces 12931-19B00.

12931-19B01

$13.50

28

COTTER, VALVE

12932-24400

$2.05

29

SEAT, SPRING

12933-19B00

$9.37

30

OIL SEAL (5.5X11X8.2) | MODEL J/K/L/M/N/P This part replaces 09289-05003.

09289-05015

$6.23

30

OIL SEAL | MODEL R/S/T

09289-05015

$6.23
