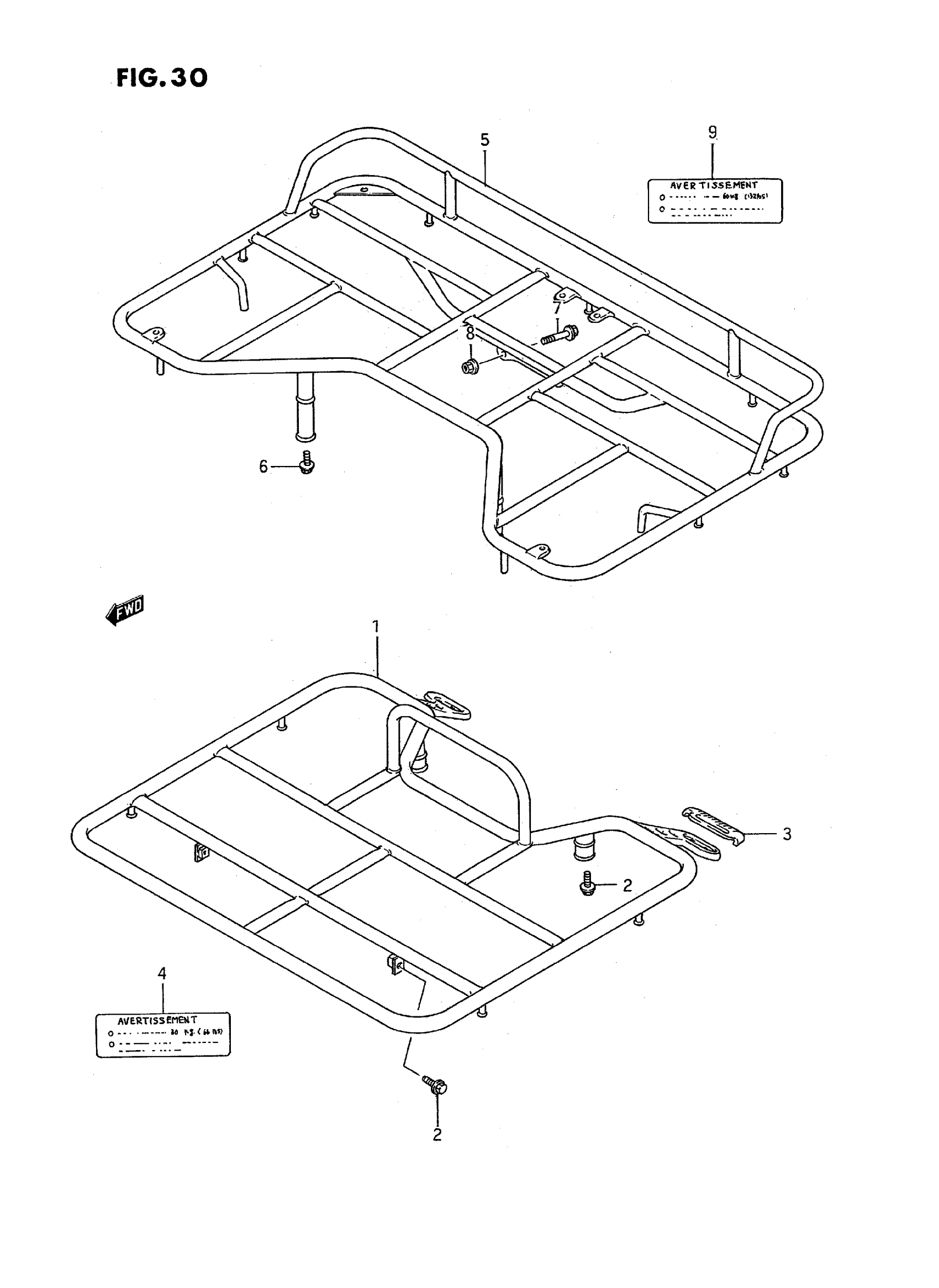

Suzuki LT-F250T (1996) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT | MODEL J/K/L This part replaces 46410-20B00.

46410-39D50

Unavailable

1

CARRIER, FRONT | MODEL M/N/P/R/S This part replaces 46410-20B01.

46410-39D50

Unavailable

1

CARRIER, FRONT | MODEL T

46410-39D50

Unavailable

2

BOLT (8X16) | MODEL J/K/L/M/N/P This part replaces 01517-08165.

01550-0816A

$2.32

2

BOLT (8X16) | MODEL R/S/T This part replaces 01550-08163.

01550-0816A

$2.32

3

KNEE PAD, FRONT CARRIER

46480-19B00

Unavailable

4

LABEL,REAR CARR | MODEL J/K This part replaces 68381-24500.

68391-19B01

$5.60

4

LABEL,FRONT CAR | MODEL L/M/N/P/R/S/T This part replaces 68381-19B00.

68381-19B01

$5.42

5

CARRIER, REAR | MODEL J/K/L This part replaces 46310-20B00.

46310-39D50

Unavailable

5

CARRIER, REAR | MODEL M/N/P/R/S This part replaces 46310-20B01.

46310-39D50

Unavailable

5

CARRIER, REAR | MODEL T

46310-39D50

Unavailable

6

BOLT (8X12) | MODEL J/K/L/M/N/P This part replaces 01550-08123.

01550-0812A

$2.32

6

BOLT (8X16) | MODEL R/S/T This part replaces 01550-08163.

01550-0816A

$2.32

7

BOLT,8X50 | MODEL J/K/L/M/N/P/R/S This part replaces 09103-08082.

09103-08395

$3.68

7

BOLT, REAR | MODEL T

09103-08332

$4.60

8

NUT This part replaces 08319-31085.

08319-3108A

$2.32

9

LABEL,FRONT CAR | MODEL J/K This part replaces 68391-24500.

68381-19B01

$5.42

9

LABEL,REAR CARR | MODEL L/M/N/P/R/S/T This part replaces 68391-19B00.

68391-19B01

$5.60
