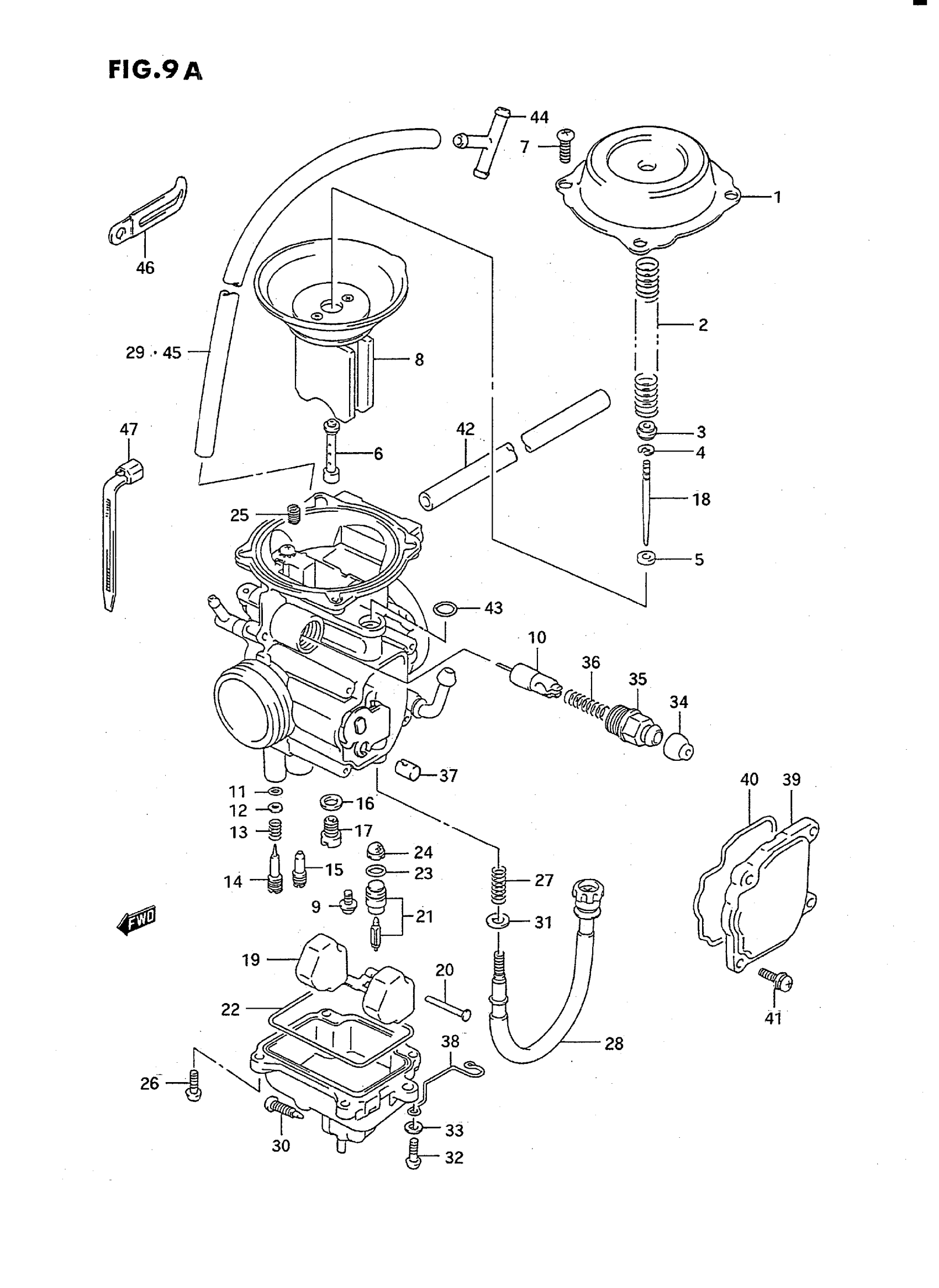

Suzuki LT-F250T (1996) CARBURETOR (MODEL L/M/N/P/R/S/T) Diagram

#

Description
Price

CARBURETOR ASSY | MODEL L->13200-19B62W/09359-50823-00A 1PC This part replaces 13200-19B60.

13200-19B65

Unavailable

CARBURETOR ASSY | MODEL M/N This part replaces 13200-19B62.

13200-19B65

Unavailable

CARBURETOR ASSY | MODEL P/R ~F.NO.2102207 This part replaces 13200-19B63.

13200-19B65

Unavailable

CARBURETOR ASSY | MODEL R/S F.NO.2102208~ This part replaces 13200-19BA0.

13200-19BA3

Unavailable

CARBURETOR ASSY | MODEL T; Includes Item(s) 1 - 42 This part replaces 13200-19BA1.

13200-19BA3

Unavailable

1

COVER

13502-42A00

$43.42

2

SPRING

13417-42A00

$6.39

3

RING

13382-42A00

$4.09

4

E RING

13394-10010

$6.15

5

RING

13387-47010

$6.80

6

JET, NEEDLE (P-4)

09494-00512

Unavailable

7

SCREW | MODEL L/M/N/P/R/S This part replaces 02112-04083.

02112-0408A

$1.09

7

SCREW | MODEL T

02112-04087

$1.10

8

DIAPHRAGM ASSY | MODEL L/M/N This part replaces 13500-19B50.

13500-19B63

Unavailable

8

DIAPHRAGM ASSY | MODEL P/R/S This part replaces 13500-19B61.

13500-19B63

Unavailable

8

DIAPHRAGM ASSY | MODEL T This part replaces 13500-19B62.

13500-19B63

Unavailable

9

SCREW

13602-43410

$2.80

10

PLUNGER ASSY

13411-19B50

$14.05

11

O-RING This part replaces 13295-29900.

13295-29901

$3.97

12

WASHER

13291-29900

$1.87

13

.SPRING (NT:45)

13268-47070

$3.97

14

SCREW, PILOT (2 7/8)

13279-47070

$12.24

15

JET, PILOT (40)

09492-40014

$8.58

16

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

17

JET, MAIN (122.5)

09491-24013

$12.38

18

NEEDLE, JET (J8-5D67)

13383-19B60

Unavailable

19

FLOAT

13250-42A00

$31.21

20

PIN

13254-92311

$2.31

21

VALVE ASSY, NEEDLE (2.0) | MODEL L/M/N/P/R/S This part replaces 13370-42A10.

13370-44500

$46.66

21

VALVE ASSY, NEEDLE | MODEL T

13370-44500

$46.66

22

O RING, FLOAT CHAMBER

13251-42A00

$8.27

23

O RING This part replaces 13374-44080.

13374-35C00

$5.48

24

FILTER This part replaces 13376-84110.

13376-19F00

$9.41

25

JET, PILOT AIR (160)

09493-32002

$18.00

26

SCREW | MODEL L/M/N/P/R/S This part replaces 13602-05A40.

02112-0412A

$1.24

26

SCREW | MODEL T This part replaces 02112-04123.

02112-0412A

$1.24

27

SPRING

13268-19B50

$4.83

28

ADJUSTER | MODEL L This part replaces 13267-19B50.

13260-19BV0

Unavailable

28

ADJUSTER | MODEL M/N/P/R/S/T

13267-19B70

$47.72

29

HOSE (5X8X2000) | MODEL L This part replaces 13684-19B00.

09351-50803-00B

$8.21

30

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

31

WASHER

13615-45010

$3.67

32

SCREW | MODEL L/M/N/P/R/S This part replaces 02112-04166.

02112-0416A

$1.24

32

SCREW | MODEL T This part replaces 02112-04163.

02112-0416A

$1.24

33

WASHER | MODEL L/M/N/P/R/S This part replaces 13606-02340.

08322-0104A

$1.92

33

WASHER | MODEL T This part replaces 08322-01043.

08322-0104A

$1.92

34

.CAP This part replaces 13681-04010.

13681-04011

$4.51

35

HOLDER, GUIDE

13418-43410

$6.61

36

SPRING

13417-43010

$3.97

37

GUIDE, CABLE

13591-19B50

$9.41

38

CLIP | MODEL L

13692-19B50

Unavailable

38

CLIP | MODEL M/N/P/R/S/T

13692-19B60

Unavailable

39

COVER

13502-19B50

$22.68

40

O RING

13251-19B50

$13.90

41

SCREW

13602-19B50

$3.14

42

HOSE(4.5X8.5X60 | MODEL R/S F.NO.2102208~ This part replaces 09354-45853-600.

09355-45001-600

$8.55

43

O RING (D:1.7,ID:6.0) This part replaces 09280-06009.

09280-06008

$2.06

44

UNION, 3 WAY

09367-08004

$5.25

45

HOSE, AIR VENT | MODEL M/N/P/R/S/TL:2000->650

09359-50823-00B

Unavailable

46

CLAMP, AIR VENT HOSE | MODEL M/N/P/R This part replaces 09404-06419.

09404-06435

$4.00

46

CLAMP, AIR VENT HOSE | MODEL S/T

09404-06435

$4.00

46

CLAMP, BOOST HOSE | MODEL S/T

09404-06429

$1.82

47

CLAMP, BOOST HOSE | MODEL S/T

09407-14403

$2.24
