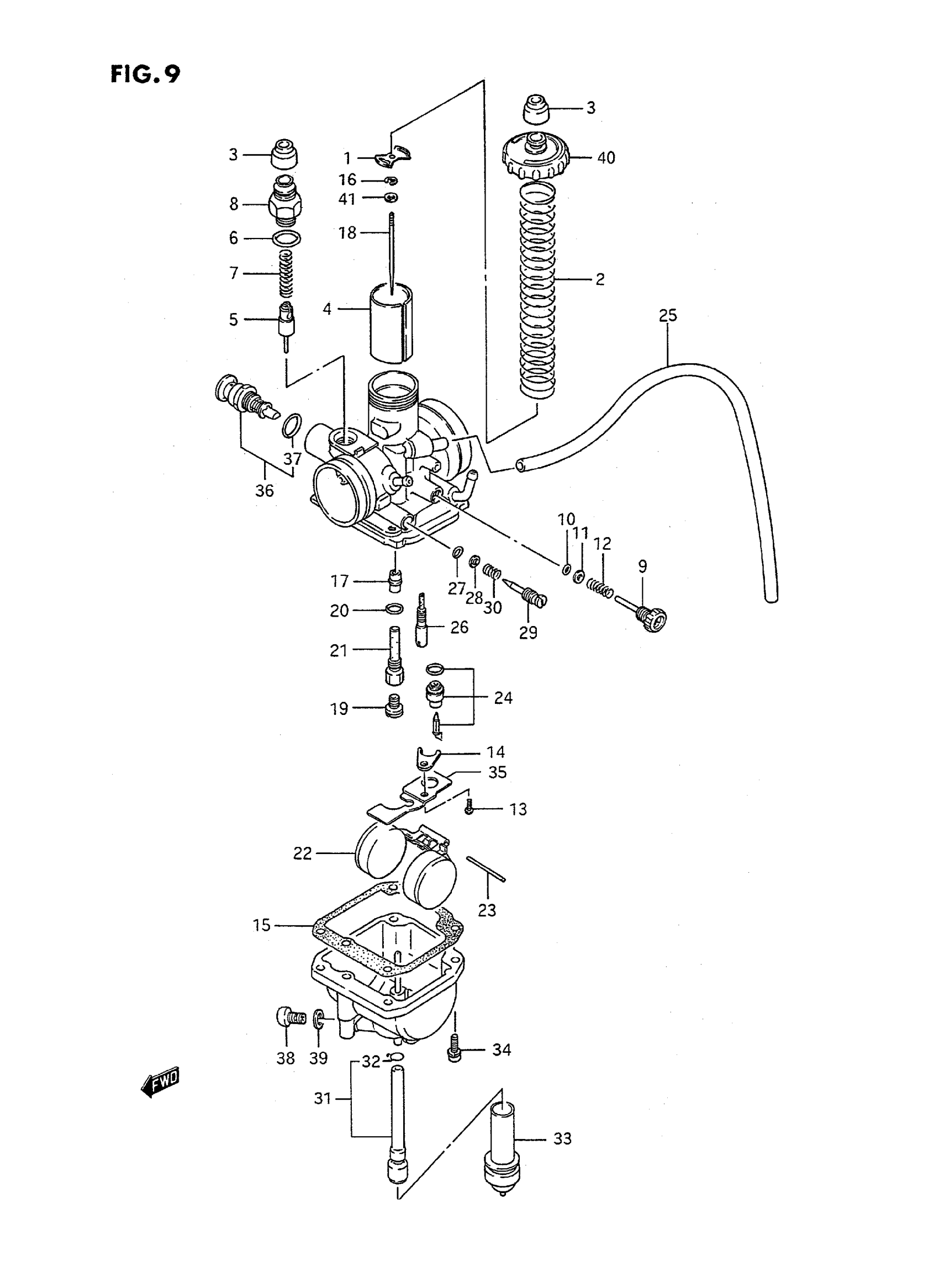

Suzuki LT-F250T (1996) CARBURETOR (MODEL J/K) Diagram

CARBURETOR ASSY | Includes Item(s) 1 - 41 This part replaces 13200-19B01.

13200-19B02

Unavailable

SEAT, SPRING

13581-09210

$6.55

SPRING, THROTTLE VALVE

13573-05320

Unavailable

.CAP This part replaces 13681-04010.

13681-04011

$4.93

VALVE, THROTTLE (CA:1.5)

13551-19B01

Unavailable

PLUNGER

13411-24500

$22.41

O RING

13278-02330

$2.82

SPRING

13417-37200

$3.56

CAP, PLUNGER

13418-43200

$10.48

SCREW

13267-16700

$14.85

O RING

13295-33010

$4.48

WASHER

13291-35010

$3.56

SPRING

13268-35010

$4.48

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

PLATE

13373-46710

$6.17

GASKET

13251-05320

$7.69

E RING

13394-10010

$5.45

JET, NEEDLE (O-1)

09494-00540

$25.33

NEEDLE, JET (5L21-3)

13383-19B00

Unavailable

JET, MAIN (100)

09491-20017

$9.69

.O RING This part replaces 13246-43010.

13246-43011

$4.34

PIPE, BLEEDER

13385-47030

Unavailable

FLOAT

13250-05230

$26.91

.PIN, FLOAT

13254-01010

$3.62

VALVE ASSY, NEEDLE This part replaces 13370-19B00.

13370-05320

$62.80

HOSE (5X8X2000) This part replaces 13684-19B00.

09351-50803-00B

$9.10

JET, PILOT (22.5) This part replaces 09492-22003.

09492-22008

$14.85

O-RING This part replaces 13295-29900.

13295-29901

$4.34

GASKET

13291-29900

$1.98

SCREW, PILOT (2 7/8) This part replaces 13279-47080.

13279-47070

$13.36

.SPRING (NT:45)

13268-47070

$4.34

VALVE ASSY, CHECK This part replaces 13520-35B00.

13520-02C01

$50.10

CLIP

13671-05A40

$3.71

CAP,OVER FLOW This part replaces 13680-19B01.

13680-19B02

$13.57

SCREW

13601-04148

$2.81

PLATE

13259-18900

$7.53

PLUNGER ASSY, STARTER

13439-18911

$51.93

O RING

13278-02330

$2.82

SCREW, DRAIN

13247-43200

$8.12

WASHER This part replaces 13249-43200.

13606-11D00

$3.37

CAP, TOP

13261-17400

$32.10

WASHER

13382-47010

$3.56

REFER TO FIG.9A (C-4) FOR

SPECIAL NOTE

Unavailable
