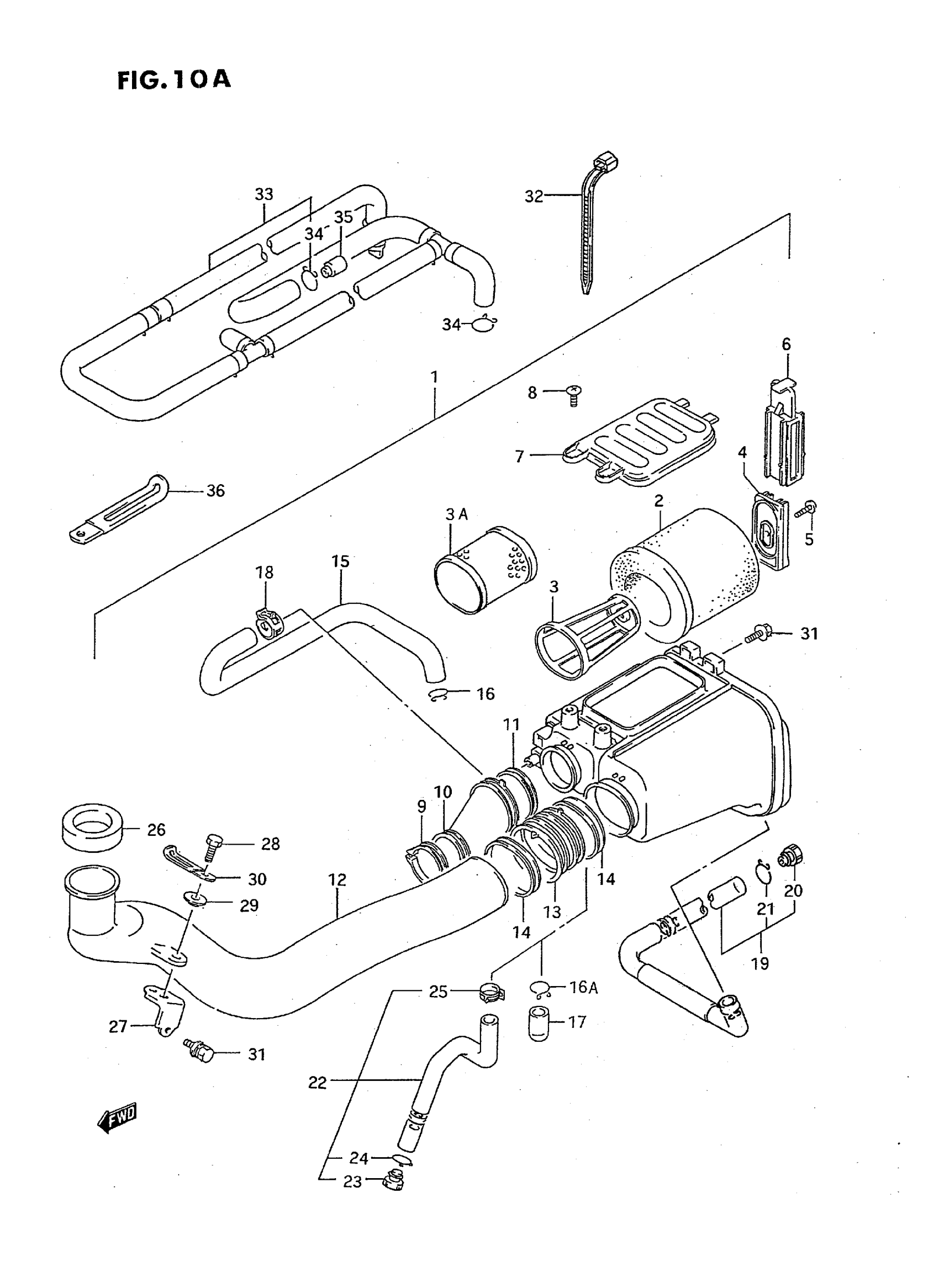

Suzuki LT-F250T (1996) AIR CLEANER (MODEL M/N/P/R/S/T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 13700-19B55.

13700-39D01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R/S This part replaces 13700-19B56.

13700-39D01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T; Includes Item(s) 1A - 30 This part replaces 13700-39D00.

13700-39D01

Unavailable

1A

CASE, AIR CLEANER | MODEL R/S

13720-19B80

Unavailable

2

FILTER

13781-19B00

$27.40

3

HOLDER | MODEL M/N/P/R/S This part replaces 13790-19B00.

13810-39D00

$24.39

3A

HOLDER | MODEL T

13810-39D00

$24.39

4

GUIDE, SLIDER

13797-19B00

$3.56

5

SCREW This part replaces 02142-05163.

02142-0516A

$1.49

6

SLIDER

13798-33400

$10.28

7

CAP

13750-19B00

$16.13

8

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

9

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

10

TUBE,OUTLET This part replaces 13881-19B20.

13881-19B21

$15.10

11

..CLAMP

09402-60208

$5.11

12

TUBE, INLET This part replaces 13891-19B11.

13891-19B12

$100.02

13

JOINT

13889-19B01

$14.20

14

CLAMP

13826-19B00

$7.97

15

TUBE, BREATHER

13853-19B00

Unavailable

16

CLIP

09401-14301

$2.35

16A

CLIP | MODEL M/N/P

09401-14301

$2.35

17

.PLUG | MODEL M/N/P

13859-41B10

$7.38

18

CLIP This part replaces 13826-38B00.

09401-15407

$2.83

19

TUBE ASSY, DRAIN

13870-19B80

Unavailable

20

PLUG, DRAIN

13877-00190

$5.32

21

CLIP

09401-14301

$2.35

22

TUBE ASSY,DRAIN | MODEL T This part replaces 13870-39D00.

13870-39D01

Unavailable

23

PLUG | MODEL T

13877-00190

$5.32

24

CLIP | MODEL T

09401-14301

$2.35

25

CLIP | MODEL T This part replaces 09401-14402.

09401-14404

$2.28

26

CAP, INLET

13892-19B00

$13.92

27

BRACKET

13761-19B00

$6.38

28

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

29

SPACER

13838-02B00

$3.56

30

CLAMP

09404-06435

$3.68

31

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

32

CLAMP, DRAIN TUBE | MODEL T

09407-14403

$2.26

33

TUBE ASSY,BREAT | OPT,MODEL P/R/S/T; Includes Item(s) 34 This part replaces 13850-19B81.

13850-19B82

$121.37

34

CLIP | OPT,MODEL P/R/S/T

09401-14301

$2.35

35

CHECK VALVE | OPT,MODEL P/R/S/T

13860-19B80

Unavailable

36

CLAMP(L:80) | OPT,MODEL P/R/S/T This part replaces 09404-06433.

09404-06036

$1.74
