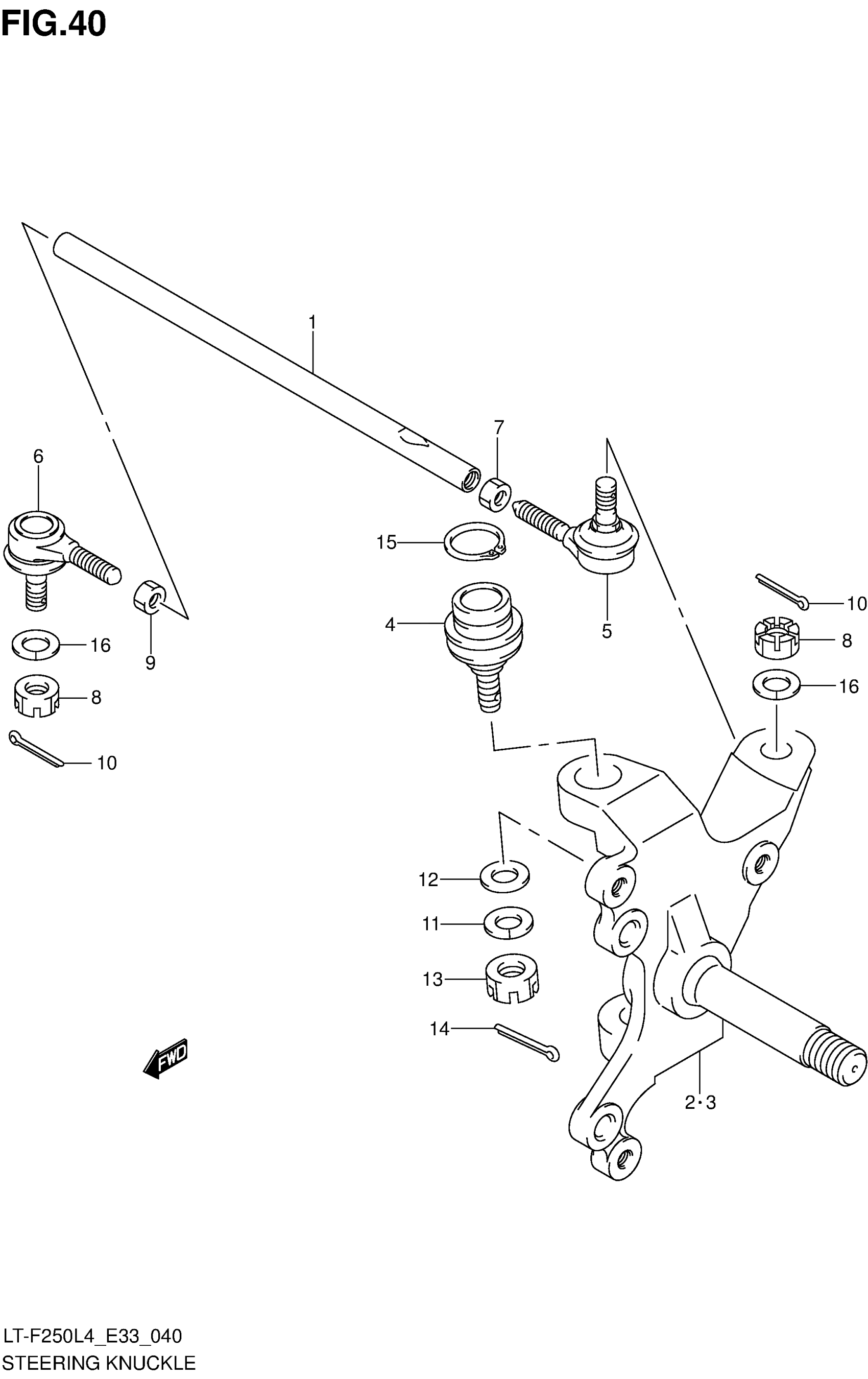

Suzuki LT-F250L4 (2014) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-05G00

$26.38

2

KNUCKLE, STEERING RH

51230-05G20

$303.03

3

KNUCKLE, STEERING LH

51240-05G20

$303.03

4

END, KNUCKLE STEERING UPPER

51210-31G10

$65.76

5

ROD, END RH

51260-21G00

$66.46

6

ROD, END LH

51270-21G00

$66.46

7

NUT, TIE-ROD RH

51283-21G00

$4.17

8

NUT

08314-4010A

$2.71

9

NUT | LH

09140-10027

$1.49

10

COTTER PIN

04111-2020A

$1.49

11

LOCK WASHER

09162-10010

$3.72

12

WASHER

08322-0110A

$1.84

13

NUT

08314-4010A

$2.71

14

COTTER PIN

04111-2020A

$1.49

15

CIRCLIP

08331-31309

$2.57

16

LOCK WASHER

09162-10010

$3.72
